RiverRidge 16-024 Aassembly Instructions

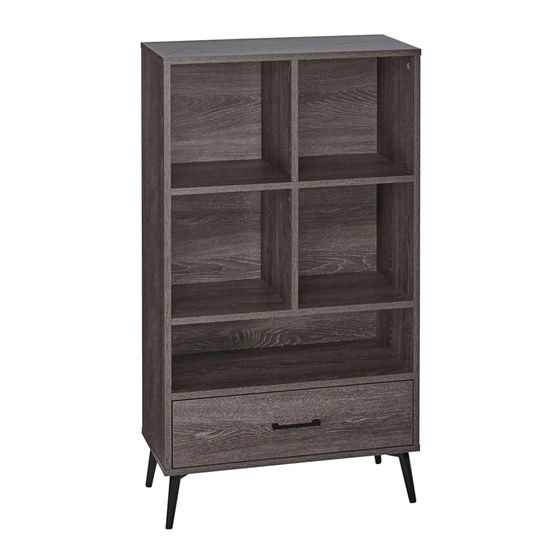

Woodbury storage cabinet with cubbies and drawer
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
®
RiverRidge
Woodbury Storage Cabinet
with Cubbies and Drawer
ITEM #: 16-024
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 16-024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge 16-024

Summary of Contents for RiverRidge 16-024

  • Page 1 RiverRidge Woodbury Storage Cabinet with Cubbies and Drawer ITEM #: 16-024 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER CUBBY AND TOP BOARD AND 10 POUNDS PER DRAWER FOR A TOTAL OF 130 POUNDS. DO NOT LOAD CUBBIES OR TOP BOARD WITH MORE THAN 20 POUNDS OR DRAWER WITH MORE THAN 10 POUNDS. OVERLOADING WITH MORE THAN 20 POUNDS PER CUBBY OR TOP BOARD OR 10 POUNDS PER DRAWER MAY CAUSE SHELF TO TIP FROM WALL AND CAUSE DAMAGED TO THE SHELF OR SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Divider Board 2PCS Top shelf Middle Shelf Open Shelf Bottom Board Left Side Panel Right Side Panel Upper Back Board Middle Back Board Lower Back Board 4PCS Metal Leg Drawer Front Board Drawer Left Side Board Drawer Right Side Board Drawer Back Board Drawer Bottom Board...
  • Page 4 PART DESCRIPTION 24PCS Cam Bolt 20PCS Cam Lock 4PCS Wood Dowel 4PCS Screw (4x35mm) 8PCS Machine Screw (6x30mm) 8PCS Washer Drawer Slide (Attach to Left Side Panel) Drawer Slide (Attach to Drawer Left Side) Drawer Slide (Attach to Right Side Panel) Drawer Slide (Attach to Drawer Right Side) 14PCS Screw (3x12mm)
  • Page 5 STEP 1 1. Screw 6 cam bolts (A) into cam bolt holes on left side panel (7). 2. Attach drawer slides (G) to left side panel (7) by inserting 4 screws (K) through holes on drawer slides (G), then tighten to left side panel (7). STEP 2 1.
  • Page 6 STEP 4 1. Screw 4 cam bolts (A) into cam bolt holes on drawer front board (13). 2. Attach handle (M) to drawer front board (13) by inserting 2 machine screws (N), then tighten to handle (M). STEP 5 1. Attach drawer left side board (14) to drawer back board (16) by inserting 2 screws (S) through holes on drawer left side board (14), then tighten to drawer back board (16).
  • Page 7 STEP 6 1. Slide drawer bottom board (17) into grooves on drawer left side board (14), drawer right side board (15) and drawer back board (16). 2. Attach drawer front board (13) to drawer left side board (14), drawer right side board (15) and drawer bottom board (17) by inserting 4 cam bolts (A) into cam lock holes on drawer left side board (14) and drawer right side board (15) and make sure drawer bottom board (17) is in groove on drawer front board (13).
  • Page 8 STEP 8 1. Attach top shelf (3) to divider board (2) by inserting 2 screws (S) through holes on top shelf (3), then tighten to secure divider board (2). STEP 9 1. Attach another divider board (2) to top shelf (3) by inserting cam bolts (A) into cam lock holes on divider board (2).
  • Page 9 STEP 10 1. Attach pre-assembled top shelf (3) and middle shelf (4) to left side panel (7) by inserting cam bolts (A) into cam lock holes on top shelf (3) and middle shelf (4). 2. Insert 4 cam locks (B) into cam lock holes on top shelf (3) and middle shelf (4), then rotate clockwise to secure cam bolts in place.
  • Page 10 STEP 12 1. Insert 4 wood dowels (C) into wood dowel holes on left side panel (7) and right side panel (8). 2. Attach bottom board (6) to left side panel (7) and right side panel (8) by inserting wood dowels (C) into wood dowel holes on bottom board (6).
  • Page 11 STEP 14 1. Attach top board (1) to left side panel (7), right side panel (8) and divider board (2) by inserting cam bolts into cam lock holes on left side panel (7), right side panel (8) and divider board (2). 2.
  • Page 12 STEP 16 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (P). Move cabinet away from wall and screw 2 plastic anchors (R) into wall on pencil marks.

  • Page 13: Care Instructions

    STEP 17 1. Slide drawer into cabinet. ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions.
  • Page 14 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
