ASSEMBLY INSTRUCTIONS
®
RiverRidge

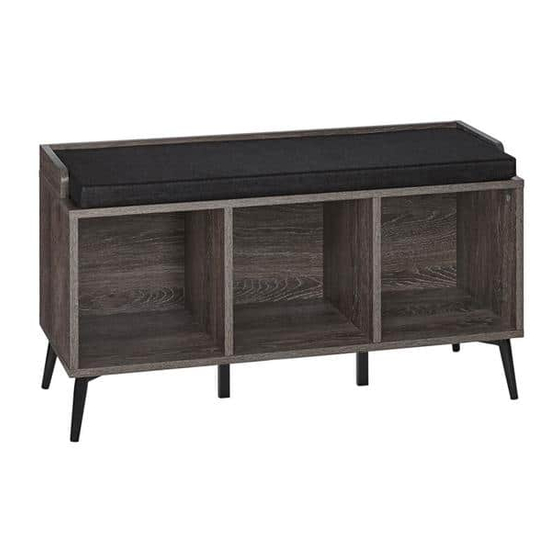

Woodbury Storage Bench
with Cubbies
ITEM #: 16-026
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge Woodbury 16-026
Summary of Contents for RiverRidge Woodbury 16-026
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Woodbury Storage Bench with Cubbies ITEM #: 16-026 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF FOR TOTAL OF 60 POUNDS AND BENCH SEATING WEIGHT CAPACITY IS 200 POUNDS. DO NOT LOAD SHELVES WITH MORE THAN 20 POUNDS OR SEATING WITH MORE THAN 200 POUNDS. OVERLOADING WITH MORE THAN 20 POUNDS PER SHELF OR 200 POUNDS SEATING MAY CAUSE DAMAGED TO THE SHELF OR SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Rail Board Right Rail Board Back Rear Board Bottom Board Left Side Panel Right Side Panel 2PCS Divider Board Back Board Cushion 4PCS Metal Leg Middle Support Leg... - Page 4 PARTS LIST NO PART QTY DESCRIPTION Cam Bolt 6PCS Cam Lock 6PCS Wood Dowel (8x30mm) 22PCS Screw(4x35mm) 5PCS Screw (4X35mm) 4PCS Machine Screw (6x30mm) 8PCS Machine Screw (6X10mm) 2PCS Shim 8PCS TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY TOOL NEEDED FOR SECURING TO WALL: POWER DRILL (NOT INCLUDED) To order replacement parts at no cost to you, email customer.service@ssi-rr.com,...
- Page 5 STEP 1 1. Screw 2 cam bolts (A) into pre-threaded holes on left rail board (2) and right rail board (3). 2. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). STEP 2 1. Insert 1 wood dowel (C) into wood dowel hole on left rail board (2). 2.
- Page 6 STEP 3 1. Insert 4 wood dowels (C) into wood dowel holes on left rail board (2), right rail board (3) and rear rail board (4). 2. Attach top board (1) to left rail board (2), right rail board (3) and rear rail board (4) by inserting wood dowels (C) into wood dowel holes on top board (1).
- Page 7 STEP 5 1. Slide back board (9) into grooves on left side panel (6), right side panel (7) and top board (1). 2. Insert 8 wood dowels (C) into wood dowel holes on left side panel (6), right side panel (7) and 2 divider boards (8).
- Page 8 STEP 7 1. Place cushion (10) on cabinet. ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions.
- Page 9 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com ®...
