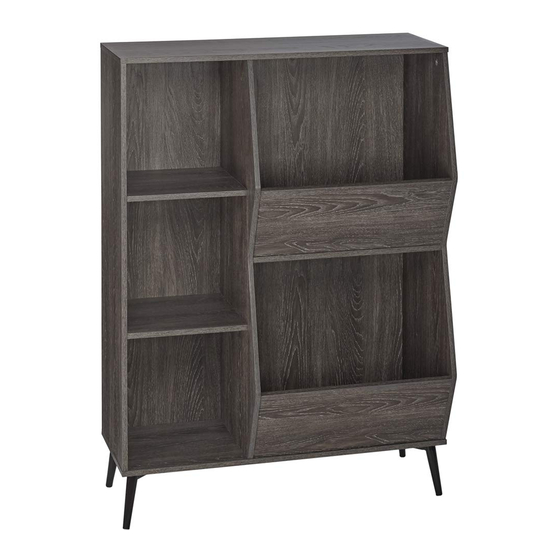

Storage cabinet with cubbies and veggie bins
Hide thumbs Also See for Woodbury 16-031:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
®
RiverRidge
Woodbury
Storage Cabinet with Cubbies and Veggie Bins
ITEM #: 16-031
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Woodbury 16-031 and is the answer not in the manual?

Questions and answers

Related Manuals for RiverRidge Woodbury 16-031

Summary of Contents for RiverRidge Woodbury 16-031

  • Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Woodbury Storage Cabinet with Cubbies and Veggie Bins ITEM #: 16-031 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER TOP BOARD AND PER SHELF FOR A TOTAL OF 120 POUNDS. DO NOT LOAD SHELVES WITH MORE THAN 20 POUNDS. OVERLOADING WITH MORE THAN 20 POUNDS PER SHELF OR 120 POUNDS TOTAL MAY CAUSE SHELF TO TIP FROM WALL AND CAUSE DAMAGED TO THE SHELF OR SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board 2PCS Left Shelf Right Shelf Front Panel 2PCS Left Side Panel Right Side Panel Middle Support Panel Bottom Board Right Back Board Left Back Board 4PCS Metal Leg...
  • Page 4 PARTS LIST PART DESCRIPTION Cam Bolt 26PCS Cam Lock 26PCS Wood Dowel (6x30mm) 6PCS Screw (4X35mm) 6PCS Machine Screw (6x30mm) 8PCS Shim 8PCS Screw (2.5x10mm) 24PCS Bracket 2PCS Screw (2.5x14mm) Plastic Anchor Plastic Lock Strap Screw (4x30mm) TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY TOOL NEEDED FOR SECURING TO WALL: POWER DRILL (NOT INCLUDED) To order replacement parts at no cost to you, email customer.service@ssi-rr.com,...
  • Page 5 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on left side panel (5). 2. Screw 6 cam bolts (A) into pre-threaded holes on right side panel (6). STEP 2 1. Screw 6 cam bolts (A) into pre-threaded holes on top board (1). 2.
  • Page 6 STEP 4 1. Attach middle support panel (7) to right shelf (3) and 2 front panels (4) by inserting cam bolts (A) into cam lock holes on right shelf (3) and 2 front panels (4) 2. Insert 6 cam locks (B) into cam lock holes on right shelf (3) and 2 front panels (4), then rotate clockwise to secure cam bolts in place.
  • Page 7 STEP 6 1. Insert 6 wood dowels (C) into wood dowel holes on bottom board (8). 2. Attach bottom board (8) to left side panel (5), right side panel (6) and middle support panel (7) by inserting wood dowels (C) into wood dowel holes on left side panel (5), right side panel (6) and middle support panel (7).
  • Page 8 STEP 8 1. Attach top board (1) to left side panel (5), right side panel (6) and middle support panel (7) by inserting cam bolts (A) into cam lock holes on left side panel (5), right side panel (6) and middle support panel (7).
  • Page 9 STEP 10 1. Place drawing with hole position in desired location on wall and drill hole on wall. 2. Insert 1 plastic anchor (J) into hole on wall. 3. Attach 1 bracket (H) to plastic anchor (J) by inserting 1 screw (L) through hole on bracket (H), then tighten to plastic anchor (J).
  • Page 10 Cabinet! ® Thank you for purchasing this RiverRidge Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com ®...
  • Page 11 ASSEMBLY INSTRUCTIONS RiverRidge ® Kids Two Piece Folding Storage Bin ADULT ASSEMBLY REQUIRED...
  • Page 12 Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge ®...
