ASSEMBLY INSTRUCTIONS
RiverRidge

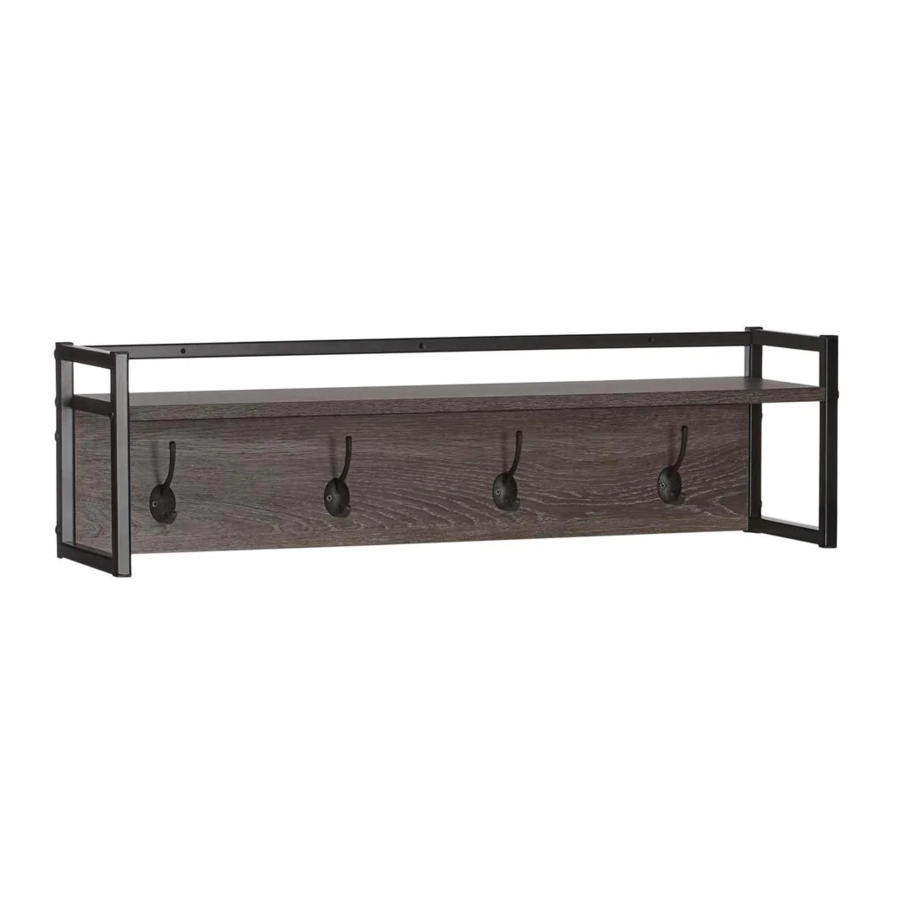

Afton 4-Hook Metal Frame Wall Shelf
®
ITEM #:16-034
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge 16-034
Summary of Contents for RiverRidge 16-034
- Page 1 RiverRidge Afton 4-Hook Metal Frame Wall Shelf ® ITEM #:16-034 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 10 POUNDS PER SHELF AND 5 POUNDS PER HOOK OR A TOTAL OF 30 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 10 POUNDS AND EACH HOOK WITH MORE THAN 5 POUNDS OR 30 POUNDS TOTAL WEIGHT.
- Page 3 DESCRIPTION Shelf Back Board Back Cross Bar 2PCS Side Frame...
- Page 4 PARTS LIST PARTS DESCRIPTION 2PCS Machine Screw (6x35mm) 8PCS Machine Screw (6x50mm) 8PCS Coat Hook 4PCS Screw (3x12mm) 8PCS Plastic Anchor 3PCS Screw (4x45mm) 3PCS Wood Dowel 2PCS Wall Mounting Paper Template TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call...
- Page 5 STEP 1 1. Insert 4 nuts (C) into holes on shelf (1). 2. Attach 1 side frame (4) to shelf (1) and back cross bar (3) by inserting 1 machine screw (A) and 2 machine screws (B) through holes on side frame (4), then tighten to shelf (1) and back cross bar (3).
- Page 6 STEP 3 1. Attach 1 hook (D) to back board (2) by inserting 2 screws (E) through holes on hook (D), then tighten to back board (2). 2. Repeat above step for another 3 hooks (D). STEP 4 OPTION #1 OPTION #2 DRYWALL DRYWALL...
- Page 7 ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
- Page 8 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
