Jordi Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking nut
x16
bolt
dowel
x16
E
F
small screw
x8
L + R
x2

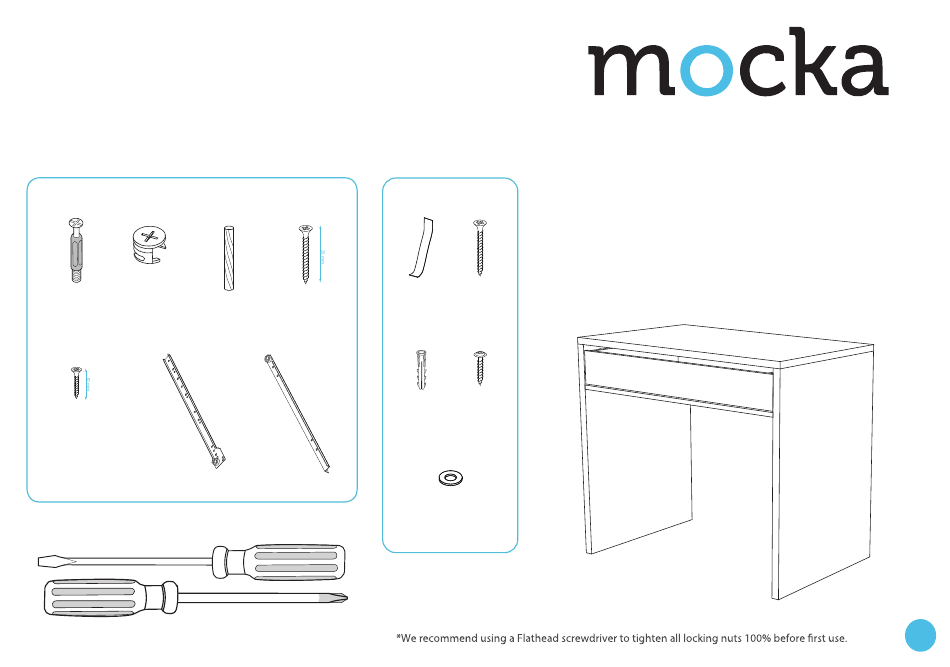

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
long screw
x4
x8
G
L + R
x2
WARNING:
W
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthquake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please
note that different wall materials may require different fixing devices from
those supplied.
Wall
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x1
W
l l a
t S
a r
p
Any furniture that is not anchored to a wall has the potential to
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jordi Desk
Summary of Contents for Mocka Jordi Desk
- Page 1 Jordi Desk Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Jordi Desk Assembly Instructions Screw bolts (A) into holes in panels [1] and [2]. Slot together with panel Attach 2x slide rails (F) in place on panels [1] and [2] using 2x small [3] and [4] as shown. Place 4x locking nuts (B) into in both panel [3] and screws (E) in each rail bracket.
- Page 3 Jordi Desk Assembly Instructions Screw in 4x bolts (A) and insert 4x dowels (C) into holes in top panel Tighten all nuts with a screwdriver.The desk unit is all done. Ensure [5]. Slot together with the rest of the structure. Place locking 4x locking screws are tight before proceeding with the drawer assembly.
- Page 4 Jordi Desk Assembly Instructions Drawers Attach side panels [6] and [7] to back panel [8] using 4x long screws (D) Slide the base panel [9] into place in the grooves in side and back in the holes provided and tighten with a screwdriver.
- Page 5 Jordi Desk Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Screw 4x bolts (A) into the front panel [10] and attach to the side panels Finally, attach 2x rail components (G) to both left and right side of the using 4x locking nuts (B). Tighten with a screwdriver.
- Page 6 Jordi Desk Assembly Instructions Lift and slide the completed drawer into place on the rails in the desk Ensure the drawer can easily slide open and close. unit as shown. mocka.co.nz | mocka.com.au...
- Page 7 Jordi Desk Assembly Instructions Safety Strap Strap Washer wall anchor wall screw Attach safety strap (W) to the top of the back side of the unit using Move the unit into the desired location up against a wall. Use a drill to screw (Y).
