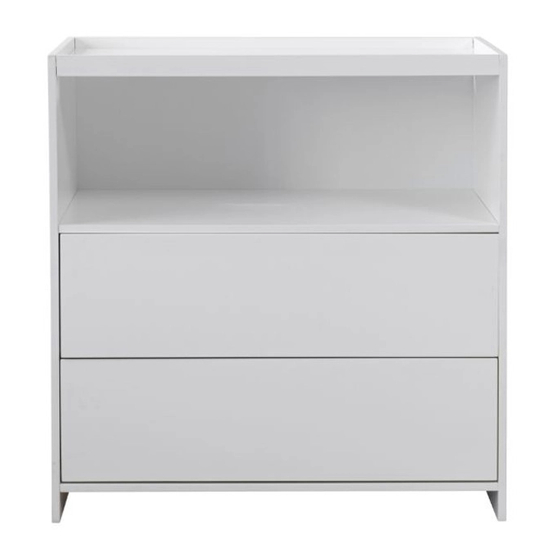

Jersey Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
locking
x28
nut x28
E
F
small
long
screw x8
screw x12

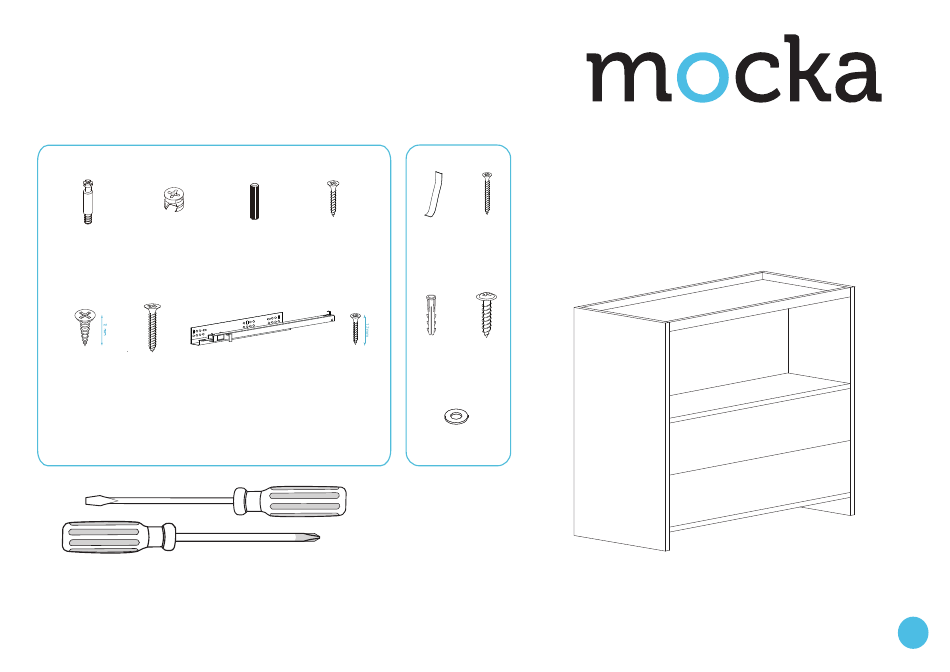

Hardware Supplied
Phillips & Flathead screwdrivers and hammer
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
D
dowel
long screw
x20
x4
G
H
L + R
small
slide rail
screw x22
x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100%
before first use.
1
