Jesse Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowel
screw
x26
x12
G
H
CR runner tracks
DL runners
x3
x3
M
N
wedge
screw
shelf plug
x12
x12
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
bolt
locking nut
small screw
x41
x41
x30
I
J
DR runners
long screw
x3
x10
O
P
Q
hinge
small screw
x8
x4
x24

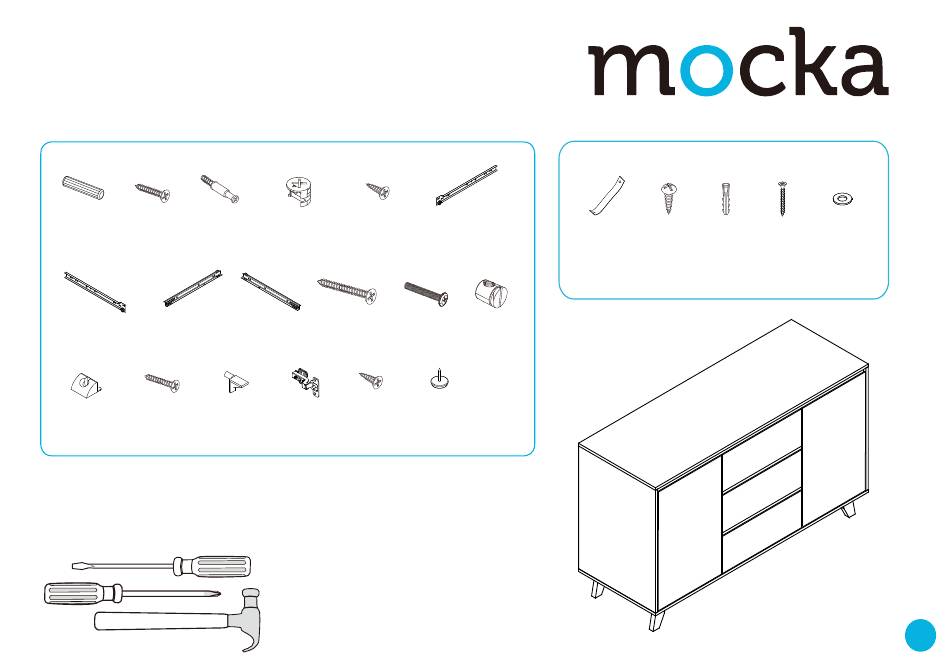

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
CL runner tracks
x3
K
L
cam bolt
cam nut
x4
x4
R
plastic
glide x5
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jesse Buffet
Summary of Contents for Mocka Jesse Buffet
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3xCR runner tracks (G) to panel [6] using 9x small screws (E). screws (Q). Tighten with a screwdriver. Insert 4x bolts (C) to the panels [5] and [6]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [5] and [6] to panels [7] with 4x dowels (A) ,and Insert 2x bolts (C) to the panels [2] and [3]. Tighten with a screwdriver. secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Insert 9x bolts (C) and 10x dowels (A) to the panels [1]. Attach panels [2] and [3] to panel [8] and secure with 2x locking nuts (D) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panels [9] and [10] between the grooves of panels [1], [2] ,[3], [5] 9x locking nuts (D) and tighten with a screwdriver. and [6] to form the back of the unit, as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach bottom panel [4] to the rest of the unit with 8x dowels (A) and tighten with a screwdriver. secure with 8x long screws (J) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Insert 10x bolts (C) into panel [4]. Tighten with a screwdriver. Insert 2x dowels (A) and 2x bolts (C) into panels [12] and [13].Attach panel [11] , [12] and [13] using 2x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach leg panels to bottom panel [4] with 10x locking nuts (D). Tighten secure with 4x cam nuts (L). Tighten with a screwdriver. with a screwdriver. Attach 5x plastic glides (R) into the panels with a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Insert 4x bolts (C) into panel [15]. Tighten with a screwdriver. Attach panels [16] and [17] to panel [15] and secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Slide panel [18] along the grooves between the side panels [16] and Attach panels [16], [17] and [19] with 4x screws (B). Tighten with [17] to form the base of the drawer. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 Attach slide rails (I) and (H) to panels [17] and [16] with 4x small screws (E). Tighten with a screwdriver. Complete the other two other end of the 4x hinges (P) with 16x screws (Q) as shown. drawers. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 Insert 8x shelf plugs (O) into panels [2], [5], [6] and [3] as shown. Insert the completed drawer into the main unit as shown, ensuring Insert the shelf panels [21] and balance on top of the plugs. they slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 13 Attach 2x safety strap (V) to the top of the back side of the unit [10] as shown, and secure with 12x small screws (N). Tighten as shown using 2x washer (Z) and 2x screw (W). Tighten with a with a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 14 (V). Fasten to the wall using 2x washer (Z), 2x wall plug (X) and 2x screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
