Jack Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
screw
x8
x19
x8
J
H
I
slide
slide
cam bolt
rail x3
rail x3
x8
O
P
Q
hinge x4
small locking
small bolt
nutx15
x15
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
slide
screw
rail x3
nut x8
x40
K
L
M
wedge
screw
handle
x8
x
5
x8
R
S
shelf
long
screw x24
plugs x8
screw x10

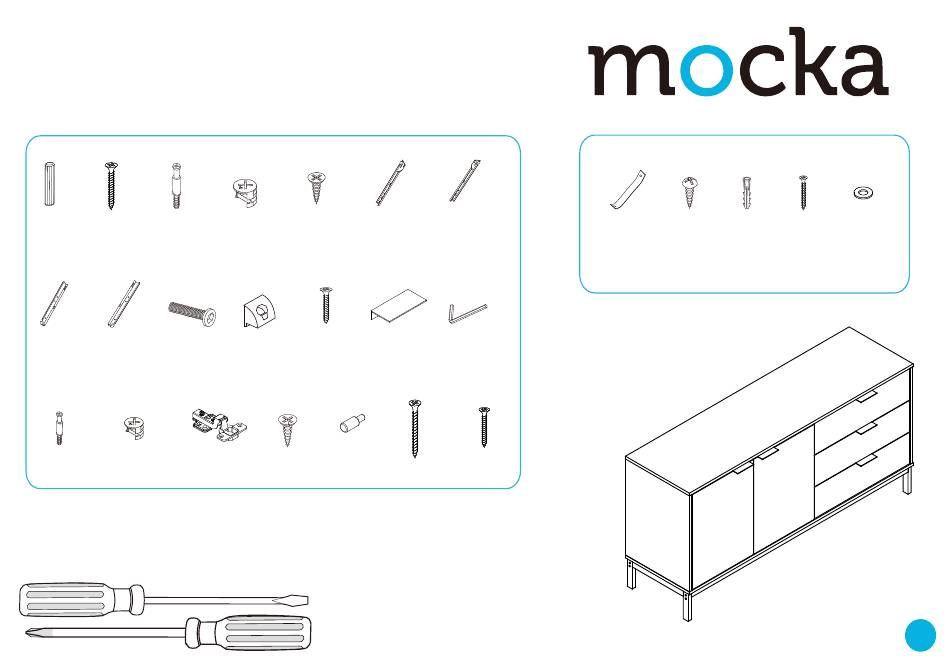

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
slide
rail x3
N
allen key
x1
T
U
screw
x18
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jack Buffet
Summary of Contents for Mocka Jack Buffet
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rail (F) to panel [5] and secure with 9x screws (E). Insert 8x bolts (C) into panel [1]. Tighten with a screwdriver. Attach 3x slide rail (G) to panel [6] and secure with 9x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panel [3], [4], [5] and [6] to panels [1] with 8x dowels (A), and Insert connector [20] to join panels [8]. secure with 8x locking nuts (D) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach bottom panel [2] to the rest of the unit using 8x dowels (A). panels [3], [4], [5] and [6]. Secure with 8x screws (B) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [9] to the panels [10] with 8x cam bolts (J) and tighten with Attach leg panels to the bottom panel [2] with 10x screws (T), and tighten an Allen key (N). with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert the shelf panels [11] and balance on top of the plugs. screws (R). Attach 2x handles (M) to door panels [12] and [13] and secure with 4x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Secure door panels [12] and [13] to the main unit by attaching the other end Insert 5x small bolt (O) into panel [14]. Tighten with a screwdriver. of the hinges (Q) with 16x screws (R) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Slide panel [18] along the grooves between the side panels [15], [16] and secure with 5x small locking nuts (P). Tighten with a screwdriver. [14] to form the base of the drawer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach panels [15], [16] and [19] with 6x screws (U).Tighten with a screwdriver. Attach slide rails (I) and (H) to panels [16] and [15] with 4x small screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach handle (M) to panel [14] with 2x screws (E).Tighten with a screwdriver. Insert the completed drawer into the main unit as shown, ensuring they slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 1x washer (Z) and 1x screw (W).Tighten with a using 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is screwdriver. balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
