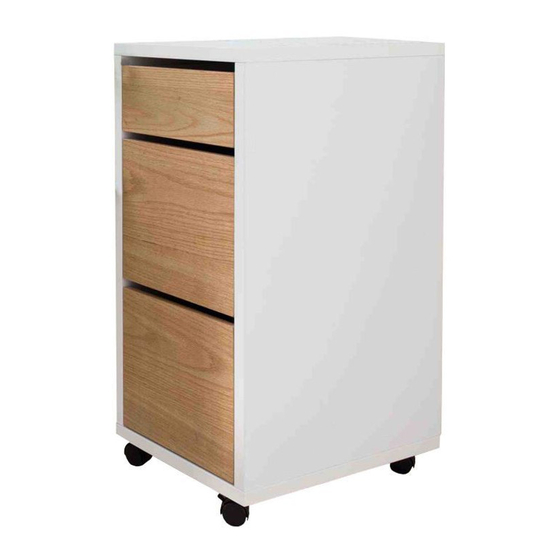

Jordi Drawers
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking
nut x20
bolt
x20
F
G
wheel
wheel
x2
x2
Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
D
C
E
screw
screw
dowel
x40
x12
x8
I
H
slide
slide
rail x6
rail x6
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Jordi Drawers
Summary of Contents for Mocka Jordi Drawers
- Page 1 Jordi Drawers Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. locking screw screw dowel nut x20 bolt wheel wheel slide slide rail x6 rail x6 Hardware Supplied *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
- Page 2 Jordi Drawers Assembly Instructions Insert 4x bolts (A) into panel [1]. Attach 4x wheels (F) and (G) to the Attach 4x slide rails (H) to panels [3] and [4] and secure with 8x screws underside of panel [2] with 16x screws (D) as shown. Tighten with a (D) as shown.
- Page 3 Jordi Drawers Assembly Instructions Insert 4x dowels into panel [2] and attach panels [3] and [4] as shown. Attach the final 2x slide rails (H) to the bottom of panels [3] and [4] and Secure with 4x locking nuts (B) and tighten with a screwdriver. Slide secure with 4x screws (D) as shown.
- Page 4 Jordi Drawers Assembly Instructions Drawers x2 Insert 4x dowels (C) into the ends of panels [3] and [4] and attach the top Insert 4x bolts (A) into panel [14]. Attach side panels [11] and [12] and secure panel [1]. Secure with 4x locking nuts (B) and tighten with a screwdriver.
- Page 5 Jordi Drawers Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers x1 Insert 4x bolts (A) into panel [8]. Attach side panels [6] and [7] and secure Insert the completed drawers into the unit, ensuring they slide easily with 4x locking nuts (B). Slide panel [9] between the side panels to form the along the rails.
