Biamp TesiraFORTE X Series Manual

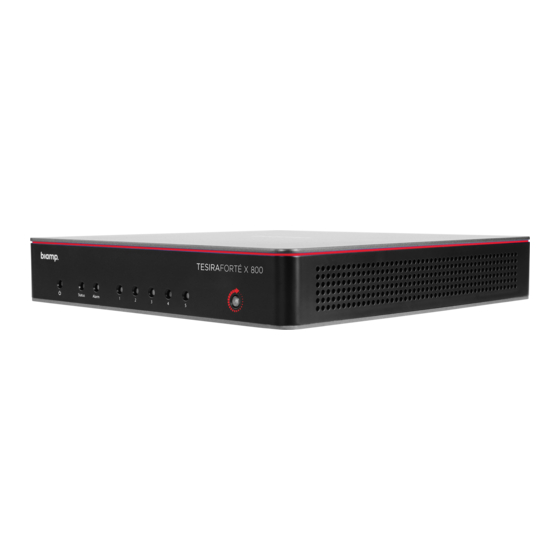

TesiraFORTÉ X
The TesiraFORTÉ X is the next generation of Tesira DSP processing and is introduced in conjunction with Tesira 4.0
software and firmware. TesiraFORTÉ X combines powerful elements of multiple previous Tesira devices in one product
for quick and easy integration in medium to large conference spaces.
The TesiraFORTÉ X 400/800/1600
connection points. With 4, 8, and 16 channels of Acoustic Echo Cancelation (AEC) respectively, users can choose the
model that meets the number of microphones required for the room.
TesiraFORTÉ X is designed to be used primarily with Biamp's beam-forming microphones, PoE amplifiers and
speakers. A system including these elements and a UC-room system, display and camera will provide a complete
technology solution for a UC-enabled conference room.
The typical function of the TesiraFORTÉ X is to process local Biamp microphone input and speaker output signals in
support of audio-only and audio/video conference calls from dedicated conference rooms, but TesiraFORTÉ X can also
be custom programmed for many other applications.
TesiraFORTÉ X offers installers two discrete modes of operation. The default behavior allows single-button press auto-
configuration assisted by
customize the device signal paths a la a traditional Tesira DSP device.
TesiraFORTÉ X discovery and connection can be done through the
Tesira software (version 4.0 and higher).
Models
There are 3 TesiraFORTÉ X models supporting various densities of AEC processing depending on your requirements.
All are externally physically identical aside from their model name. The same power supply model is used for all 3 units.
• TesiraFORTÉ X 400 has 4 channels of AEC,
supporting up to 4 Parlé microphones
• TesiraFORTÉ X 800 has 8 channels of AEC,
supporting up to 8 Parlé microphones
• TesiraFORTÉ X 1600 has 16 channels of AEC,
supporting up to 16 Parlé microphones
When using Biamp Launch auto-configuration
1600. Up to 8 channels of amplification are supported on all models when using Biamp Launch auto-configuration.
These limitations do not apply to manually configured TesiraFORTÉ X.
Copyright 2013-2020 Biamp Systems
products are conference room DSPs featuring multiple network and analog audio
Biamp Launch. The second option allows users to manually configure and completely
a maximum of 8 Parlé microphones are supported on TesiraFORTÉ X
Biamp Discovery app
http://support.biamp.com/
or using Biamp
1
