Biamp TesiraFORTÉ AVB VT4 System Design Manual

SYSTEM DESIGN GUIDE

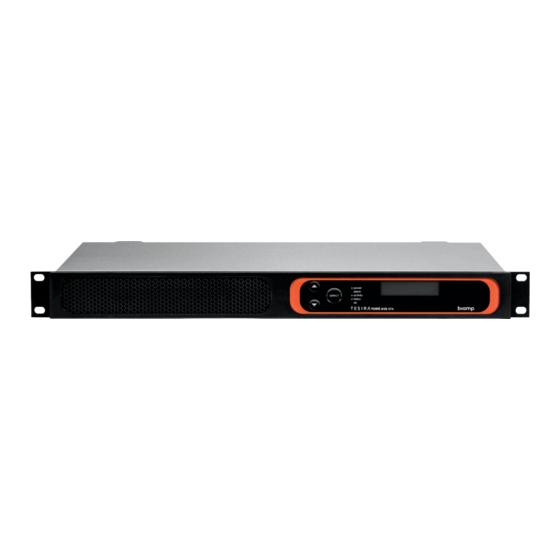

TesiraFORTÉ® AVB VT4 AND HD-1 DIALER
In conference rooms large and small, you no longer have to yell into a phone at the center of the table to be
heard. Our new Beamtracking™ microphones actively track and intelligently mix conversations from around
the table, allowing far-end conference participants to experience the conversation naturally. Each pendant
microphone uses only one channel of AEC, leaving two inputs available on the TesiraFORTÉ® AVB VT4 for
local program audio. The VT4 also supports VoIP, POTS, and USB conferencing for total flexibility, creating a
superior audio experience that leaves everyone on the call feeling heard.

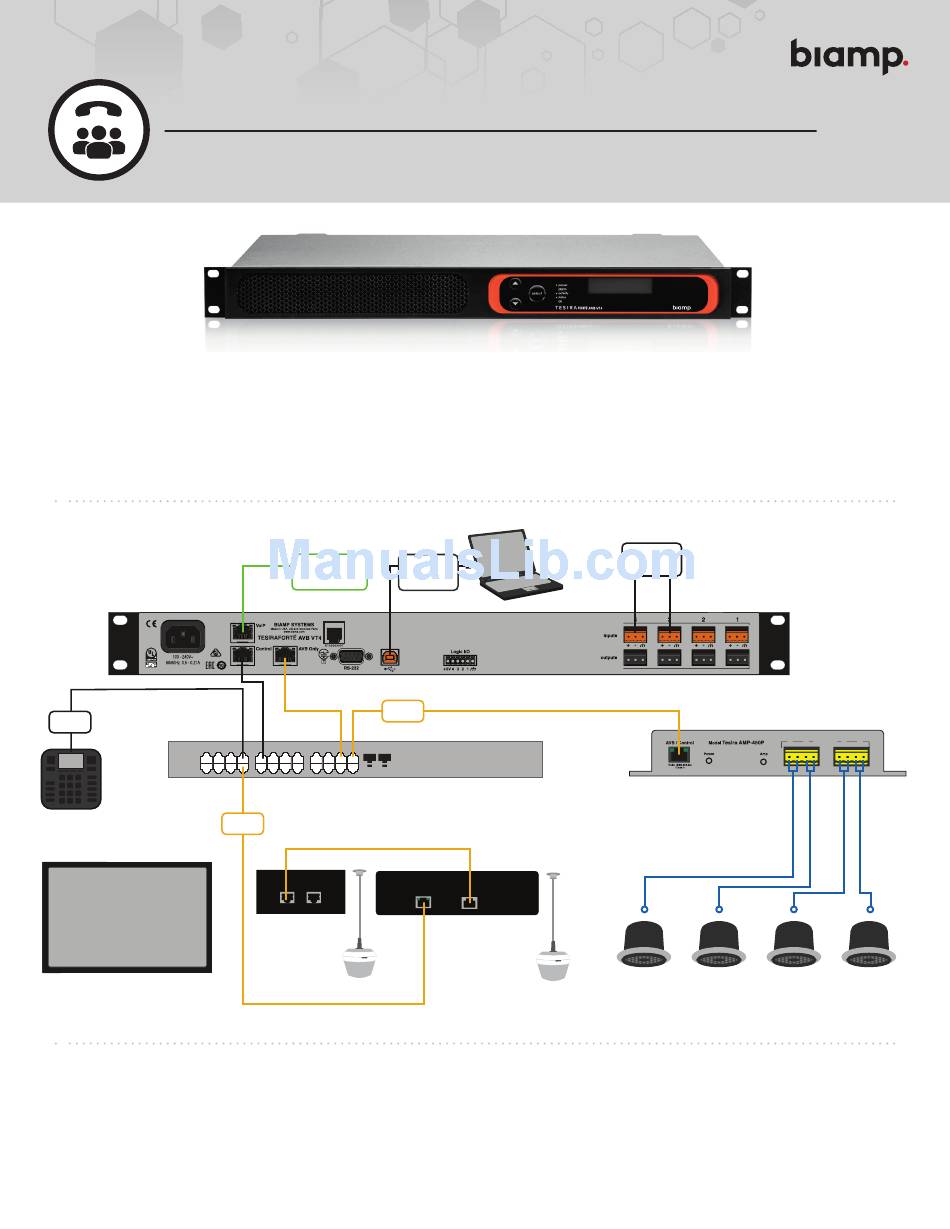

CONFERENCE ROOM EXAMPLE

TesiraFORTÉ
AVB VT4
PoE
HD-1
Dialer
LCD Monitor

FEATURES/BENEFITS

– Three 120° Beamtracking
zones simultaneously
identify and steer towards
talkers, bringing conference
participants into the
conversation
VoIP
Network
Extender
Telephone Line
PoE+
AVB Network Switch
PoE+
Tesira TCM-1 EX
Microphone
– The AMP-450P is powered
by PoE+, with internal power
draw protection and a burst
mode to handle peak signals
CONFERENCE ROOM
PC running
soft codec
USB
Tesira TCM-1
Microphone
– Beamtracking mics track in
both azimuth (left-right) and
elevation (up-down) angles
BIAMP SYSTEM DESIGN GUIDE
Tesira TCM-1EX
Program
Audio
1 2
AMP-450P Amplifier
Ceiling Speakers
– All the DSP power of a
traditional TesiraFORTÉ,
without the unused I/O cost
| CONFERENCE ROOM
Outputs 4
3
