Parlé VBC 2800
Video Conferencing Bar
Installation & Operation Guide

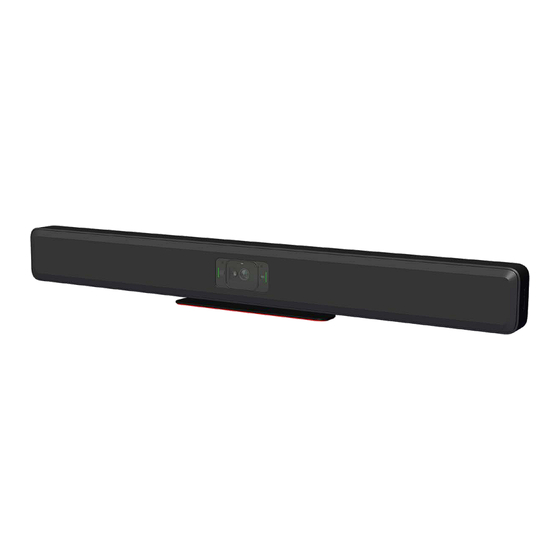

PRODUCT DESCRIPTION
Parlé VBC 2800 series model is an all-in-one conferencing
bar featuring Biamp Audio Intelligence to deliver premium
audiovisual experiences for small and medium conference
rooms.
Parlé VBC 2800 series bars have 3 mounting options:
• Table Mount - comes attached to the bar in the box
• Wall Mount Plate - (included) Allows the bar to be
permanently mounted to the wall (table stand must be
removed for attachment).
• PMA 2000-DM Display Mount (optional accessory)
- Allows the bar to be positioned above or below a TV,
Monitor, or other video device.
CONTENTS
• Parlé VBC 2800 series conferencing bar
• Table stand (attached)
• Wall bracket and hardware
A:
Model
VBC 2800 series
• USB-C cable
• 60 W Power supply with cord
• Audio In/Out Y Cable
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
DRAFT
Wall and Table mounting options included
YOU WILL NEED
• Phillips Screwdiver
• Download Biamp Camera Controller software to
adjust camera settings and manage firmware updates
• Cornerstone Link:
Parl%C3%A9/Parl%C3%A9_Software_Firmware
https://support.biamp.com/
Wall Mount
W:
www.biamp.com
x4
Advertisement
Table of Contents
Related Manuals for Biamp Parle VBC 2800 Series
Summary of Contents for Biamp Parle VBC 2800 Series
- Page 1 YOU WILL NEED Parlé VBC 2800 series model is an all-in-one conferencing • Phillips Screwdiver bar featuring Biamp Audio Intelligence to deliver premium • Download Biamp Camera Controller software to audiovisual experiences for small and medium conference adjust camera settings and manage firmware updates rooms.
-
Page 2: Product Details
USB-C port, Rear but the host device must be able to supply 60W over USB-C. If the host device cannot provide 60W, the included Biamp auxiliary Connection ports power supply (PS-12-60) must be used. Table Stand DC Power In 3.5mm Port... - Page 3 Tabletop Installation The bar is shipped with the table mount attached. Clear an area on a table or stand. 1. Pull out and remove the back panel cover to expose the power connections. 2. Connect the USB-C cable and secure with the screw. Connect the other end to the host device.
- Page 4 Tabletop Installation (continued) 4. Reinstall the input cover, routing the cords through the opening at the bottom of the cover. 5. Position the bar facing the conference table / occupants, and remove the film covering the center glass. 6. Press the Launch button (location shown), and allow Launch to optimize the audio for the room.
-
Page 5: Wall Installation
Wall Installation Adjusting the Bar 1. Remove the table stand as shown. Reserve the (4) screws for • To rotate the bar up or down, reattachment to the wall plate. hold the bar on both sides of the plastic lens and apply equal 2. -
Page 6: Operation
• Cornerstone Link: https://support. Biamp Launch is the smart technology to optimize the audio for the room. biamp.com/Parl%C3%A9/ Pressing the Launch button customizes the audio coverage based on the room's Parl%C3%A9_Software_ characteristics. The LEDs on the front panel will flash red/green slowly until Firmware Lanuch is initiated, and then during the Launch process. - Page 7 Audio I/O specifics Parlé VBC 2800 Installation and Operation Guide page 7...
-
Page 8: Technical Drawings
[1.57"] [2.75"] 14.7 [0.58"] 215.0 [8.46"] WALL PLATE SIDE Side View above shows bar attached to wall mount CONTACT US Email: support@biamp.com Warranty: biamp.com/legal/warranty-information Web: support.biamp.com Safety & Compliance: biamp.com/compliance 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com 30MAY2024...
