Tesira HD-1 Dialer
®
Installation & Operation Guide

Product Description

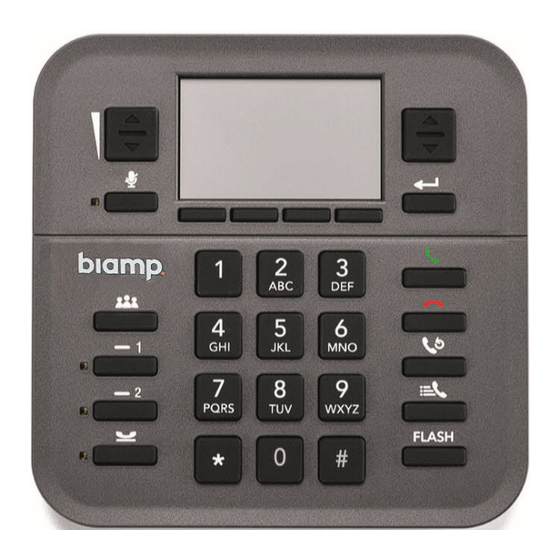

The Tesira HD-1 is a hardware dialer for Tesira audio DSPs. The
HD-1 is compatible with Tesira SERVER and SERVER-IO with
STC-2 or SVC-2 cards installed. The HD-1 is also compatible with
the following TesiraFORTÉ models:
TesiraFORTÉ TI
TesiraFORTÉ AVB TI
TesiraFORTÉ DAN TI
TesiraFORTÉ VI
TesiraFORTÉ AVB VI
TesiraFORTÉ DAN VI

Setup and Use

The Tesira software provides an intuitive interface for setup and programming
of the HD-1. The information supplied by this manual relates to physical
connections and device setup. For more details on software setup, please
consult the Tesira Help File.
All standard telephony functions, including dialing, the ability to answer and
make calls, mute, conference and redial are available from the HD-1, which
connects to a single VoIP or POTS line on a Tesira system. A second HD-1
cannot be assigned to a telephony line that's already being controlled by
another HD-1.

Installation

Install the unit away from heat sources, such as vents and radiators, and in
rooms with adequate ventilation. Ensure that air can circulate freely around
the unit. Do not exceed the maximum ambient operating temperature of 32°-
104° F (0° - 40°C).
TesiraFORTÉ VT
TesiraFORTÉ AVB VT
TesiraFORTÉ DAN VT
TesiraFORTÉ AVB VT4
TesiraFORTÉ DAN VT4
A: 9300 S.W. Gemini Drive Beaverton, OR 97008 USA

Default Network Configuration

The HD-1 by default uses a link-local (Auto) IP address. This allows the device
to receive its network configuration from a DHCP server. This enables the
HD-1 to be discovered by a Tesira SERVER-IO, SERVER or TesiraFORTÉ
device that also has default IP settings.
The default HD-1 hostname is "HD-1-" followed by its serial number. The
Network settings and hostname can be edited and assigned via Device
Maintenance in the Tesira software.
Tesira software provides programming of all remote functions, network setup,
device naming, and device maintenance.
Device information such as IP, MAC address and device serial number will be
displayed on the main screen when the device is un-configured or by pushing
the Select/Device Info button on the keypad.
