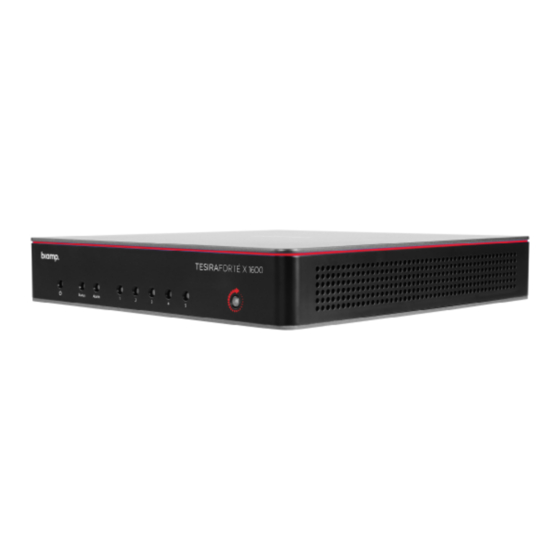

TesiraFORTÉ X
The TesiraFORTÉ X is the next generation of Tesira DSP processing and is introduced in conjunction with Tesira 4.0
software and firmware. TesiraFORTÉ X combines powerful elements of multiple previous Tesira devices in one product
for quick and easy integration in medium to large conference spaces.
The TesiraFORTÉ X
400/800/1600
connection points. With 4, 8, and 16 channels of Acoustic Echo Cancelation (AEC) respectively, users can choose the
model that meets the number of microphones required for the room.
TesiraFORTÉ X is designed to be used primarily with Biamp's beam-forming microphones, PoE amplifiers and
speakers. A system including these elements and a UC-room system, display and camera will provide a complete
technology solution for a UC-enabled conference room.
The typical function of the TesiraFORTÉ X is to process local Biamp microphone input and speaker output signals in
support of audio-only and audio/video conference calls from dedicated conference rooms, but TesiraFORTÉ X can also
be custom programmed for many other applications.
TesiraFORTÉ X offers installers two discrete modes of operation. The default behavior allows single-button press auto-
configuration assisted by
customize the device signal paths a la a traditional Tesira DSP device.
TesiraFORTÉ X discovery and connection can be done through the
Tesira software
(version 4.0 and higher).
Models
There are 3 TesiraFORTÉ X models supporting various densities of AEC processing depending on your requirements.
All are externally physically identical aside from their model name. The same power supply model is used for all 3 units.
• TesiraFORTÉ X 400 has 4 channels of AEC,
supporting up to 4 Parlé microphones
• TesiraFORTÉ X 800 has 8 channels of AEC,
supporting up to 8 Parlé microphones
• TesiraFORTÉ X 1600 has 16 channels of AEC,
supporting up to 16 Parlé microphones
When using
Biamp Launch auto-configuration
products are conference room DSPs featuring multiple network and analog audio
Biamp
Launch. The second option allows users to manually configure and completely
a maximum of 8 Parlé microphones are supported on TesiraFORTÉ X
Biamp Discovery app
or using
https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X
Updated: Thu, 01 Dec 2022 17:48:44 GMT
Biamp
Powered by
1
Advertisement
Table of Contents
Related Manuals for Biamp TesiraFORTE X
Summary of Contents for Biamp TesiraFORTE X
- Page 1 UC-enabled conference room. The typical function of the TesiraFORTÉ X is to process local Biamp microphone input and speaker output signals in support of audio-only and audio/video conference calls from dedicated conference rooms, but TesiraFORTÉ X can also be custom programmed for many other applications.
- Page 2 Upon completion of the auto-configuration process, a report card detailing the room’s acoustic performance before and after optimization plus the Biamp hardware manifest is available for viewing via a web browser and can be printed as a pdf.
- Page 3 1x1 speakerphone), VoIP, (5) 1G network ports including (4) ports offering PoE+, support for 128x128 audio channels on 64x64 streams of AVB between Biamp Tesira devices, 32x32 audio channels on 32x32 flows of Dante, (2) analog mic-line inputs with phantom power, (2) analog mic-line outputs, and (4) ports of GPIO. (Note that some hardware functions are only available when TesiraFORTÉ...
-
Page 4: Network Connectivity
Network discovery TesiraFORTÉ X does not have a front panel text display. Device IP discovery is done via a network connection to port 1 (P1) using the Biamp Discovery app Biamp Tesira software in all device modes. The latest... -
Page 5: Web User Interface
Converged port mode any port can be used for programming using Tesira software. Biamp Discovery can query the local network for auto-configurable TesiraFORTÉ X and Devio SCX devices and will return a list of discovered devices, along the serial number, IP address, and a link to the web user interface (web UI) for each device. -
Page 6: Control Devices
IP subnet range than the control port (P1) for proper behavior. An HD-1 with the default ID of HD-1ID 01 should connect to the TesiraFORTÉ X automatically. An HD-1 placed on the Launch-configured control network will not receive a configuration, it must be on the media network. The HD-1 screen will show "biamp" once it is https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X... -
Page 7: Firmware Update
Always use the non-PoE+ port (P1) of the TC-5 to link to the upstream device to maximize the available PoE+ ports. Both Dante and AVB media protocols are passed on one network port. If stand-alone Dante and AVB networks are https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT... - Page 8 Launch auto-configured systems with TesiraFORTÉ X (NOTE: the connecting port must not supply PoE to the TesiraFORTÉ X). TesiraFORTÉ X auto-configuration supports Biamp AVB peripherals including Parle microphones, Parle amplifiers, EX- UBT, and HD-1 controllers. Please review the Biamp Launch hardware discovery article for details.
- Page 9 AEC offloading for UC platforms which support the option. When auto-configured with Biamp Launch, TesiraFORTÉ X will present a mono 1x1, 48kHz 16-bit or 24-bit speakerphone as its USB connection. In the Launched 1x1 speakerphone configuration, the USB port supports HID mute sync for use with UC platforms, and supports AEC offloading for UC platforms which support the option.
- Page 10 The 2nd option is "Logic Inputs control LEDs". When selected, a logic link must be used to join to blocks to link mic behavior to USB mute state. See the article "Parle-series microphone tips and tricks" for a guide. https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT Powered by...
- Page 11 ZRTP and SRTP-DTLS are new RTP security mechanisms available in TesiraForte X, while older Tesira VoIP interfaces support only SRTP. In TesiraFORTÉ X VoIP, SSL/TLS are supported for SIP signaling encryption. TLS 1.2 is supported and is downward https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT Powered by...
- Page 12 AEC channels are not tethered to an analog I/O and may be assigned to any input desired (analog / AVB / Dante / AES67). The device will use (1) channel of AEC processing per Biamp Parle microphone or other input channel type.
-
Page 13: Installation
Components are attached to the shelf with (4) M3 x 10mm screw, washers, and lock washers (included with shelf kit). Rack mount screws are provided in (3) common sizes, #10-32 x .75", #12-24 x .75", and M6 x .75". Plenum Mounting https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT Powered by... - Page 14 Plenum Box 12x12 is a fire-resistant enclosure used to install a variety of Biamp devices in plenum spaces. The Biamp Plenum Box 12x12 is UL2043 compliant and is approved for use in air-handling plenums. This product also meets Chicago Building Code Chapter 14E-3 requirements for use in a plenum space within the city of Chicago.
- Page 15 Control systems can communicate with manually-configured TesiraFORTÉ X either on P1 using the TesiraFORTÉ X's control IP address, or on P2-5 using the TesiraFORTÉ X's media_avb_2 or Dante IP address. https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT Powered by...
- Page 16 If more streams are needed enterprise grade switches and Server-IO or Forte AVB (dedicated AVB endpoints) are recommended. The number of AVB endpoints on a network https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT...
- Page 17 AVB Network Diameter A network hop is a link between two networked devices. Biamp recommends a maximum AVB network diameter of 9 hops in order to guarantee that 2ms deterministic latency is maintained. AVB networks that consist of purely gigabit-capable devices may allow the maximum network diameter to be 9 or more hops while maintaining 2ms deterministic latency.
- Page 18 It is generally recommended that no more than 9 hops exist between the furthest edges of the AVB network when using a 1G network. Larger diameters may be supported if throughput latency is known, but 9 hops is a conservative value that should always guarantee robust operation. https://support.biamp.com/Tesira/Miscellaneous/TesiraFORTE_X Updated: Thu, 01 Dec 2022 17:48:44 GMT Powered by...
