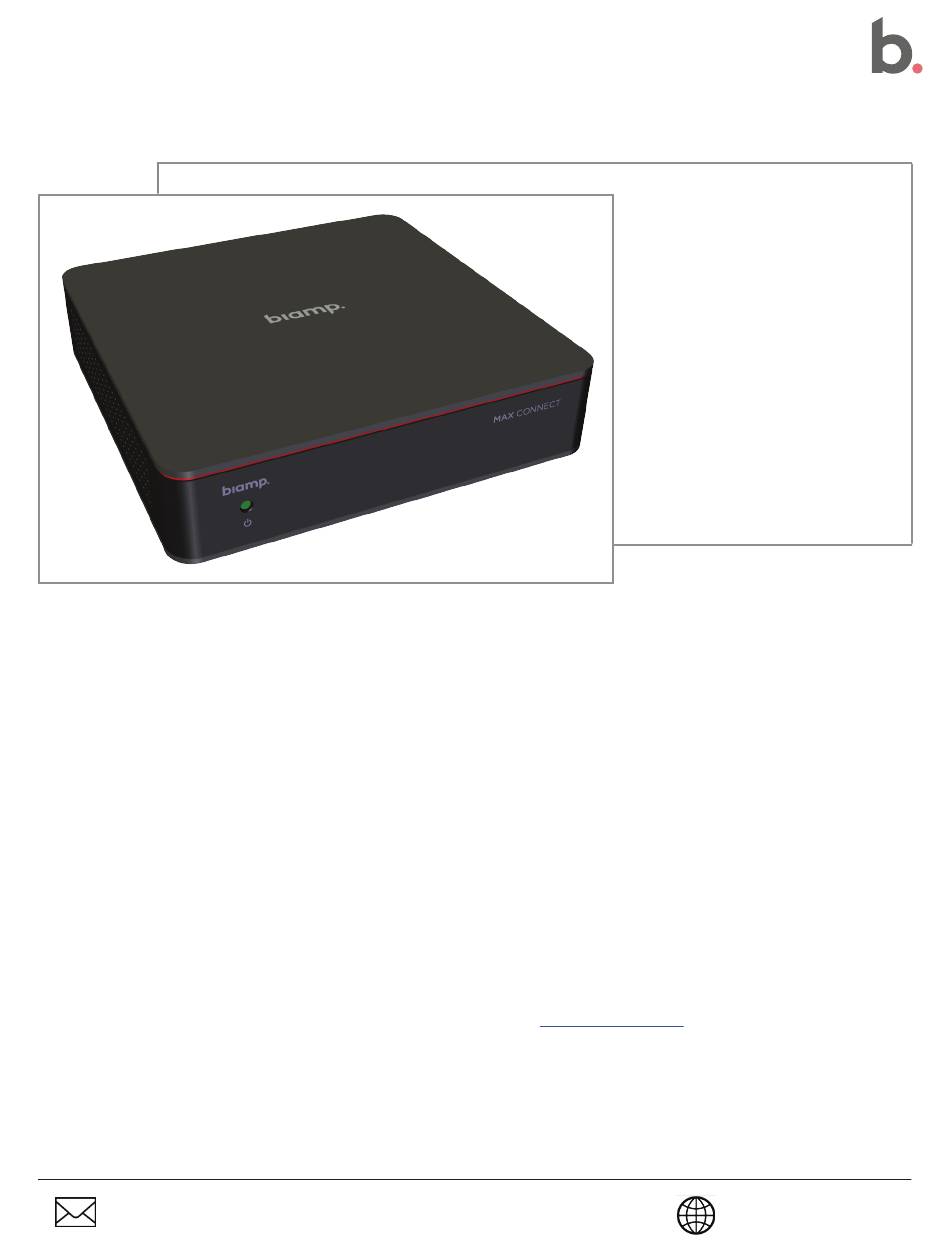

MAX Connect
Installation and Setup Guide
Installation Considerations
The MAX Connect is designed for installation behind or near the in-room display screen. It can
be securely fastened to surfaces using the provided mounting plate and fasteners or installed
freestanding. The mounting plate includes a built-in cable management retainer.
The MAX Connect can be powered by a PoE Ethernet connection or with the included power
supply.
Standard WiFi signal positioning considerations apply if the MAX Connect will be used as a WiFi
access point.
Do not exceed the top end of the safe ambient operating temperature range of 32-104° F (0-
40° C). When installed in enclosed spaces, be aware of conditions that can cause the tempera-
ture to exceed ambient room conditions.
Product Specification Sheet: The specification sheet can be found on the MAX Connect's
product page on biamp.com as well as biamp.com's
The MAX Connect's meeting room display can be controlled by using the included handheld
remote, a connected touchscreen display, or the MAX 8 Touch control panel (sold separately).
The Connect's onboard webpage Administrative Console is accessed by connecting to the MAX
via a network or USB connection.
Biampinfo@biamp.com
BYOM Room Solution
Downloads
page.
www.biamp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAX Connect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biamp MAX Connect

  • Page 1 Installation Considerations • The MAX Connect is designed for installation behind or near the in-room display screen. It can be securely fastened to surfaces using the provided mounting plate and fasteners or installed freestanding. The mounting plate includes a built-in cable management retainer.
  • Page 2: Included In The Box

    Biamp Compliance, Safety, and Warranty Guide Recommended Tools • A Phillips-head screwdriver set • A laptop for configuring the MAX Connect • Tools appropriate for drilling or inserting fasteners into the selected surface type MAX Connect Installation & Setup Guide...
  • Page 3: Device Layout

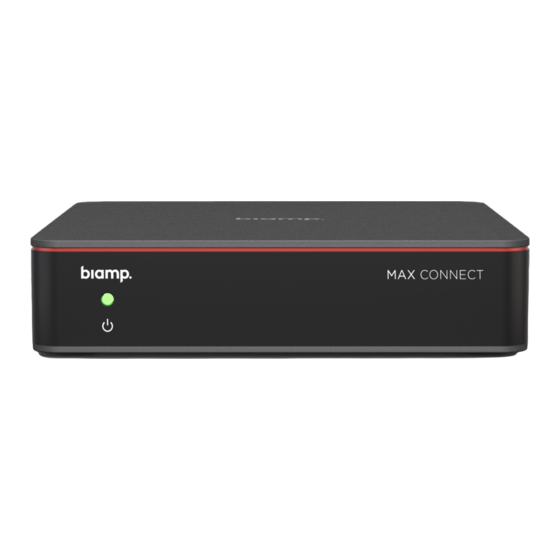

    Device Layout Front Panel Front panel indicators Off: Device is not powered Green: Device is powered MAX Connect Installation & Setup Guide...
  • Page 4 1. Power port 12 V/2A 4. USB 2.0 Type-A Only use the provided AC adapter 6. HDMI Output 2. Pinhole Reset 7. Retention screw retainer 3. Ethernet PoE+ 8. USB 3.0 Type-C Laptop Connection 5. HDMI Input MAX Connect Installation & Setup Guide...
  • Page 5: Freestanding Installation

    The mounting bracket can be quickly removed to install the MAX Connect freestanding on a surface such as a shelf or desktop the MAX Connect does not need to be secured to. However, this does remove the cable management retainer, which is part of the mounting bracket.
  • Page 6 See the Connect the Peripherals procedure in the Setup and Operating Info section of this manual. 6. Verify the connected cables will not pull the MAX Connect out of position. The Max Connect is now ready for its initial setup. Please see the Setup and Operating Information section of this manual. MAX Connect...
  • Page 7: Fixed Installation

    The cable management cover must be removed to grant access to two of the four mount points. 2. Squeeze the recessed release points on the cable management cover, and tilt the cover toward the MAX Connect to lift it off the bracket. Release point MAX Connect...
  • Page 8 MAX Connect will be mounted. 4. Use the included screws and, if applicable, the drywall anchors to secure the unit to the surface. 5. Connect the MAX Connect to the room’s display screen and other AV peripherals. •...
  • Page 9 Verify the cable connections are secure. • Reinstall the cable retainer tray cover. The Max Connect is now ready for its initial setup. Please see the Setup and Operating Information section of this guide. MAX Connect Installation & Setup Guide...
  • Page 10: Connect The Peripherals

    Setup and Operating Information Connect the Peripherals Once the MAX Connect has been secured in its installation location, connect the MAX Connect to the room’s display screen and other AV peripherals. The actual connections will depend on the AV equipment installed in the room. This procedure provides example system connect diagrams as well as device and network connection require- ments.
  • Page 11 Connect the Peripherals continued... MAX Connect Installation & Setup Guide...
  • Page 12 Connect the Peripherals continued... MAX Connect Installation & Setup Guide...
  • Page 13 Connect the Peripherals continued... MAX Connect Installation & Setup Guide...
  • Page 14 • All LAN connections must use Cat5e/Cat6 Ethernet cables and Gigabit switches • MAX Connect can be powered through PoE+ (30W) or the included power supply unit. • Touch 8 MAX can only be powered through a PoE+ switch or a PoE+ injector •...
  • Page 15: Network Port Configuration

    Network Port Configuration Local firewalls must be configured to allow the required MAX Connect traffic, as some communica- tion ports might be locked by default, typically for security reasons. This list describes which ports are used by the system. MAX Connect LAN Traffic...
  • Page 16 Network Port Configuration continued... MAX Connect LAN Traffic continued Ports Type Usage Direction Required Notes 7236 Inbound/Out- Optional Casting communication bound 7250 Inbound/Out- Optional Casting communication bound 20000- Inbound/Out- Media streaming between MAX 36000 bound Connect and clients 47000 Inbound/Out-...
  • Page 17 Optional HTTP Outbound Touch 8 MAX Pairing HTTPS Outbound Touch 8 MAX communication after pairing 5353 MDNS Inbound Optional MAX Connect discovery 20000- Inbound/Out- Media streaming between MAX 36000 bound Connect and Touch 8 MAX Connect Installation & Setup Guide...
  • Page 18 MAX Connect Help System See the online MAX Connect Help System for information on how to configure and operate the MAX Connect and the room conferencing system it controls, including the hand-held Bluetooth remote control that ships with the MAX Connect.
  • Page 19 • https://<IP-Address>/settings • https://MAXConnect -<serialNumber>.local/settings/ The default password the 8-digit serial number found on the MAX Connect. The Room Display and Controls This section of the Help System covers: • The login information displayed on the Welcome Screen for joining a meeting session Settings for •...
  • Page 20 Google Chrome, Microsoft Edge • iOS / iPadOS 14 or higher Cornerstone Support FAQs, system integration articles, troubleshooting, as well as firmware and software release notes can be found on Biamp’s Cornerstone technical support site. • https://support.biamp.com/Modena MAX Connect Installation & Setup Guide...
  • Page 21: Remote Control

    Remote Control The Bluetooth-enabled hand-held remote control comes paired with the MAX Connect that it ships with an with batteries installed. Activating the remote control 1. Open the battery compartment by sliding the back cover down in the direction indicated by the embossed arrow, and remove the protective plastic tabs.
  • Page 22 9300 SW Gemini Drive, Beaverton, OR 97008 USA Warranty: biamp.com/legal/warranty-information Safety & Compliance: biamp.com/compliance July 4, 2024...
