GS2/24V
Assembly and Operating Instructions
en
DC control unit for 24 V DC tubular drives
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
4007 630 038 0 25/09/2018
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker GS2
Summary of Contents for Becker GS2
- Page 1 GS2/24V Assembly and Operating Instructions DC control unit for 24 V DC tubular drives Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 4007 630 038 0 25/09/2018 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4...
-
Page 2: Table Of Contents
Table of contents General ........................ 3 Warranty ...................... 3 Safety instructions .................... 4 Intended use ...................... 5 Installation...................... 5 Block diagram ...................... 7 Electrical connection..................... 8 Operation ...................... 9 Maintenance ...................... 9 Cleaning....................... 9 Disposal ....................... 9 Technical data ..................... 10 Simplified EU declaration of conformity.............. 10... -
Page 3: General

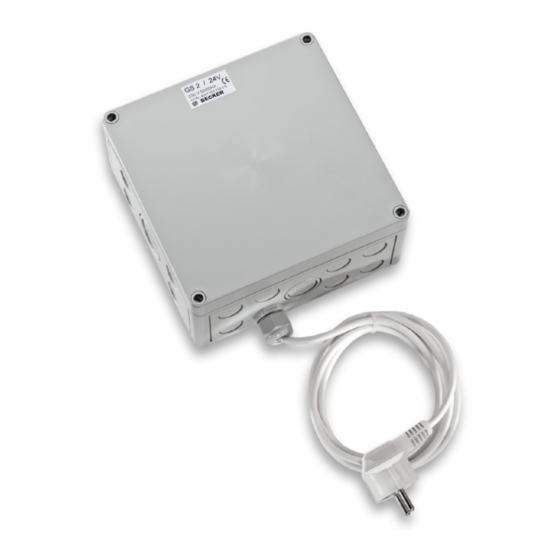

General The DC control unit GS2 is a power supply unit for controlling 24 V Becker DC drives. The performance figures for the control unit are tailored to these drives. If the trans- former is overloaded, a thermoswitch in the transformer will deactivate and will only re- activate when the control unit has been disconnected from the mains. -
Page 4: Safety Instructions
Safety instructions General information • Only use in dry rooms. • Only use unmodified original parts from the control unit manufac- turer. • Keep children away from control units. • Observe all pertinent country-specific regulations. Caution • Risk of injury due to electric shock. •... -
Page 5: Intended Use
Intended use The control unit type in these instructions is intended for the supply and control of 24 V DC tubular drives from the company Becker-Antriebe, which are used for sun pro- tection, roller shutters, roller doors and similar blinds or shutters. - Page 6 Opening the control unit Installation on the wall Fix the control unit to the wall with the holes provided for this purpose in the corners, using 4 screws (max. screw head diameter: 7.5 mm) that are suitable for the nature of the wall.
-
Page 7: Block Diagram
Block diagram DC control unit GS2/24V Mains 230V/50-60 Hz... -
Page 8: Electrical Connection
At terminal A and 0V, power can be supplied either by DC control unit GS1 or by battery. In the event of a power failure, the voltage at terminal A will be used. Wiring diagram DC control unit GS2/24V Stör L1 PE N green... -
Page 9: Operation
Operation The green LED serves as a control for the 24 V supply voltage. The red LED indicates impermissibly high generator operation. If the tubular drive is powered at over double the rated speed, the voltage will increase to over 50 V, which will be indicated by the red LED. -
Page 10: Technical Data
6A / 24 V DC Fuse 6.3A Tr Simplified EU declaration of conformity Becker-Antriebe GmbH hereby declares that this control unit complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU declaration of conformity is available at the following web ad- dress: www.becker-antriebe.com/ce...
