Valor G3.5 Series Installation Manual

Floating trim kit
Hide thumbs Also See for G3.5 Series:
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Table of Contents

713 Floating Trim Kit
CSA approved for use with Valor G3.5 700 Heater Models ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 713 Floating trim is intended to be used on Valor heater model 700. Mounting of the 713 does not aff ect
clearances or other specifi cations listed in the heater installation manuals—see installation manual supplied with the
heater for more information.

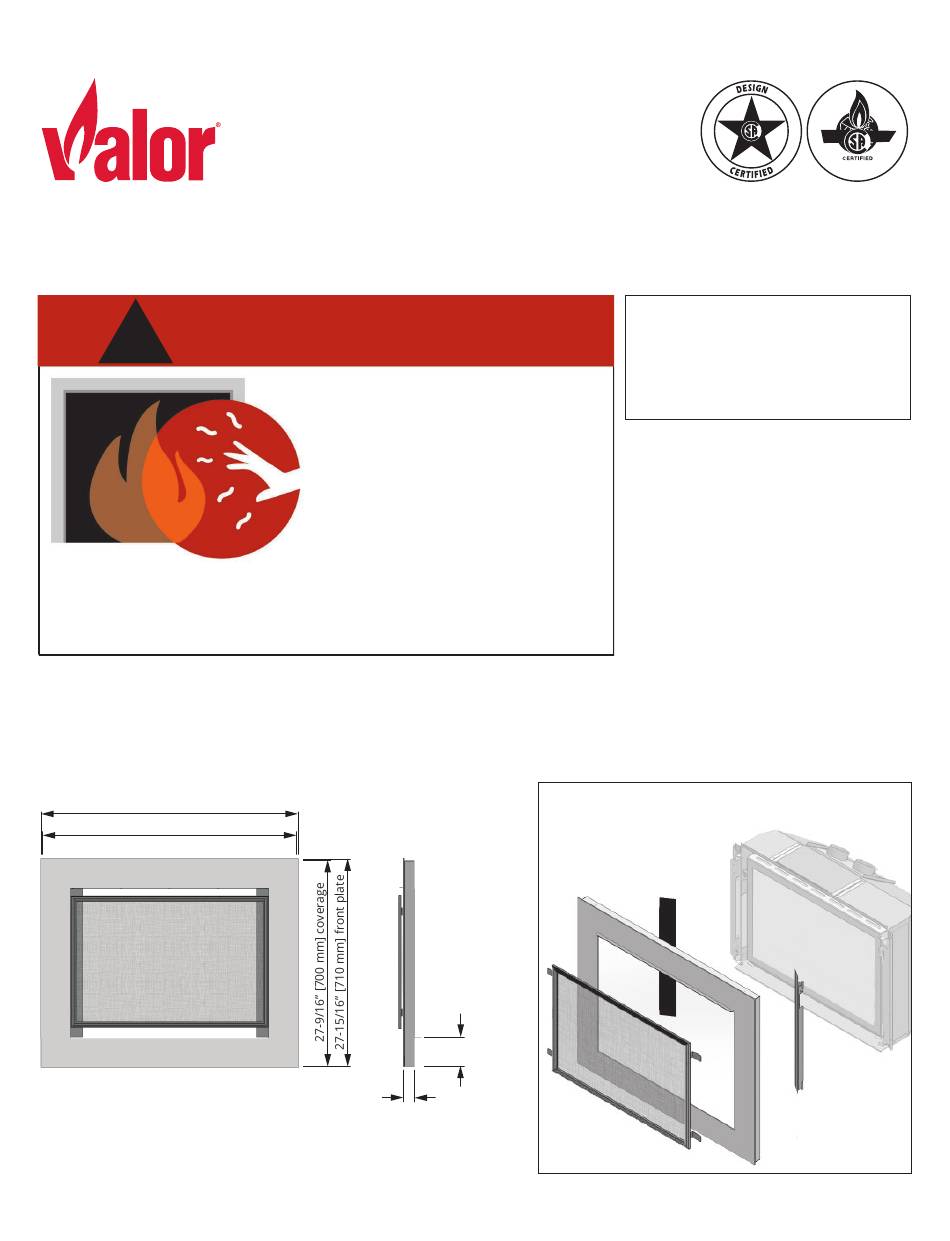

34-1/2" [876 mm] front plate
33-3/4" [857 mm] coverage
4003866-05
© Copyright Miles Industries Ltd., 2019
G3.5 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Bottom of heater
3-7/8" [99 mm]
1-1/2"
[38 mm]
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain
this manual for future
reference.
700 engine

Overview

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G3.5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Valor G3.5 Series

Summary of Contents for Valor G3.5 Series

  • Page 1 The 713 Floating trim is intended to be used on Valor heater model 700. Mounting of the 713 does not aff ect clearances or other specifi cations listed in the heater installation manuals—see installation manual supplied with the heater for more information.
  • Page 2 Installation 6. Hook the barrier screen to the back of the front. Ori- ent the screen so its tabs are on the back. 1. Identify the left and right panels using the image Note: The barrier screen, when hooked to the below.
  • Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
  • Page 4 être installé pour la protection des enfants et des personnes à risques. La Bordure saillante 713 est conçue pour les foyers Valor Legend G3.5 700. L’installation de la bordure 713 n’aff ecte pas les dégagements et autres caractéristiques indiqués dans le guide d’installation du foyer—consultez le guide d’installation pour plus d’information.
  • Page 5 Installation 6. Accorchez le pare-étincelles sur l’arrière de la bor- dure. Orientez-le de façon à ce Languettes du pare- 1. Identifi ez les panneaux d’accès gauche et droite à étincelles vers l’arrière que ses languettes de fi xation l’aide de l’image ci-dessous. soient vers l’arrière.
  • Page 6 Entretien  AVERTISSEMENT Pour nettoyer la bordure, utilisez une solution d’eau et de savon doux. Époussettez le pare-étincelles à l’aide NE TOUCHEZ PAS LE PARE-ÉTINCELLES d’une brosse à poils doux. Pour brossez l’arrière du OU LE FOYER LORSQU’ILS SONT CHAUDS! pare-étincelles, décrochez simplement la bordure. Laissez-les refroidir avant de les nettoyer.
