Valor G3.5 Installation Manual

INSTALLATION MANUAL
Backing Plate 710BPB
Use with Valor G3.5 700 models ONLY
The 710BPB Backing Plate is intended to be used on
Valor heater model 700 only.
It can be used where necessary to cover larger fireplace
openings and it is compatible with all optional inner trim
kits.
37-3/4" [959 mm]
30-5/8" [778 mm]
Installation
1. Place backing plate behind engine and position
fireplace flanges between plate legs.
2. Secure the plate to flanges with 4 screws (2 per
side top/bottom).
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway,
North Vancouver, B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.valorfireplaces.com
4003397-02
© Copyright Miles Industries Ltd., 2020
G3.5
Mounting of the 710 does not affect clearances or other
specifications listed in the heater installation manuals.

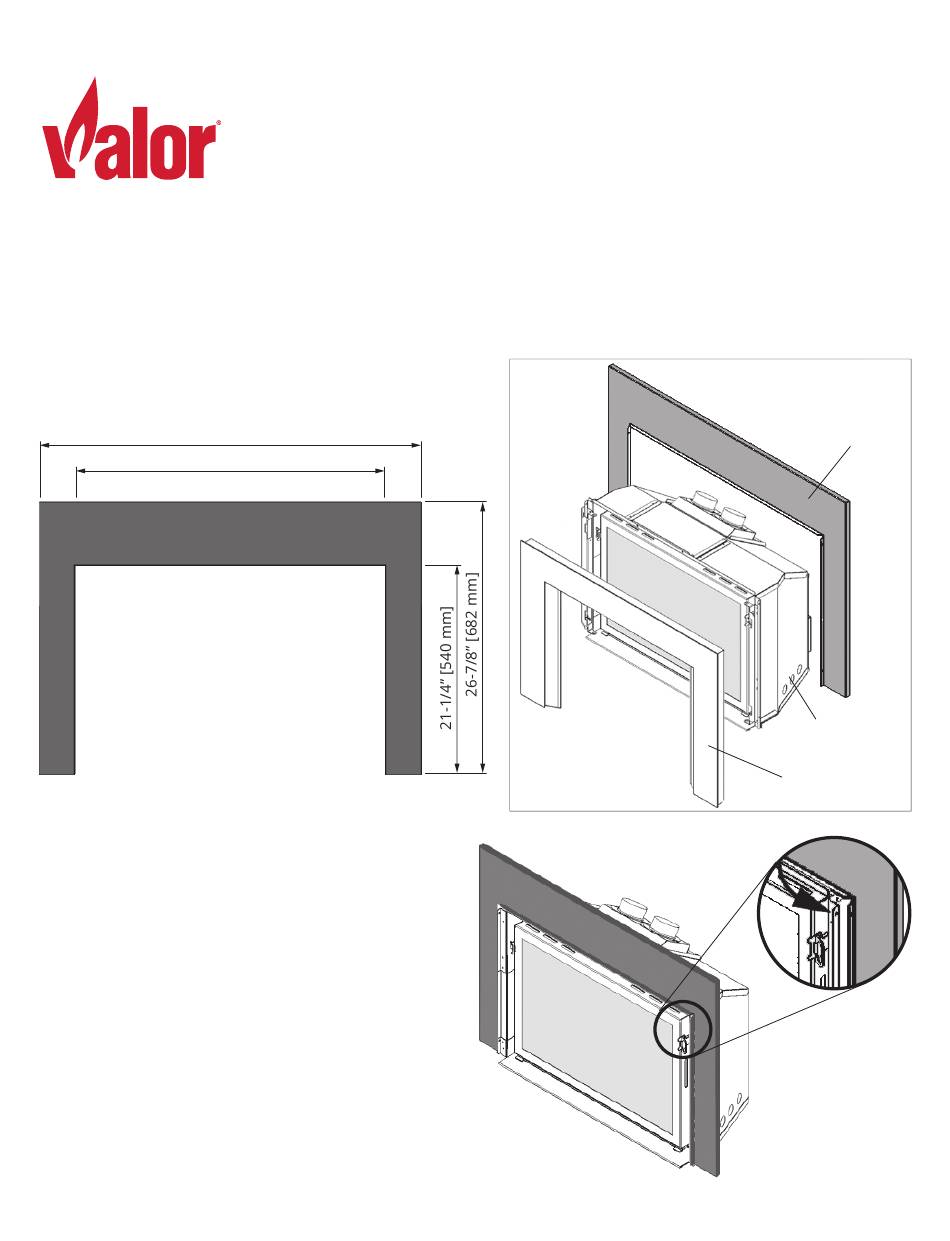

Overview
Secure from the
inside with 4
screws supplied
Locate the plate
around the appliance
710BPB
700 engine
Optional
inner trims
