Playcraft Poly Wave Slide Canada 1704-CAN Installation Instructions

POLY WAVE SLIDE - CANADA
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual Section R5-1304 Slide Sit Down Wall or R3.5-1304-CAN Slide Sit Down Wall
R3.5 Canada assembly instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.
(E) Exit height must be between 7" [180mm] and 15" [380mm] from finish grade for slides with an elevation
greater than 48". For slide elevations no greater than 48", the exit height shall be no greater than 11".
Exit region must also have a downward slope of 0 to 4° .
Figure 1.1
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Figure 1.2
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
1704-CAN

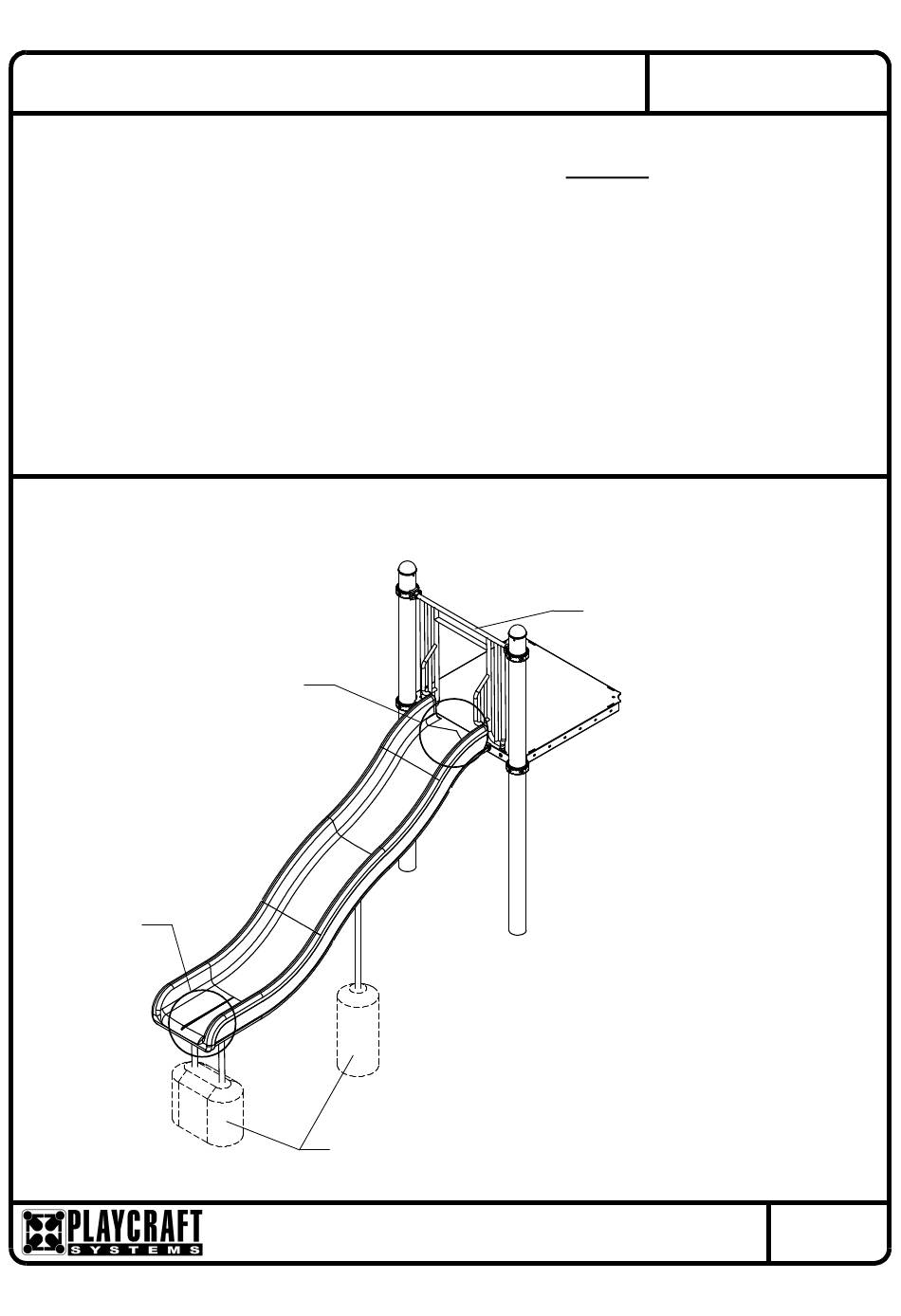

FIGURE 1
60" Poly Wave Slide
See Installation Manual Section
R5-1304 Slide Sit Down Wall or
R3.5-1304-CAN Sit Down
Wall R3.5 Canada
NOTE: R5 60" Configuration
shown. R3.5 will vary slightly, but
does not affect the assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Page 1 of 5
Rev B
7/18/2009
