Playcraft Poly Wave Single Slide V2 Installation Instructions

POLY WAVE SINGLE SLIDE V2
INSTALLATION INSTRUCTIONS

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual Section R5-1304 Slide Sit Down Wall, or R3.5-1304-CAN Sit Down Wall with
Guards R3.5 installation instructions.
(D) For slides with an entry elevation of 48" [1219mm] or greater, the exit height must be between 7" [180mm]
and 15" [380mm] from finish grade. For slides with an entry elevation of less than 48" [1219mm], the exit height
must be less than 11" [279mm]. Exit region must always have a downward slope between 0° and 4° .
(E) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height of
the equipment or consult your surfacing supply representative.
See Installation Manual Section
R5-1304 Slide Sit Down Wall,
or R3.5-1304-CAN Sit Down
Wall with Guards R3.5
®
) with all threaded hardware. Important: Liquid thread lock (prior to
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com

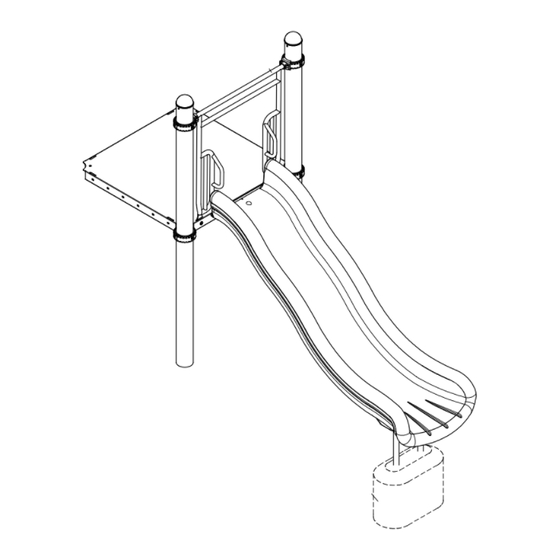

NOTE: R5 48" Poly Wave Slide shown.
Other configurations will vary slightly,
but does not affect assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1704-V2
Page 1 of 4

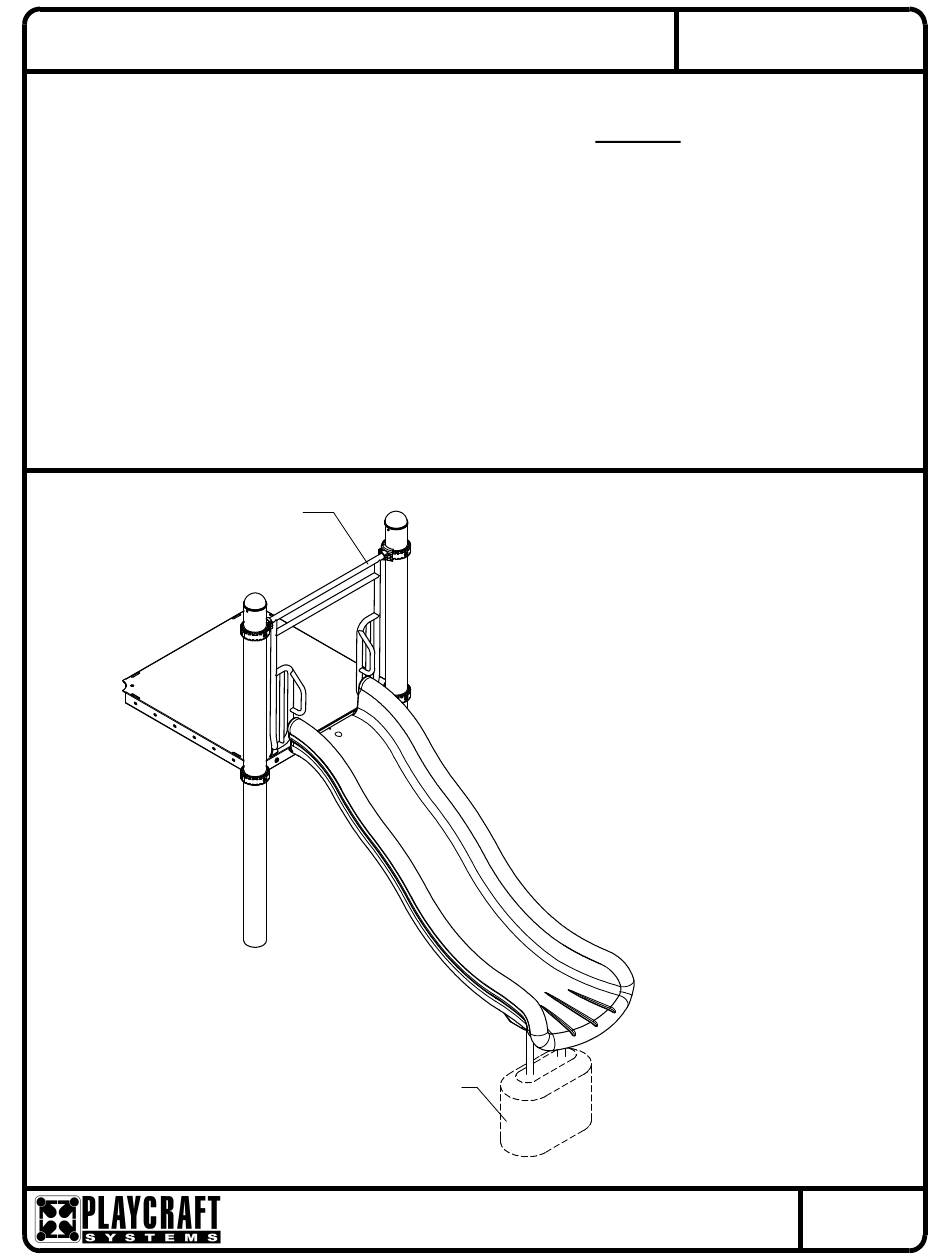

FIGURE 1
Poly Wave
Single Slide V2
Rev A
10/9/2012
