Building Instruction 122.072
Recycling Rowing Boat
1

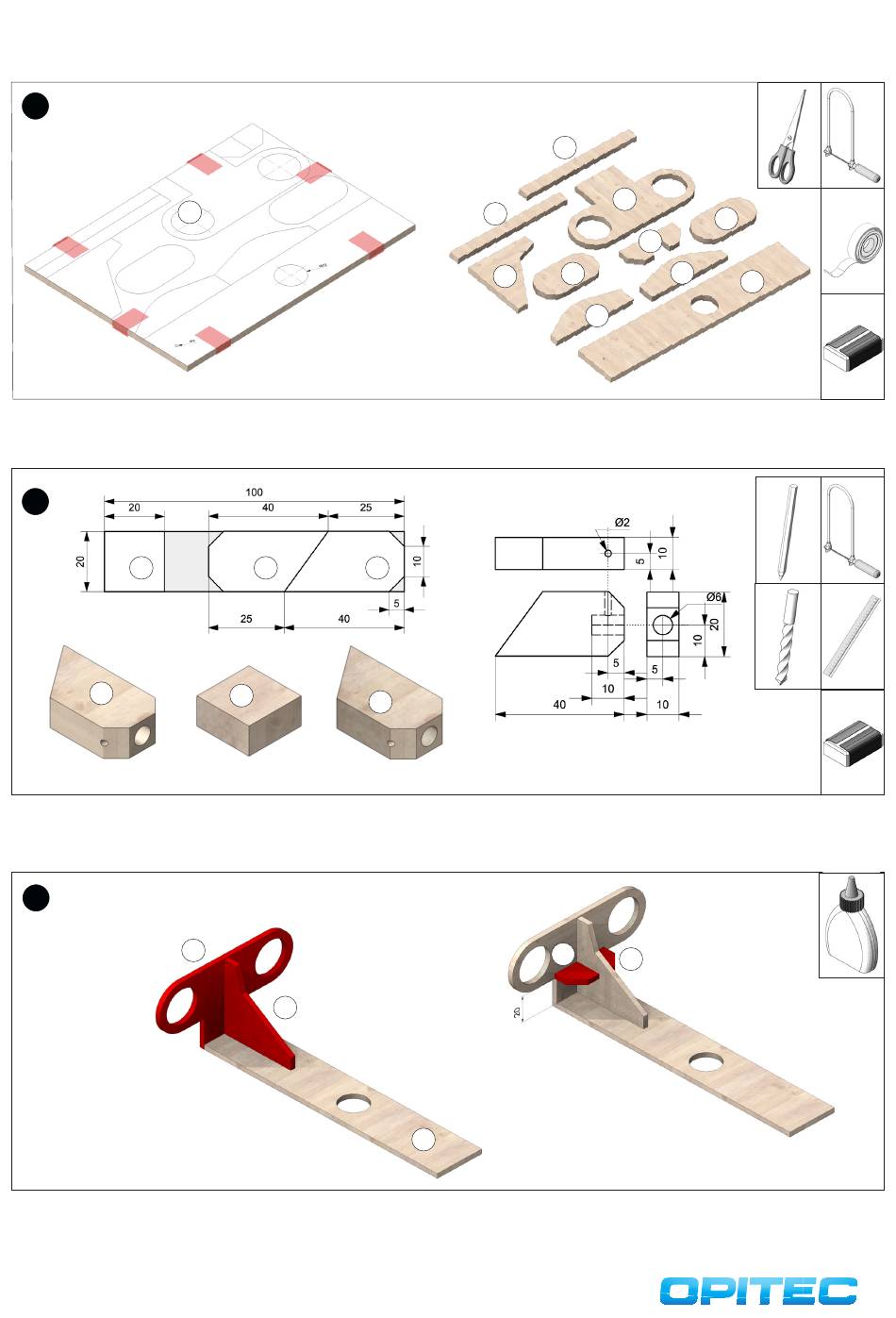

Cut out the template (page 5) and fix it with adhesive tape on the plywood panel (1). Saw out the individual parts and clean all saw cuts with sandpa-
per.
2
2c
2a
Transfer the dimensions for the paddle arm parts (2a, 2b) and the head mounting (2c) to the wooden strip (2). Then cut to length and clean the saw
cuts. For parts 2a and 2b drill the two blind holes ø6 and the screw holes ø2 according to the dimensions.
3
Glue the wooden part (1b) as shown on the underside of the wooden part (1a), centred on the front edge. Then glue the front part (1d) from the front
as shown. Glue the two parts (1c) to part 1b and 1d from both sides at a distance of 20 mm from the lower edge as reinforcement. Allow the glue to
dry firmly.
2
1
2a
2c
1d
1b
1f
1b
2b
2b
1a
1f
1d
1g
1c
1e
1g
1e
1c
1c
1a
ø2
ø6
