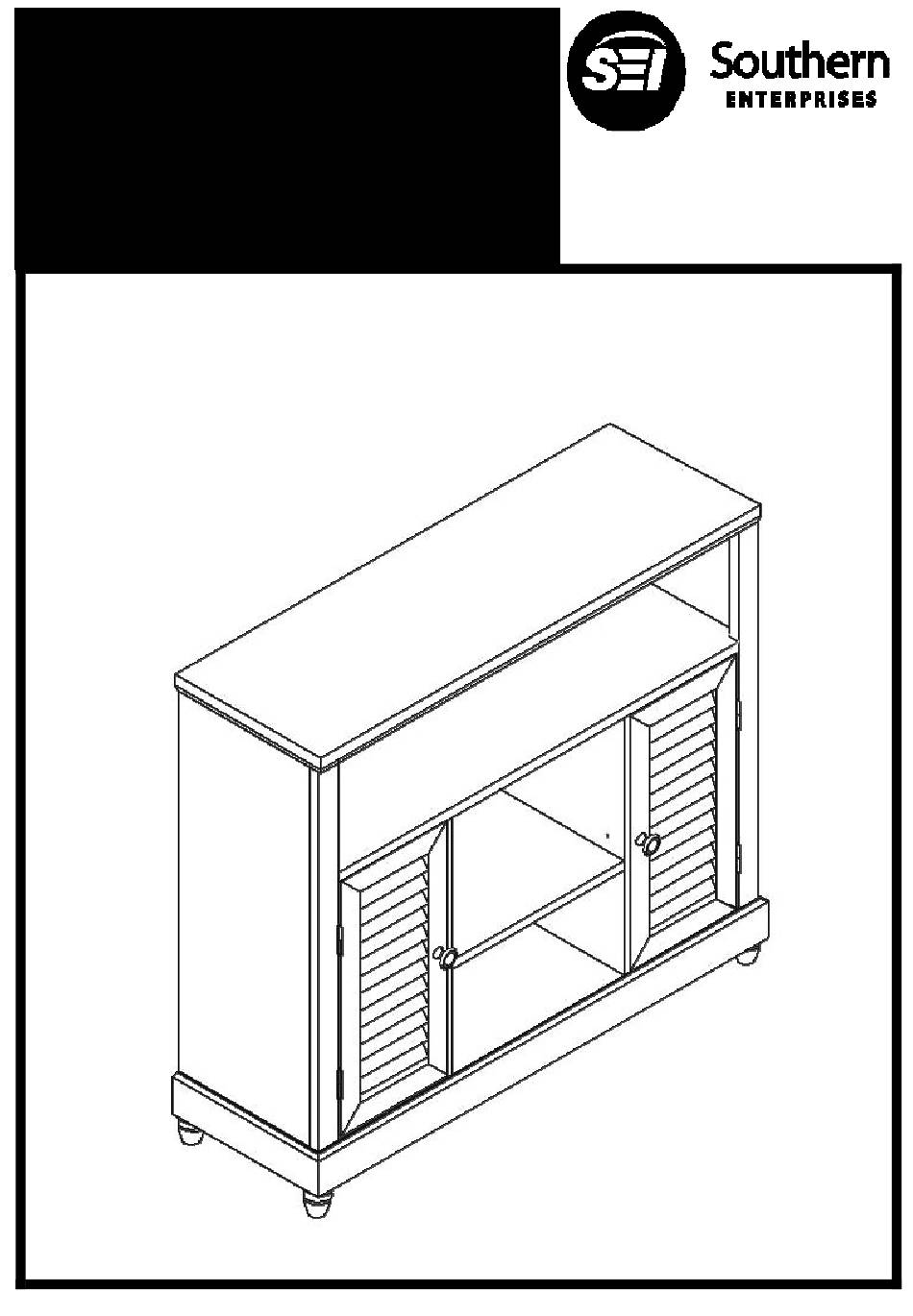

- Page 1 MS993300TX “Louvered-Door” TV/Media Cabinet- Ebony Stained Assembly Instructions...
- Page 2 “Louvered-Door” TV/Media Cabinet Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 “Louvered-Door” TV/Media Cabinet Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing.
- Page 4 “Louvered-Door” TV/Media Cabinet Assembly Instructions Insert 4 pcs cam locks (C) into holes on middle panel (1) and (2). Screw 4 pcs cam bolts (B) into holes on the bottom of panel (3). Attach fixed shelf (3) to middle panel (1) and (2) by inserting wood dowels (A) and cam bolts (B) into corresponding holes until they meet.
- Page 5 “Louvered-Door” TV/Media Cabinet Assembly Instructions Tighten support foot (7) and middle support foot (8) into bottom panel (6). Figure 3 Insert 8 pcs cam locks (C) into holes on assembled unit. Screw 8 pcs cam bolts (B) into holes on bottom panel (6). Attach assembled unit to bottom panel (6) by inserting wood dowels (A) and cam bolts (B) into corresponding holes until they meet.
- Page 6 “Louvered-Door” TV/Media Cabinet Assembly Instructions Insert 4 pcs cam locks (C) into holes on assembled unit. Screw 4pcs cam bolts (B) into holes on top panel (9). Attach top panel (9) to assembled unit by inserting wood dowels (A) and cam bolts (B) into corresponding holes until they (9) meet.
- Page 7 “Louvered-Door” TV/Media Cabinet Assembly Instructions Attach left door (10) and right door (11) to left side panel (4) and right side panel (5) as shown in figure 7. Use bolts (I) to connect knob (J) to doors (10) an (11). Tighten bolts (I) with phillips screwdriver. Use screws (E) to connect magnets (F) to fixed shelf (3).
- Page 8 “Louvered-Door” TV/Media cabinet Assembly Instructions Move TV/media cabinet close to the wall brackets (K) and tie in both brackets (K) with plastic straps (N) as shown in diagram. Now your new TV/media cabinet is ready to use.
- Page 9 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Do not allow children under 16 years to move the cart. Model: MS993300TX “Louvered-Door” TV/Media Stand Southern Enterprises, Inc...
