4-3 Control signal and instruction
1. Looking up the attached IO table and schematic diagram, we can get the machine
input and output corresponding to each wiring position from the motherboard plan.
2. DIP adjusts the reference IO table, capital letters for factory settings, users can
adjust according to the operation situation.。

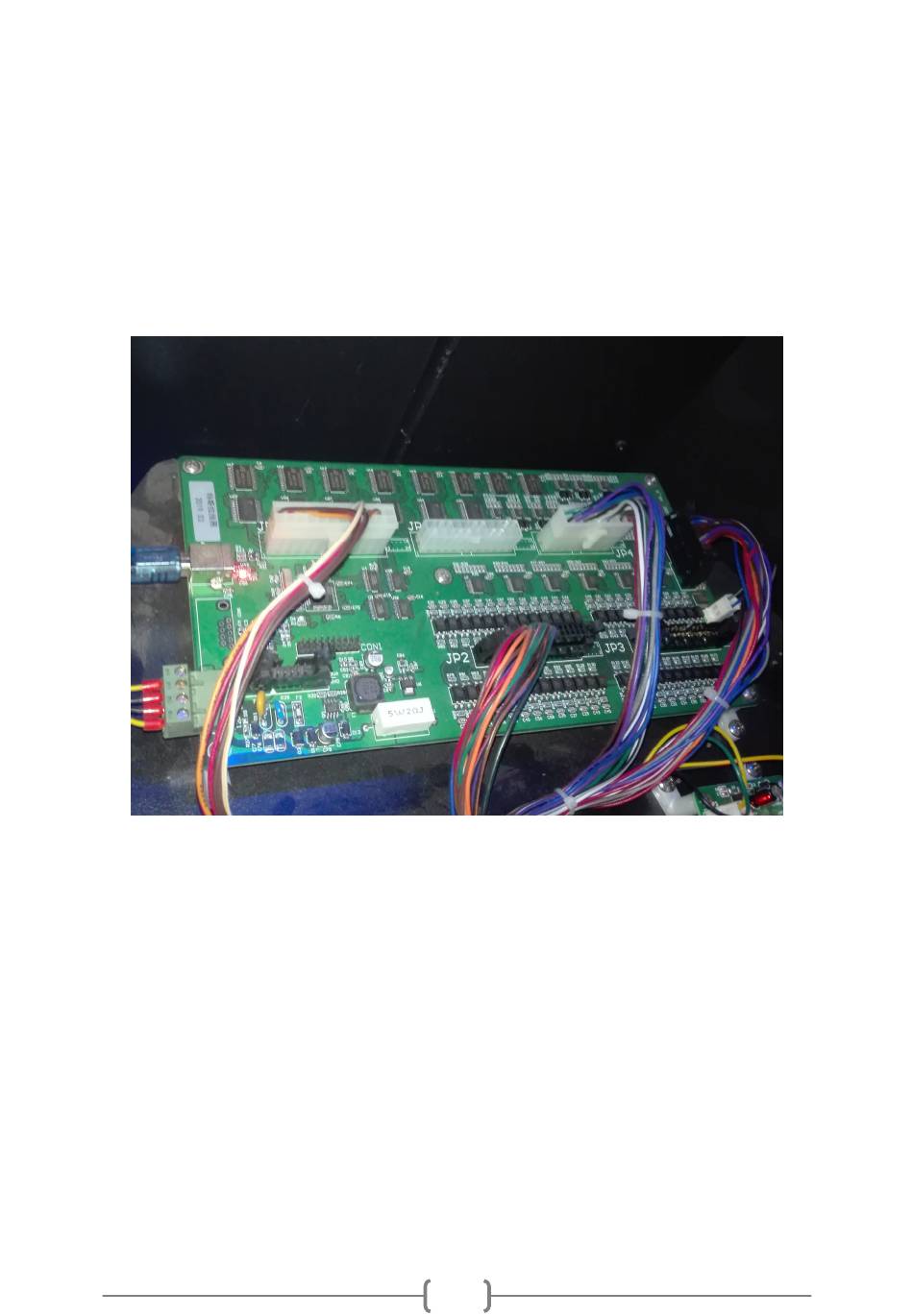

3.Main Board Drawing：
5
