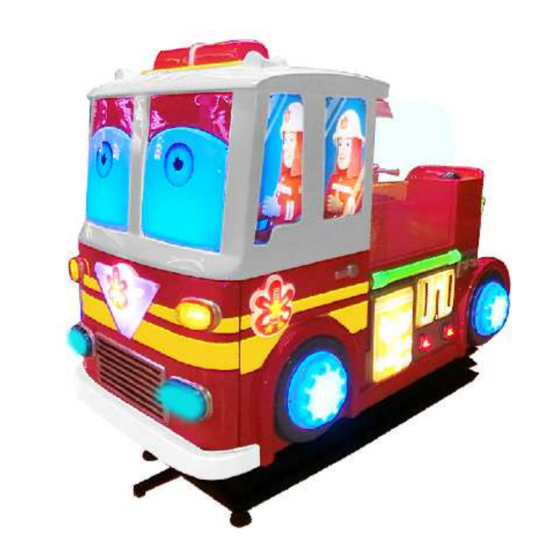

Kiddie Firemen
Operation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kiddie Firemen and is the answer not in the manual?

Questions and answers

Related Manuals for MecPower Tecway Kiddie Firemen

Summary of Contents for MecPower Tecway Kiddie Firemen

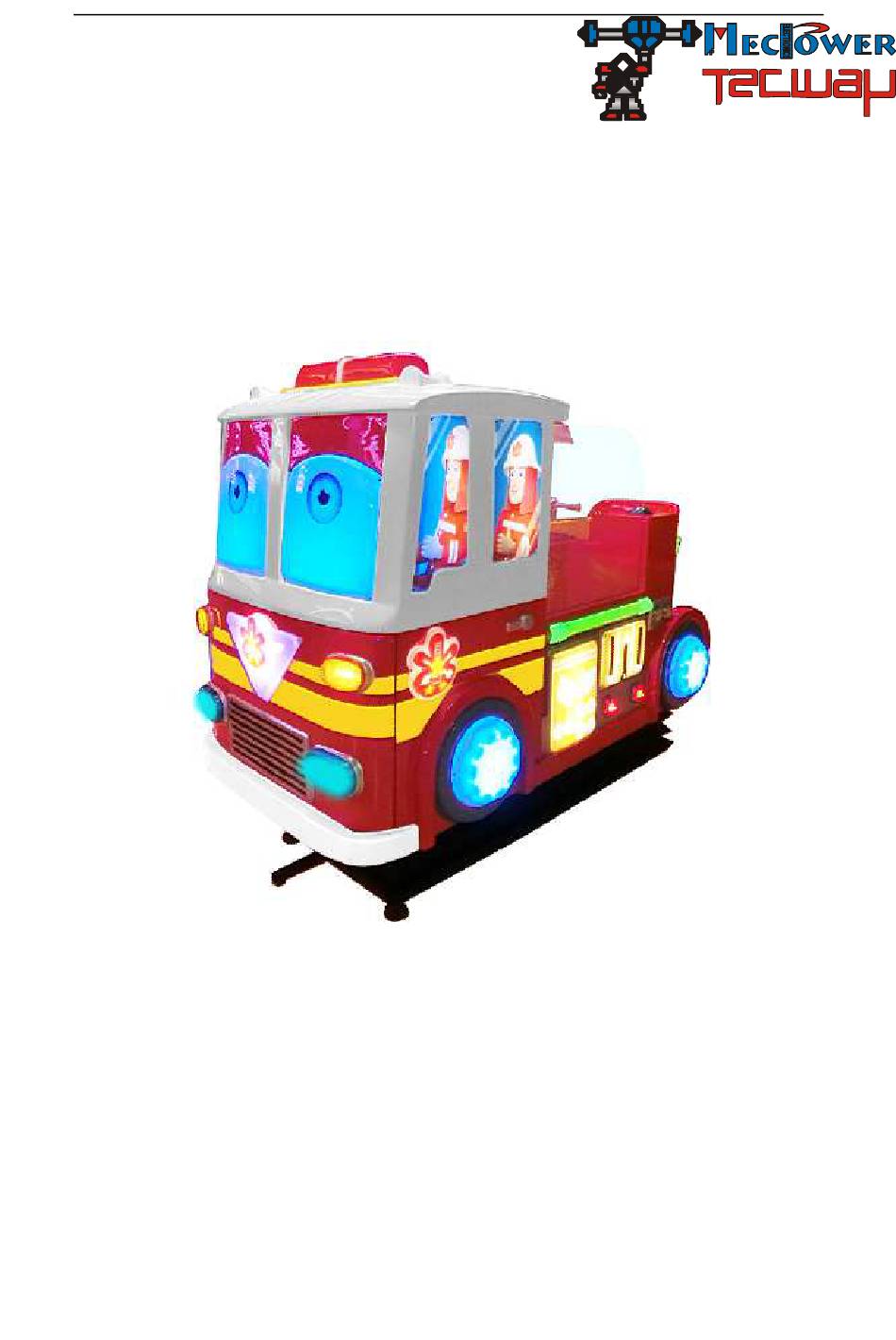

  • Page 1 Kiddie Firemen Operation manual...
  • Page 2 Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
  • Page 3 Notes of Usage 1) The voltage range of the game should be 105V~115V or 215V~225V. The proper voltage should be 110V/220V. The specific voltage accords to the date plate on the back door of the game. The voltage must be correct;...
  • Page 4 Notes of Clean 1) Please use clean and soft cloth to clean the game. 2) Prevent damaging the surface of the game, please do not use the following cleanser: Alterative Cleanser； Acidic Cleanser； Insecticide, sterilized water, alcohol or other chemical cleanser. Notes of Moving and Shipping 1) Properly disassemble the game for necessary moving and shipping.

  • Page 5: Technical Parameter

    Game introduction 1) Insert coin(s), press start button. 2) Move the squirt gun to choose scene, press start button to enter the game. 3) Aims at the target then squirt the fire. Player got extra playing time when reach the target score. There are some props can help in each scene, such as water cannons, water tank and fire extinguisher.
  • Page 6 contact with any corrosive liquid, no any greasiness and dirt. DIMENSIONS:：L1990mm*W1100mm*H1580mm 3. Movement Screw the foundation to leave the ground (about 5mm). Foundation 固定地脚 用力方向 WARNING Please power off the game first and pull out the cord, then move the game. Please do not carefully move, turnover, transport the game;...

  • Page 7: Installation

    Please follow the direction below to install the game. 4.1 CHOOSE THE LOCATION FOR INSTALLATION 1) Put the Kiddie Firemen in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior.
  • Page 8 4.2 FIX THE FOUNDATION Screw the foundation down to hold the game, distance between ground and wheel is 1cm. Wheel 脚轮 Foundation 固定地脚 WATER 4.3 ADD As shown below. Add about 50L clean water. Add water here 水盆加水处 7 7 7 7...
  • Page 9 4.4 CHECK AND SET BEFORE CONNECTING THE POWER Please check whether the parts of cabinet are loose caused by moving, and the wire terminal should not drop out from the port. Check whether the GND is connected. Please check whether the resistance of power input at the both ends for GND is more than 100 megohm.
  • Page 10 4.5 CHECK AND ADJUST AFTER CONNECTING THE POWER 1) Make sure the input voltage is same as the one stated on nameplate on the back door of the game. 2) After connecting the power, please switch on the game. 3) Inserting coin to check if the coin machine cans work properly. 4) Visually check the game and confirm the display and light can work properly.

  • Page 11: Check Before Operation

    5. CHECK BEFORE OPERATION Check the game before operation to prevent the game from working improperly when operated. Checking item： 1) Check if the cord is securely plugged in and without defects. 2) Check the location of game. 3) Check if the game case is without defects or burrs. 4) Check if the game without dirt and properly stuck on with marks.

  • Page 12: Game Setting

    7. GAME SETTING 1. Find out the setting board Setting board 设置板 KEYS FOR SETTING: SELECT Setting TEST ENTER Change Free to play SERVE ERASE TEST: Enter into the setting menu or skip to the next menu. ENTER: Change the setting. SERVE: 1 free play.
  • Page 13 2. SETTING METHOD Setting method: press “TEST” to enter into the game setting menu → press the “TEST” to choose the setting item →press “ENTER” to change the setting. Setting Language: English Ticket-out: Game Time: Volume: Number of Coins: Reset: Scores per ticket: Potentiometer Test: YES Standby Music:...
  • Page 14 Test the potentiometer and adjust the squirt position: 电位器测试 P1左右电位器: 218 P1上下电位器:98 P1屏幕坐标校正:1 退出电位器测试:YES 移动水枪1到瞄准点位置，按下开始键 P1 left and right potentiometer: this item is to test the left and right potentiometer. When move the squirt gun left and right, the value will change, if it is not change, it means the left and right potentiometer is not working properly.
  • Page 15 8. ADJUSTMENT 8.1 ADJUT THE COIN MECH adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input COUNTER(+/-) GRAY coin-return DC+12V WHITE COIN SIGNAL BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW Adjusting Switch For 50ms MEDIUM...
  • Page 16 8.2 ADJUST THE SQUIRT COORDINATE Press “TEST” on the setting board to enter into the game setting menu → press the “TEST” to select “Potentiometer Test” →press “ENTER” to enter setting. Test if the left and right potentiometer and up and down potentiometer is （refer to above setting working properly.
  • Page 17 9. CHECK AND MAINTAIN ！Warning Check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. Daily Check ITEM DESCRIPTION...
  • Page 18 Clean up wastewater Please change the water every 2 weeks and clean the glass regularly. Change water: 1) Open the maintenance door, put the water pipe in a bucket. Pump 水泵组件 2) Open the drain valve and close the water pressure regulating valve 1, then the pump is energized and run and drain the water to the bucket.
