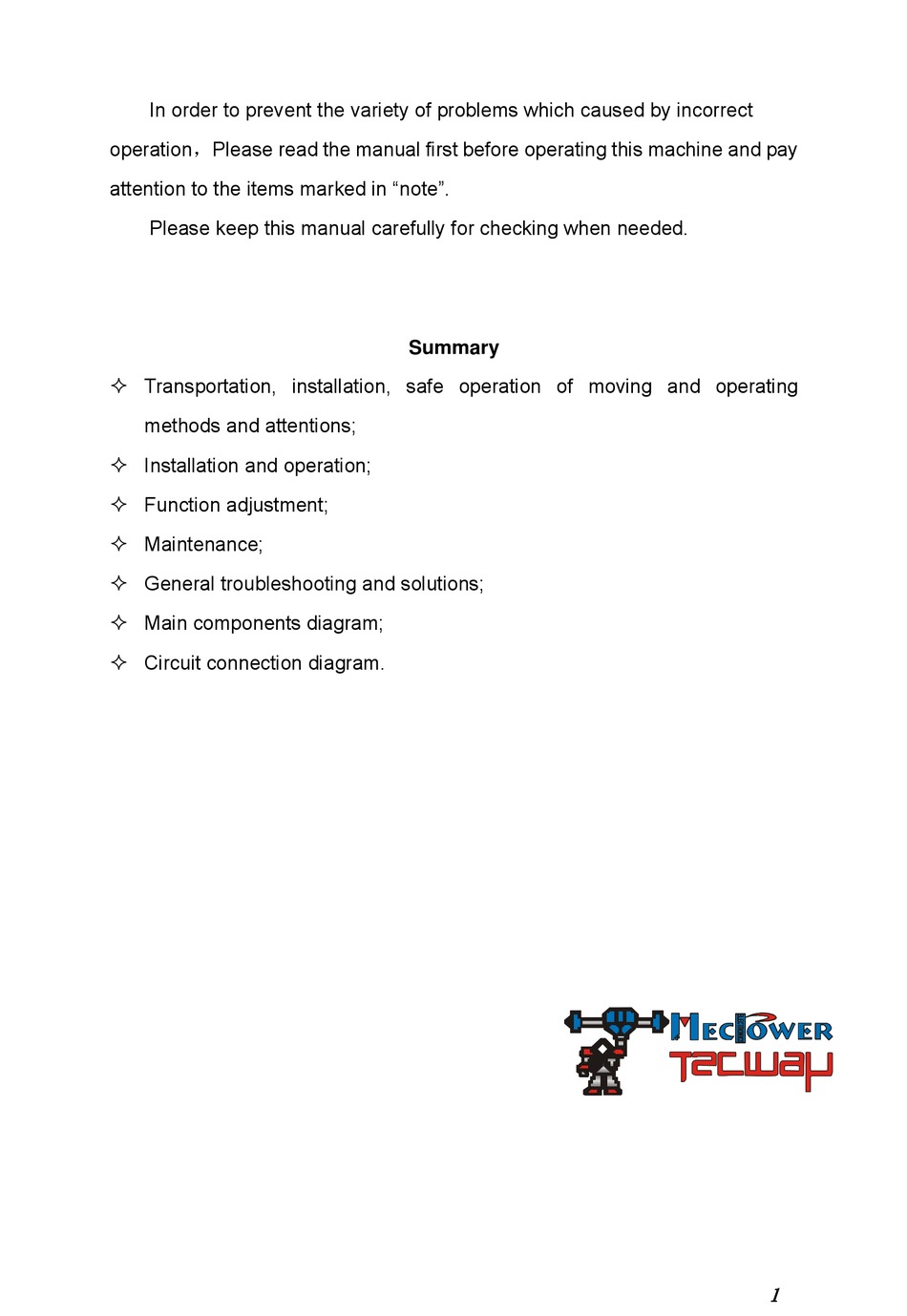

In order to prevent the variety of problems which caused by incorrect
operation，Please read the manual first before operating this machine and pay
attention to the items marked in "note".
Please keep this manual carefully for checking when needed.
Transportation, installation, safe operation of moving and operating
methods and attentions;
Installation and operation;
Function adjustment;
Maintenance;
General troubleshooting and solutions;
Main components diagram;
Circuit connection diagram.
Summary
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MecPower Tecway Geronimo's Horse
Summary of Contents for MecPower Tecway Geronimo's Horse
- Page 1 In order to prevent the variety of problems which caused by incorrect operation，Please read the manual first before operating this machine and pay attention to the items marked in “note”. Please keep this manual carefully for checking when needed. Summary ...
- Page 2 Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
- Page 3 too tight and damaged in order to prevent bodily injury, short-circuit and power leakage. 3) To put the machine to normal operating, please properly adjust the coin match and the game settings when use at the first time. 4) Please regularly check all the functions of the game when operate to prevent dysfunction.
-
Page 4: Table Of Contents
CONTENT GAME INTRODUCTION---------------------------------------------------------------------5 PLAYING TIPS---------------------------------------------------------------------------------6 TECHNICAL PARAMETER-----------------------------------------------------------------7 INSTALLATION--------------------------------------------------------------------------------8 GAME SETTING-----------------------------------------------------------------------------10 CHECK BEFORE OPERATION----------------------------------------------------------11 DAILY OPERATION-------------------------------------------------------------------------11 ADJUSTMENT-------------------------------------------------------------------------------12 CHECK AND MAINTAIN-------------------------------------------------------------------14 TROUBLESHOOTING---------------------------------------------------------------------15 PARTS DRAWING AND PARTS LIST--------------------------------------------------16 SCHEMATIC DIAGRAM-------------------------------------------------------------------19... -
Page 5: Game Introduction

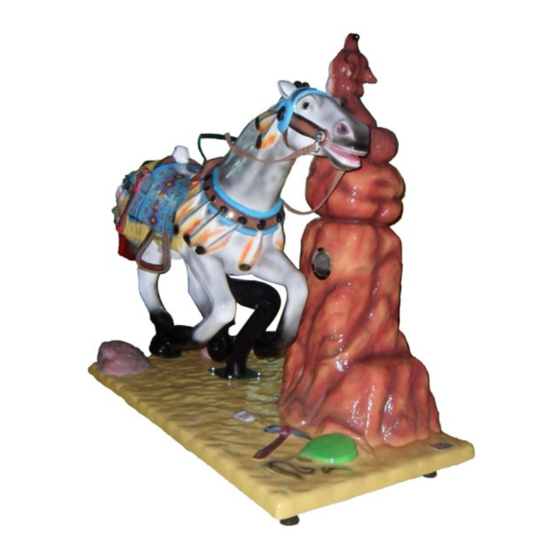

1. GAME INTRODUCTION Geronimo’s Horse with unique, beautiful, comic and simulation car appearance, interesting and exciting game, it is specially designed and developed by our company for the young people. It will be very essential and popular in amusement center. BEAUTIFUL OUTLOOK STABLE MOVEMENT Features:... -
Page 6: Playing Tips
2. PLAYING TIPS Ride on the Geronimo’s Horse and insert coin, the game will start automatically. It will move up and down, forward and backward.; when the game time is up, it will stop. If urgent stop needed, please pull the rein to stop the game. -
Page 7: Technical Parameter
TECHNICAL PARAMETER VOLTAGE: AC220V/110V（50/60HZ） MAX. CURRENT：2A/4A (Note: please refer to the nameplate located on the back of the games to check actual usage of voltage.) MAX. POWER: 450W COIN SIZE：φ21mm ~ φ30mm (diameter) 1.2mm ~ 2.5mm (thickness) CAPACITY OF COIN BOX: 1200pcs of coins with coin sizeφ25mm*1.5mm LOCATION REQUIRED: -5 ~ 40 , humidity is less than 90%. -
Page 8: Installation
4. INSTALLATION Please follow the direction below to install the game. 4.1 CHOOSE THE LOCATION FOR INSTALLATION 1) Put the Geronimo’s Horse in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior. - Page 9 Attention Please make sure the power cord is not pressed by wheel, foundation, etc. Otherwise, it will damage the wire to cause short circuit, even fire. Do not use strong power to extend and wring the wires. Do not make the wire be near to the high temperature object.
-
Page 10: Game Setting
5. GAME SETTING Descriptions: Step 1: open the coin door to find DIP SW1 setting group on setting board PCB BOX SETTING BOARD SW1 SWITCHES GROUP Step 2: set the game according to below setting chart: DIP SW1 SETTINGS 1 coin no. -
Page 11: Check Before Operation
6. CHECK BEFORE OPERATION Check the game before operation to prevent the game from working improperly when operated. Checking item： 1) Check if the cord is securely plugged in and without defects. 2) Check the location of game and confirm it is fixed securely. 3) Check if the game case is without defects or burrs. -
Page 12: Adjustment
8. ADJUSTMENT ADJUT THE COIN MECH adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input GRAY COUNTER(+/-) coin-return DC+12V WHITE COIN SIGNAL BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW 50ms MEDIUM Adjusting Switch For 25ms FAST... - Page 13 8.2 ADJUST THE VOLUME Step 1: open the coin door to find the volume potentiometer. PCB BOX VOLUME POTENTIOMETER Step 2: twist the potentiometer to adjust the volume. Twist clockwisely to increase the volume, counterclockwisely to decrease the volume.
-
Page 14: Check And Maintain
9. CHECK AND MAINTAIN ！warning Please check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. Daily Check ITEM DESCRIPTION... -
Page 15: Troubleshooting
10. TROUBLESHOOTING If you have any problems in installing or using the machine, we recommend that you firstly check the following table for possible cause of the problem and solution before asking for technical support: PROBLEM CAUSES SOLUTIONS no sample coin insert sample coin sensitivity for coin was adjusted too adjust the sensitivity, screw the resistance (turn... -
Page 16: Parts Drawing And Parts List
11. PARTS DRAWING AND PARTS LIST 11.1 Chassis assembly NAME / MODEL NO. Fiberglass decoration wolf Fiberglass base for wolf LED light Meter Coin door Coin mech Lock 1285 Speaker 8Ω, 8W Speaker mesh Lock 1396 Cash box Lock 1285 Service door Chassis Wheel... - Page 17 11.2 Main boad assembly NAME/MODEL NO. Transducer AS2-107 Power supply 12V 10A Relay control board Main board Main board holder 11.3 Horse assembly NAME/MODEL NO. Rein ring Rein sleeve Rein shaft Rein Handrail Fiberglass horse Saddle...
- Page 18 11.4 Horse supporting assembly NAME / MODEL NO. Horse metal parts Horse fixed parts Externally threaded bearing Short bearing Internally threaded bearing Belt pulley fixed sleeve Drive belt pulley Limit sleeve Sheave sleeve Belt adjustor Belt pulley short key Motor shaft Motor long key Motor FC71C4-B5 Stairs assembly...
-
Page 19: Schematic Diagram
12. SCHEMATIC DIAGRAM volume output A 4" SPEAKER 15W volume output B R1-2 Bla1-1 volume output B R1-1 Bla1-2 volume output A COIN MECH MAIN BOARD Bla3 REIN SWITCH INDICATOR COIN METER RELAY CONTROL BOARD motor control coin meter indicator co-rotation signal motor control +12V...
