Summary of Contents for MecPower Tecway POLICE MOTO

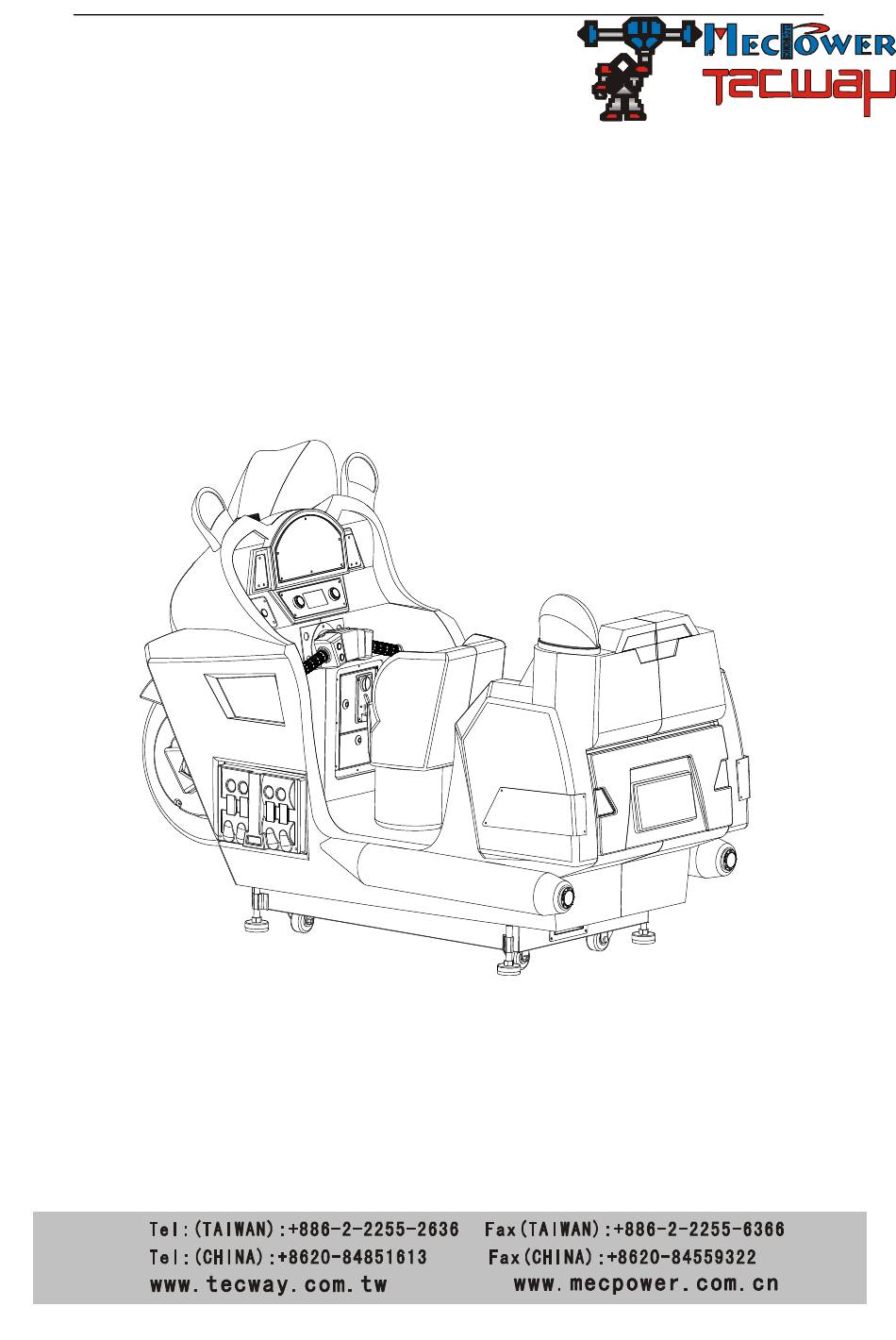

  • Page 1 POLICE MOTO...
  • Page 2 ATTENTIONS Please read the manual first before operating this machine. Please pay attention to the items marked in “note”. Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required.
  • Page 3 3) Please properly adjust the coin mech and the game settings when use at the first time. 4) Please regularly check all the functions of the game when operate. Notes of Maintenance 1) Be sure to check and maintance the game regularly. 2) Switch off the power before replacing the parts of the game.

  • Page 4: Technical Parameters

    TECHNICAL PARAMETERS Voltage: AC 220V/110V（50/60HZ） Max. current: 2.7A/5.5A (Note: The proper voltage and current used accords to the nameplate at the back door of the game.) Max. power: 600W Power (standby mode): 100W Coin size: φ21mm φ31mm(diameter) 1.2mm 2.5mm(thickness) Capacity of coin box: about 1500 pcs with coin size φ25mm*1.5mm Location required: indoor use;...

  • Page 5: Check The Connection

    CHECK THE CONNECTION 1. Check if the inner structure of the game is loose caused by transportation or the terminals drop. 2. Check if the game is grounded. 3. Check if the resistance of the GNDs is more than 100 megohm. 4.
  • Page 6 c) Do not touch the plug with wet hands. d) Make sure the voltage and fuse used are proper. ！ w a rn in g B e fo re in p u tin g th e p o w e r, p le a s e c h e c k th e re sis ta n c e b e tw e e n in p u t p o rt a n d G N D . M a k e s u re th e co n n e c tio n is p ro p e r.

  • Page 7: Check Before Operation

    CHECK BEFORE OPERATION 1. Confirm the power cord is properly plugged and without any damages. 2. Confirm the game is properly fixed. 3. Confirm the cabinet of game is without damages and burrs. 4. Confirm the surface of game is clean and with proper marks. DAILY OPERATION Please properly refer to the instructions above to check the game before operation.

  • Page 8: Game Settings

    GAME SETTINGS Open the door of chassis to find the DIP switches SW1, SW2 on the main board. Main 主机板 board 4 5 6 1 2 3 Main 主机板 board Game settings chart: DIP SW1 SETTING ITEMS 1 COIN 2 COINS NO.
  • Page 9 ADJUSTMENT Adjust the coin mech: adjusting chip of entrance sample coin chute micro-adjust resistance power/signal input GRAY COUNTER(+/-) DC+12V coin reject bar COIN SIGNAL WHITE BLACK GROUND GRAY COUNTER(-/+) COIN signal SW N.O. accurate normal N.C. 100ms SLOW 50ms MEDIUM COIN signal wavelength 25ms FAST adjusting SW...
  • Page 10 Adjust the volume: Descriptions: Open the back door to find the volume potentiometer on the sound board. Sound board Sound 声音板 board Volume potentiometer Twist the potentiometer to adjust the vlume. Counterclockwisely to increase the volume, clockwisely to decrease the volume.

  • Page 11: Check And Maintenance

    CHECK AND MAINTENANCE Daily check ITEMS DESCRIPTIONS Coin mech Check if the coin mech can work properly. START button Check if the START button can work properly. Accelerator Check if the accelerator can work properly. Sound Check if the sound is proper. Motor Check if the motor can work properly.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PARTS PROBLEM CAUSES SOLUTIONS The coin mech need to be Adjust the coin mech. Can not insert adjusted. coin COIN Fake coin in coin mech. Take out the fake coin. MECH The wire of coin signal is loose. Check the connection of coin mech. Coin in coin box is invalid.

  • Page 13: Main Cabinet

    PARTS DRAWING AND PARTS LIST Main Cabinet: 10 11 NAME NAME Waring light Rear right acrylic Black switch Service door Yellow LED light 5W Red light Bulb 10W LED light board Left head light lens Rear left acrylic Right head light lens Windshield Speaker mesh Air outlet...
  • Page 14 Matrix Assembly: NAME Matrix drive board Matrix control board PCB holder Matrix display board Matrix holder Display board acrylic Micro switch Small round button Panel for Meters: NAME Motor Light holder LED light Optical swich Meter panel Shade Rotation pole Meter panel Meter acrylic Indicator...
  • Page 15 Handle: NAME Handle base Handle sleeve Big handle sleeve Handle assembly Handle Optical switch Handle cover ABS Green button Red buton Handle button sleeve Handle sleeve Coin Door: NAME Button switch Meter Coin door assembly Lock 1285 Coin mech Coin box Lock 1396...

  • Page 16: Pcb Assembly

    PCB Assembly: NAME Main board LED drive board Computer host board Wooden board Motor drive board Linking board PCB holder Power supply holder board Solid relay 25A Power supply Power supply holder Chassis: NAME Frame Bearing with pole Bearing base Bearing 6004 Bearing with base Chassis...
  • Page 17 SHEMATIC DIAGRAM Linking Board Bla1-1 W1-1 W/Bla2 Link T- Send TX R1-1 G/Bla3 Link T+ Control CT Br/W4 Receive RX IDC40P Link T- IDC40P Link T+ Alarm SW Bla8 START button Indicator SW Bla7 Speaker SW Grey1 REST SW Bla6 Service SW Matrix Control Board Bla5...
