MecPower Tecway Power storm Manual

Hide thumbs

Advertisement

Table of Contents

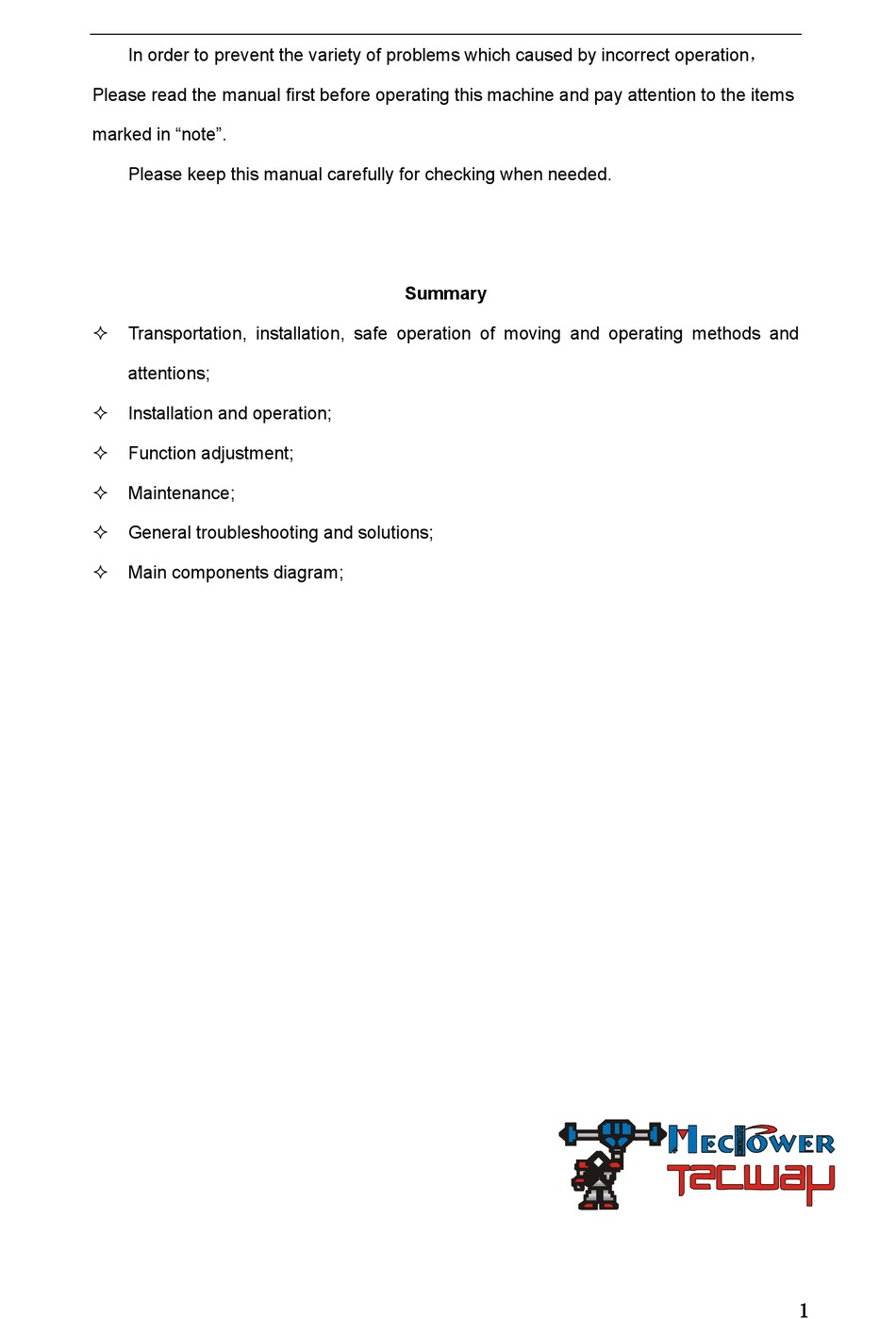

In order to prevent the variety of problems which caused by incorrect operation，
Please read the manual first before operating this machine and pay attention to the items
marked in "note".
Please keep this manual carefully for checking when needed.
Transportation, installation, safe operation of moving and operating methods and
attentions;
Installation and operation;
Function adjustment;
Maintenance;
General troubleshooting and solutions;
Main components diagram;
Summary
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power storm and is the answer not in the manual?

Questions and answers

Related Manuals for MecPower Tecway Power storm

Summary of Contents for MecPower Tecway Power storm

  • Page 1 In order to prevent the variety of problems which caused by incorrect operation， Please read the manual first before operating this machine and pay attention to the items marked in “note”. Please keep this manual carefully for checking when needed. Summary ...
  • Page 2 Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
  • Page 3 and the game settings when use at the first time. Please regularly check all the functions of the game when operate to prevent dysfunction. Notes of Maintenance 1) Be sure to check and maintain the game regularly. 2) Switch off the power before replacing the parts of the game. 3) The parts for replacement should be the same model as the old one.

  • Page 4: Game Introduction

    It will be very essential and popular in amusement center. Power storm is an animation and motion experience as one of the machine, when guests watch the amazing animation, can experience the visual stimulation, strong power, wind power, high and low sounds right surround sound and so on to make it perfect, immersive feeling.
  • Page 5 PLAYING TIPS Ride on the power storm and insert coin, press the button to choose what you want to start， 1)There are 4 shorts: Snow Storm ,Space Travelling , Chengdu J-20 ,The Great Wall of China.2) Wait for a few seconds after the broadcast, the picture will be go on blizzard or...

  • Page 6: Technical Parameter

    TECHNICAL PARAMETER VOLTAGE: AC 220V/110V（50/60HZ） MAX. CURRENT：13A/26A (Note: please refer to the nameplate located on the back of the games to check actual usage of voltage.) MAX. POWER: 2860W STANDBY POWER: 460W COIN SIZE：φ21mm ~ φ30mm (diameter) 1.2mm ~ 2.5mm (thickness) CAPACITY OF COIN BOX: 1200pcs of coins with coin size φ25mm*1.5mm LOCATION REQUIRED: -5 ~ 40℃, humidity is less than 90%.
  • Page 7 Chassis components size：L2030mm*W1400mm*H2200mm 1400 2030 Chassis components size：L1900mm*W1750mm*H2200mm 1900 1750 Parts shipped with the game: LED light green micro switch 1285 ＃ 1396 ＃ power cord manual...
  • Page 8 MOVEMENT Direction of movement diagram： Wrong direction 错误的出力方向 Seat components movement diagram: Wrong direction 错误的出力方向 Wrong direction 错误的出力方向 correct direction 出力方向 Note: when the road surface is uneven during moving or when you tilt the machine, please pay attention to the strength and hang the chassis in the air to prevent damage to the air sac.
  • Page 9 WARNING  Please power off the game first and pull out the cord, then move the game.  Prevent hitting, rubbing the games when move the games, otherwise it will damage the appearance of the game.  Please do not carefully move, turnover, transport the game; otherwise it will destroy the game.

  • Page 10: Installation

    Please follow the direction below to install the game. Choose the location for installation: Put the power storm in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior. Choose the proper location for installation, please follow the below drawing to install.
  • Page 11 2) Put the seat part and chassis part together again and fix with six M8 * 35 screw, connect the connector and the seat air supply pipe joint. M8*35平 内 六 角 机 丝 M8*35 screw M8*35平 内 六 角 机 丝 M8*35 screw M 8*35平...
  • Page 12 Fix the machine: The machine must be laid flat on the ground, fixed machine need to adjust the anchor down, make the anchor bear the gravity of the whole machine, caster wheel off the ground about 10 mm (note: six fixed anchor is fixed to the ground, to prevent the seat vibration when the machine moving.
  • Page 13 Check and set before connecting the power: 1) Please check the machines internal structure for transportation vibration caused by loose, line connection terminals should not drop out. 2) Check the machine grounding line should be over the ground connection. 3) Check the machine's power input at both ends of the impedance of the ground should be greater than 100 megohm.
  • Page 14 Attentions: Please make sure the power cord is not pressed by wheel, foundation, etc. Otherwise, it will damage the wire to cause short circuit, even fire. Do not use strong power to extend and wring the wires. Do not make the wire be near to the high temperature object.
  • Page 15 Check before operation: Check the game before operation to prevent the game from working improperly when operated. Checking item： Check if the cord is securely plugged in and without defects. Check the location of game. Check if the game case is without defects or burrs. Check if the game without dirt and properly stuck on with marks.

  • Page 16: Game Settings

    GAME SETTINGS: Keys for setting Choose the content and result need to set, according to the set table toggle switch (ON or OFF), set up the game coin. The SW ON the motherboard has eight small switches, switch the ON to switch conduction;...
  • Page 17 ADJUSTMENT adjust the coin mech adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input GRAY COUNTER(+/-) coin-return DC+12V WHITE COIN SIGNAL BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW 50ms MEDIUM Adjusting Switch For 25ms FAST...
  • Page 18 Adjust the volume: Power amplifier plates can be adjusted to sign: 功放板 Amplifier board 功放板 Amplifier board Volume for right seat 右边座椅音量 左边座椅音量 Volume for left seat 低音音量 Bass level Descriptions: Adjust the volume by twisting the volume potentiometer: twist clockwisely to increase the volume, counterclockwisely to decrease the volume.
  • Page 19 Pull up valve. Clockwisely turn the valve to increase air pressure, counterclockwisely to decrease air pressure. Pull up the valve. Clockwisely turn the valve to increase air pr 拉起气压调整阀 essure, counterclockwisely to decrease the p 顺时针拧动增大气压 ressure. 逆时针拧动减小气压 Warning: The proper air pressure is from 0.2 to 0.5MP. The air pressure can not be less than 0.15MP and higher than 0.55MP.
  • Page 20 CHECK AND MAINTAIN ！warning  Please check and maintain the game by technicians.  Please power off the game when check and maintain.  Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. Daily Check ITEM DESCRIPTION...

  • Page 21: Troubleshooting

    TROUBLESHOOTING If you have any problem in installing or using the machine, we recommend that you first check the following table for possible cause of the problem and solution before asking for technical support: PROBLEMS CAUSES SOLUTIONS no sample coin insert sample coin sensitivity for coin was adjusted too adjust the sensitivity, screw the...
  • Page 22 PARTS DRAWING AND PARTS LIST Computer part: NAME NAME Top trapezoid blister 15*15 fan LED light strip blue 0.2m 15*15 fan mesh Fiberglass Door for fan 47” LCD monitor Service door Blister for monitor frame Lock 1285# Yellow & black blister for side Fan mesh light Holder 1 for vent pipe...
  • Page 23 Side light: NAME Big wheel blister Yellow ring blister LED light strip white 3-color chasing light board Main board component: NAME Transformer 220V/18V 80W Transformer 220V/18V 150W Solid relay 25A Signal amplifier Amplifier Main board I/O board Computer host 6P connector Signal converting board Socket box Power supply...
  • Page 24 Pneumatic assembly: NAME Air compressor 780W High-pressure air pipe Air pipe Solenoid 2L 030-08 Filter Valve Protection switch Air tank Protection valve Barometer AC contactor CJXZ-1810 AC capacitor CBB60 Seat Part - top: NAME U shape blister White light lens 7-color light strip 1.2m Fiberglass...
  • Page 25 Seat assembly: NAME Speaker blister 4” speaker Seat fiberglass Big light Chasing light white Acrylic 1 Acrylic 2 Acrylic 3 Right blister for seat chassis Seat chassis 3-color chasing light board Vibrator LED light strip blue 0.4m Left blister for seat chassis Left handrail Right handrail Seat part –...
  • Page 26 SCHEMATIC DIAGRAM FOR AIR CIRCUIT SYSTEM filter reducing valve air valve air sac master air valve aiir compressor cheak calve pressure indicator pressure IN auto pressure switch air tank...

  • Page 27: Schematic Diagram

    SCHEMATIC DIAGRAM Bla/R1 Bla/R1 Bla5 Bla/R2 middle coin mech speaker 1 for left seat W/Bla1 Bla/R2 R/W2 Bla/R3 3- color G/W2 chasing Bla/R4 middle Bla4 free sw speaker 2 for left seat B/W2 light Bla/R3 CON3 vibration on / off sw Br/W1 video 1 start sw Y/W1...
