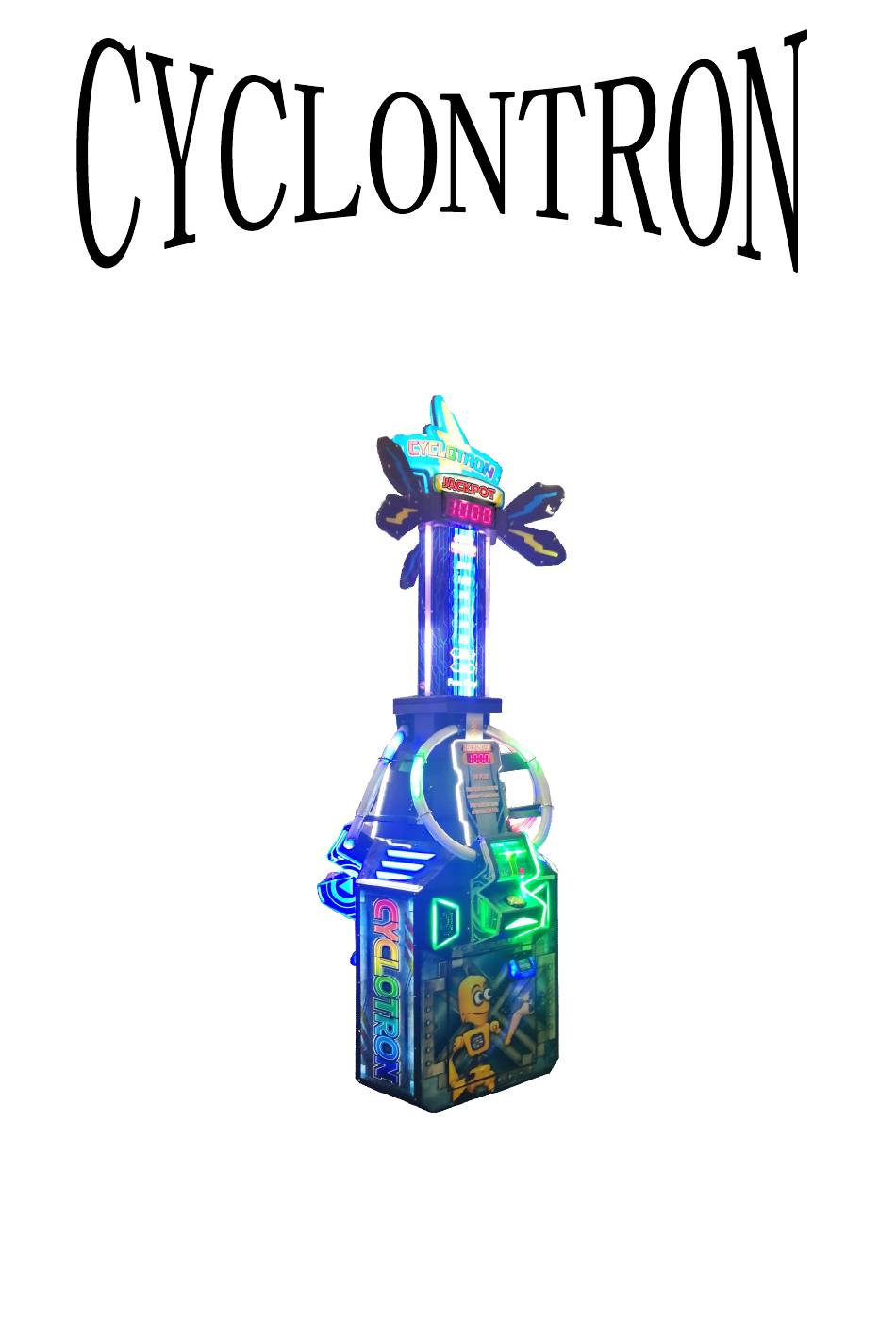

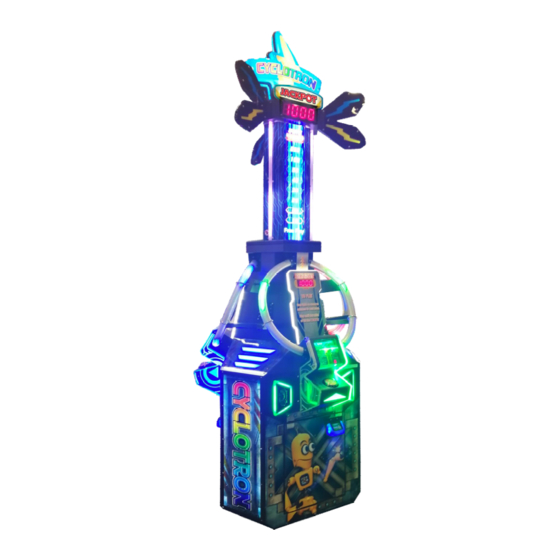

  • Page 1 OPERATION MANUAL...

  • Page 2: Table Of Contents

    CONTENT 1、Specification & Technical Parameter ..............1 2、Spare Part ......................2 3、Trouble Shooting ....................3 4、Game Instruction ....................4 4-1 Game Instruction ...................4 4-2 Operate Menu....................4 4-3 Control Signal & Instruction................5 5、 Part List......................6 5-1 Mechanical Part..................6-10 5-2 Coin Assy....................11 5-3 Speaker Assy....................12 5-4 Fuse &...

  • Page 3: 1、Specification & Technical Parameter

    1、Specification & Technical Parameter unit：mm Voltage： AC 220V±10% 50Hz Power Consumption：mix475 W ～ max 545 W Dimension：L1175×W1149×H3175（mm） Weight ：about 248 kg Environment Condition：Temperature(Indoor): -10℃～+40℃； Humidity：≤90%； Air Pressure：86Pa～106Pa。 Warning： After shutdown, please wait for 1 minute before turning on.。 Attention： Understanding if the product is continuously improved and the contents involved are changed without further notice。...

  • Page 4: 2、Spare Part

    2、Spare Part List Spare Part List： Item Spec./Material Unit Drawing Remark Manual GU0711 Fuse Power cord 1.5M Micro switch...

  • Page 5: 3、Trouble Shooting

    3、Trouble Shooting Failure Reason Trouble Shooting Do not adjust coin acceptor. Adjust coin acceptor. Do not insert Has fake coin. Take out the fake coin. coin No 12V voltage input. Check the power supply voltage and wire. Check the ticket drive signal wire. Drive signal wire of ticket dispenser loosen.

  • Page 6: 4、Game Instruction

    4、Game Instruction 4-1 Game Instruction 1.Insert coin and start game. 2. After the game opens, the ring lights rotate rapidly, and the lights reach the designated position and press the button at the right time. 3. Can 3-players game！ 4-2 Operate Menu Monitor Start button Control panel...

  • Page 7: Control Signal & Instruction

    4-3 Control signal and instruction 1. Looking up the attached IO table and schematic diagram, we can get the machine input and output corresponding to each wiring position from the motherboard plan. 2. DIP adjusts the reference IO table, capital letters for factory settings, users can adjust according to the operation situation.。...

  • Page 8: 5、Part List

    5、Part List 5-1 Mechanism Part Overall Light box assy Monitor assy. Lifting mechanism Cabinet...
  • Page 9 Light Box Assy.
  • Page 10 No./Standard No. Item Spec./Material Light box fixing TSL-04-02 Double-sided black MDF plate Light box Plastic TSL-05-01 Organic board (screen printing) Left/Right 1 Absorption Plastic-absorbing TSL-01-36 Stainless steel 201 fixture 2 Plastic-absorbing TSL-01-35 Stainless steel 201 fixture Top lamp box TSL-01-13 Q235 fixed angle iron Small lamp box...
  • Page 11 Lifting Mechanism No./Standard No. Item Spec./Material TSL-02-04 Screw rod Screw rod SFU2510 TSL-WG-02 Bearing seat UCF204 TSL-01-19 Fixed seat Q235 TSL-01-18 Fixer Q235 TSL-02-02 Connection sleeve Q235 TSL-01-10 Motor Plate Q235 TSL-02-05 Rotating shaft 120W turbine040 Deceleration TSL-WG-01 Motor ratio 1：100 24V output 18RPM...
  • Page 12 Monitor Assy. No./Standard No. Item Spec./Material Lattice Block Assembly TSL-01-48 Q235 Diagram Left/right TSL-01-05 Lamp fixing angle iron Electrolytic plate each for 3 Top lamp strip organic TSL-03-14 Transparent organic board board P2.5 full TSL.DQ-23 Lattice screen color/64*64/16B/HT/3mm Installation hole TSL-01-09 Lattice fixing plate Q235...

  • Page 13: Coin Assy

    5-2 Coin Assy. No./Standard No. Item Spec./Material TSL-WG-03 Lock 0711 right side long lock TSL.DQ-11 Coin acceptor LK100M+ TSL.DQ-10 Ticket dispenser CL-022Q-386 TSL-WG-10 Ticket box Q235 TSL-01-03 Coin box Q235 TSL-WG-04 Lock 0711 right side short lock TSL-01-55 Meter frame Electrolytic plate TSL.DQ-12 Digital counter...

  • Page 14: Speaker Assy

    5-3 Speaker Assy. No./Standard No. Item Spec./Material 4寸8Ω15W TSL.DQ-05 Medium tweeter Speaker light TSL-WG-07 Grinded Organic Tablets cover TSL-01-26 Speaker cover Q235 5-4 Fuse and Power Assy. No./Standard No. Item Spec./Material TSL-01-50 Connection box A Electrolytic plate TSL.DQ-34 Fuse base 10A/UL certify TSL.DQ-36 Ground Wiring Pillar...

  • Page 15: Electrical Installation Assy

    5-5 Electrical Installation Part...
  • Page 16 No./Standard No. Item Spec./Material Unit 24V power supply TSL.DQ-07 LRS-350-24V 12V power supply Power supply TSL.DQ-08 LRS-350-12V TSL.DQ-09 5V power supply LRS-350-5V TSL.DQ-01 Main host A55/6300/2G/16G TSL.DQ-02 I/0 board WJDC-V1.1 Amplifier TSL.DQ-03 GC-2.0 board Light control TSL.DQ-04 XXH-170219B board Convex transparent black edge TSL.DQ-18 Big button /100...

  • Page 17: Art Part

    5-6 Art Part...
  • Page 18 No./Standard No. Item Spec./Material TSL.HM-01 Side board menu Grinded backing glue TSL.HM-02 Cabinet decoration menu Grinded backing glue TSL.HM-03 Button menu Grinded backing glue TSL.HM-04 Lightning right menu Organic Film Printing TSL.HM-05 Lighting left menu Organic Film Printing Organic Film Printing TSL.HM-06 Dot-matrix menu TSL.HM-07...
  • Page 20 No./Standard No. Item Spec./Material White adhesive TSL.HM-15 No Touch Label TSL.HM-16 Repairing door label White adhesive TSL.HM-17 Counter menu White adhesive TSL.HM-18 Switch menu White adhesive White adhesive TSL.HM-20 Indoor label White adhesive TSL.HM-21 HP label TSL.HM-22 GND label White adhesive TSL.HM-23 Fuse current label White adhesive...

  • Page 21: Electrical Part

    5-7 Electrical Part...
  • Page 22 No./Standard No. Item Spec./Material TSL.DQ-43 Projector light DC12V/ Tesla Customization 2835/12V/120 珠/Blue/0.3m TSL.DQ-44 Floor light 1206/12V/60 珠/Green/0.4m TSL.DQ-45 1P speaker light 1206/12V/60 珠/Blue/0.4m TSL.DQ-46 2P speaker light 1206/12V/60 珠/Red/0.4m TSL.DQ-47 3P speaker light 2835/12V/120 珠/Green/0.5m TSL.DQ-48 1P Cabinet side lights 2835/12V/120 珠/Blue/0.5m TSL.DQ-49 2P Cabinet side lights...
  • Page 23 Game panel instruction 2835/12V/120 珠/White/0.4m TSL.DQ-66 light No./Standard No. Item Spec./Material Game panel ticket 2835/12V/120 珠/White/0.15m TSL.DQ-67 counting lamp SK9822/5V/144 珠 TSL.DQ-68 Two-sided pipe lamp /Colorful/0.818m SK9822/5V/144 珠 TSL.DQ-69 Cabinet target light /Colorful/0.195m TSL.DQ-70 Pole light SW2811/12V/Colorful/0.8m 2835/12V/120 珠/White/0.65m TSL.DQ-71 Top Lightning Lamp 2835/12V/120 珠/White/1.75m TSL.DQ-72...
  • Page 24 5-8 Organic part...
  • Page 25 No./Standard No. Item Spec./Material TSL-03-01 855 Lamp sticker Transparent PVC TSL-03-02 Side menu Transparent organic board TSL-03-03 Side organic menu Transparent organic board TSL-03-04 Large light guide Transparent organic board Grand Prix Lottery TSL-03-05 Transparent organic board Lamp Fixed Board TSL-03-06 Edge barrier organic Organic tablets...

  • Page 26: 6、Io Sheet

    TSL-03-38 Arrow Fluorescent Green Organic Tablets 6、IO Sheet Input： 2019/3/1 INPUT CONTENT INPUT CONTENT INPUT CONTENT INPUT CONTENT JP2_26 1P coin JP2_16 3P refund feedback JP2_6 JP3_24 JP2_25 1P confirm button JP2_15 3P banknote machine JP2_5 JP3_23 JP2_24 1P refund feedback JP2_14 Test button JP2_4...
  • Page 27 Output： Note:JP5 is for UNL2803 Output OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT JP6_1 JP6_9 JP6_17 JP6_2 JP6_10 JP6_18 JP6_3 JP6_11 JP6_19 JP6_4 JP6_12 JP6_20 JP6_5 JP6_13 JP6_21 JP6_6 JP6_14 JP6_22 JP6_7 JP6_15 JP6_8 JP6_16 Output： Note:JP4 is for FDS9926 Output OUTPUT CONTENT OUTPUT...
  • Page 28 Communication section: Item Content COM1 Connect PC USB USB_B Item Content JP7_16 Big digital tube TCH JP7_15 Big digital tube CLK JP7_14 Big digital tube DAT 1P TCH small digital tube-JP grand prize JP7_13 overlay lamp-JP Digital tube 1P CLK small digital tube -JP grand prize JP7_12 overlay lamp -JP Digital tube 1P DAT small digital tube -JP grand prize...
  • Page 29 6-1 Backstage Instruction Setting Backstage setting main menu Game Setting menu GameSetting : Game-related settings GameReset：Game Reset BookKeeping：Game Records Exit & Save : After saving the background operation, exit the background and return to the game Exit :Do not save background operations, exit the background directly back to the game...
  • Page 30 GameMode: Clear Ring / One Shot / Stop Light / Fill Tower （Game Mode） FreePlay: ON / OFF （Free Play） Coins / Play : 1-9 (Number of currencies required for each game) TicketSetting : ticket setting LV1-LV9，Rang 1-2000 SpeedSetting : Set the speed of light spot and adjust the range of speed of light spot 1-10 SizeSetting : Set the light spot size, light spot size adjustment range 1-100 Hit Button Delay (sec): 0 - 1 （Interval time between capture keys）...
  • Page 31 Game Reset BookKeeping Reset Configs ： Game Reset Clear Records：Clear game record Clear Coins：Clear coin Clear Tickets：Clear remain tickets Separate statistics P1/P2/P3/Total coins and tickets Coins：coins out Tickets: ticket out Average: Number of tickets issued / Number of coins put in...

  • Page 32: 7、 Repairing Method

    7 、Simple Maintenance Method of Machine Please prepare the following disassembly tools before repair Item Spec. Drawing Remark Cross screwdriver Inner hexagonal 2.5mm screwdriver Long ladder Make sure the parts are complete before installation. Installation & Test The replaced site must be smooth and firm. After the machine is placed, the adjusting seat should be fixed horizontally on the ground；...
  • Page 33 Replacement Method of Dot Matrix Screen 1.1 Removal of dot matrix out-of-screen organic cover Note: When performing maintenance, pay Removal of Fixed Screw with attention to power off 2.5MM Internal Hexagonal...
  • Page 34 1.2 Remove lattice screen and fix sheet metal Remove Fixed Screw with Cross Screw Cutter 1.3 Replacement of lattice screen for demolition Unplugging Connection Power Wire and Understanding Wire...
  • Page 35 Note: Installation Removal of fixed screw Pull direction matrix requiring replacement of screen components screen lattice screen with directly after pulling cross screwdriver out the power cord and understanding the wire...
