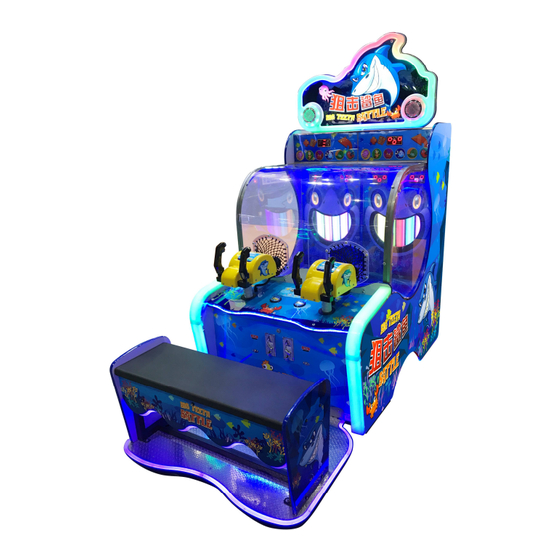

Summary of Contents for MecPower Tecway Big Teeth Battle

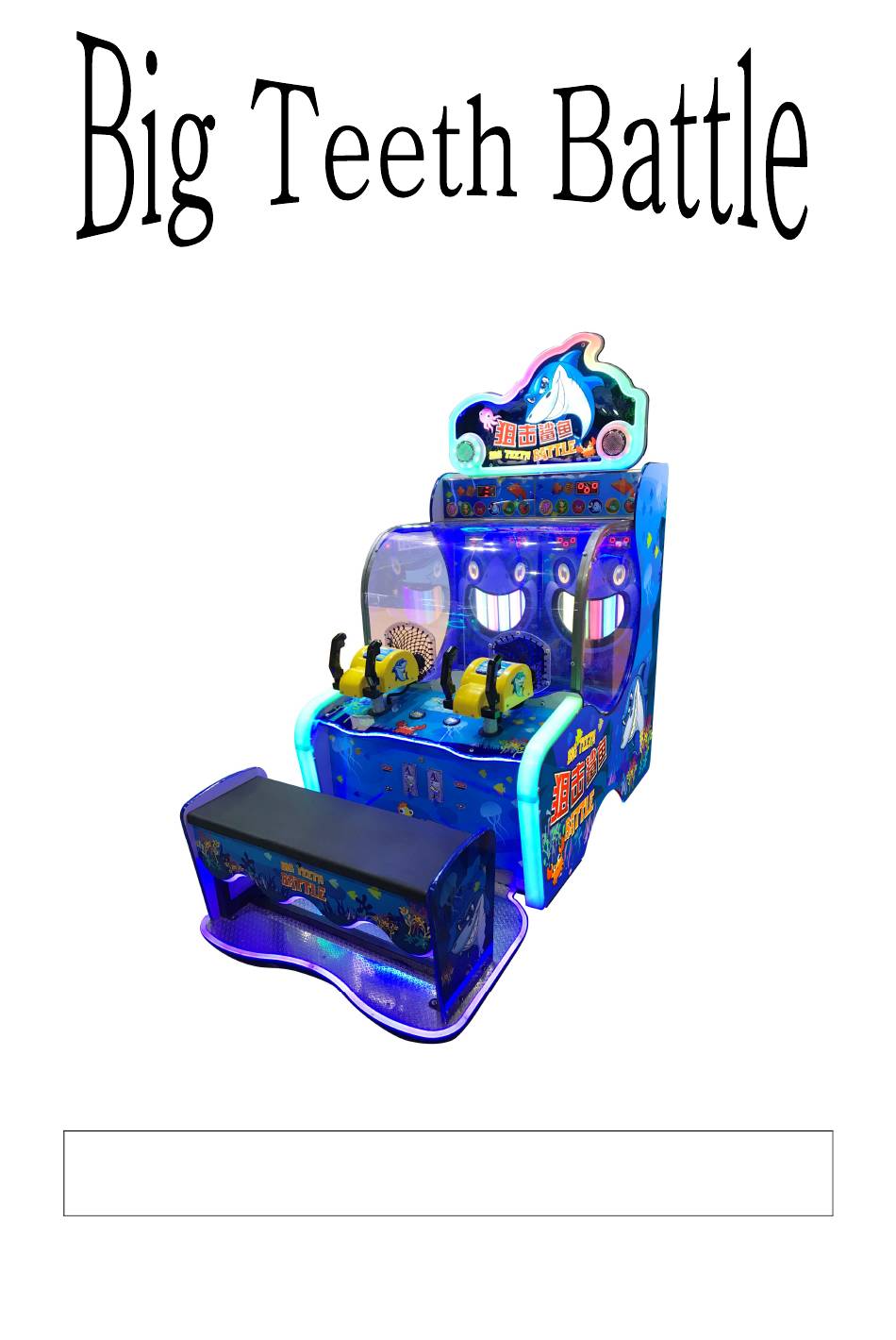

  • Page 1 OPERATION MANUAL...
  • Page 2: Table Of Contents

    CONTENT 1、Specification & Technical Data........1 2、Spare Part List..........2 3、Trouble Shooting..........10 4、Game Instruction..........11 4-1 Game Instruction ........... 11 4-2 Operate Menu ..........11 4-3 Control Signal & Instruction ....... 12 5、Part List............6 5-1 Mechnical Part ........... 6-19 5-2 Coin Assy.
  • Page 3: 1、Specification & Technical Data

    1、Specification & Technical Data Unit:mm 1) Voltage: AC 220V±10% 50Hz 2) Power Consumption:mix150W ~ max280W 3) Dimension:L2085×W990×H1945(mm) 4) Weight :About 214kg 5) Environment:Temperature(Indoor): -10℃~+40℃; Humidity:≤90%; Air Pressure:86Pa~106Pa。 Warning: To re-start the machine for 1 min after power off。...
  • Page 4: 2、Spare Part List

    2、Spare Part List Part List: ITEM Spec./Material UNIT DRAWING REMARK Manual Ticket door, coin 1258 door, repair door 1396 Coin box Fuse 6.3A Power cord 1.5M Long micro switch Micro switch Ball Micro switch Use for button...
  • Page 5: 3、Trouble Shooting

    3、Trouble Shooting Failure Reason Solution Do not adjust the coin acceptor. Adjust the coin acceptor Can not insert Have the fake coin Take out the fake coin coin No 12V input for ticket dispenser. Check the power supply voltage and wire. Drive signal wire loosen.
  • Page 6: 4、Game Instruction

    4、Game Instruction 4-1 Game Instruction 1. Insert coin and start game. 2. Players move the gun(left/right,up/down) to aim the target to get score. 3. In the game time, the higher score you get the more ticket you earn. 4. Two players mode. 4-2 Operate Menu Teeth Control cabinet...
  • Page 7: Control Signal & Instruction

    4-3 Control signal & Instruction 1. Check the attach IO sheet and diagram can see the place for output & input on the main board. 2. DIP adjustment can refer to IO sheet, capital letter is for factory setting, customer can adjust according to the operation suitation. 3.
  • Page 8: 5、Part List

    5、Part List 5-1 Mechanical Part Overall Light box Shooting mechanic Teeth mechanic Ball out mechanic...
  • Page 9 Light box assembly Name Spec/Material Light box cover Transparent plastic Speaker cover Light cover of speaker Plastic light box White plastic Speaker column Speaker Light barrier Fixer of plastic light box Back plate of Plywood light box Sheet metal Light box holder Q235...
  • Page 10 Teeth mechanism Name Spec/Material Strong magnet d6*D20*H5 Support seat Stainless steel Length 380mm Tooth axis chrome-plated optical axis Septum sleeve Stainless steel Bearing F688Z Stop swing rod Stainless steel Teeth Teeth back plate Stainless steel 201 Back stop rod Stainless steel 201 Upper pendulum Stainless steel 201 sleeve...
  • Page 11 Joint pads Stainless steel 201 Motor fixer sheet Stainless steel 201 metal Motor 25RPM Shooting mechanism...
  • Page 12 Item No. Name Spec/Material ZYTD38SRZ-R(55) Motor 24V3000RPM Adjustment plate Stainless steel Rib bearing F688 Synchronous tooth Stainless steel plate Pillar(common parts) White nylon Wheel for sending silica gel ball(common parts) Shooting motor wheel Aluminum alloy seat Pipe Q235 Limit rubber(common Polyurethane parts) Side vertical plate...
  • Page 13 Sending ball mechanism Name Spec/Material Ball rack Stainless steel 201 Friction wheel A Rubber Friction wheel seat A Aluminum alloy Modulation plate Stainless steel 201 Mixing ball plate motor 24V 25RPM Sending ball motor 24V 25RPM Mixing ball plate Stainless steel 201 Slide plate A Stainless steel 201 Slide plate B...
  • Page 14 5-2 Coin selector assembly Name Spec/Material Coin selector Electronic operated Ticket dispenser Ticket box White plastic Coin box iron AH78 Lock 78 short lock Counter bracket Black plastic 6 bit counter C-012 Sound regulator Black plastic Reset button Red button...
  • Page 15 5-3 投币器说明 When the coin stuck in coin selector, pull button as shown in photo, the coin will be withdrawn from it. If the coin can not be withdrawn, it is necessary to open the coin acceptor and remove the coin. Electronic operated coin selector instruction:...
  • Page 16 5-4 Speaker assembly Name Spec/Material Round speaker 4 inch 8Ω15W White plastic cover Plastic Speaker light board Red,Green,Blue RGB Speaker net Silver 5-5 Fuse and power components Name Spec/Material Wire box Black plastic Fuse base HJMF-527 Ground terminal Switch Black plastic Power outlet Power cable 6.3A...
  • Page 17 5-6 Electrical installation components Name Spec/Material Unit 12V 150W Power Supply 24V 150W Main board SXKJ-2013.PCB VER1.0 Solid state relay SSR-10DD 12V Light control XXH-150703A board Filter YB10A1 SMG15102-3W.PCB V3.0 Exhaust fan net Exhaust fan 1804U3A 001 12V 6 bit counter C-012 Counter bracket Black plastic...
  • Page 18 5-7 Artwork Name Spec/Material Image of Light box Sticker Image on two sides of Sticker Bilateral machine Image on console Sticker Image on front door Sticker Main image A Sticker Main image B Sticker Image on shooting Sticker mechanism Image on back of seat Sticker Image on two sides of seat Sticker...
  • Page 20: Io Sheet

    Name Spec/Material Ticket gate White sticker Fork label White sticker “Do not touch” label White sticker Repair label White sticker High temp./voltage White sticker label High voltage label White sticker Ground wire label White sticker White sticker Fuse current label Indoor use label White sticker Name plate...
  • Page 21 5-8 Electrical parts...
  • Page 22 Name Spec/Material Lights on light box 5050 white light 1.8m Two side light of WS2811B 60 beads 12V/0.8m console Light of tooth LED-5050.PCB V3.1 RGB 1206 light belt white light Light of shark’s eye width 6mm length 0.35m 3528 light belt blue light Light of console Width 8mm length 0.8m Light at machine...
  • Page 23 Item Setting Demo music Free play Bonus Additional point Coins increase extra points Input 1: INPUT Content INPUT Content 1P Coin signal 1P Toothing motor J1-1 (1) J1-9 (9) 2P Coin signal 2P Toothing motor J1-2 (2) J1-10 (10) 1P service 1P ball shooting button J1-3 (3)...
  • Page 24 Input 2: INPUT Content INPUT Content J7-1 (1) 1P Target Score 1 J7-9 (9) 2P Target Score 4 J7-2 (2) 1P Target Score 2 J7-10 (10) 2P Target Score 5 J7-3 (3) 1P Target Score 3 J7-11 (11) J7-4 (4) 1P Target Score 4 J7-12 (12)...
  • Page 25 Press the SERVICE button again to enter the DIP switch number display, then the digital tubes LED<1>1,2 will display the corresponding number, others display 33. All digital tubes flash three times then stop. Play the third segment music at the same time. Press the SERVICE button again to enter the I/O testing, then the I/O follow spot output, digital tubes display 4444.
