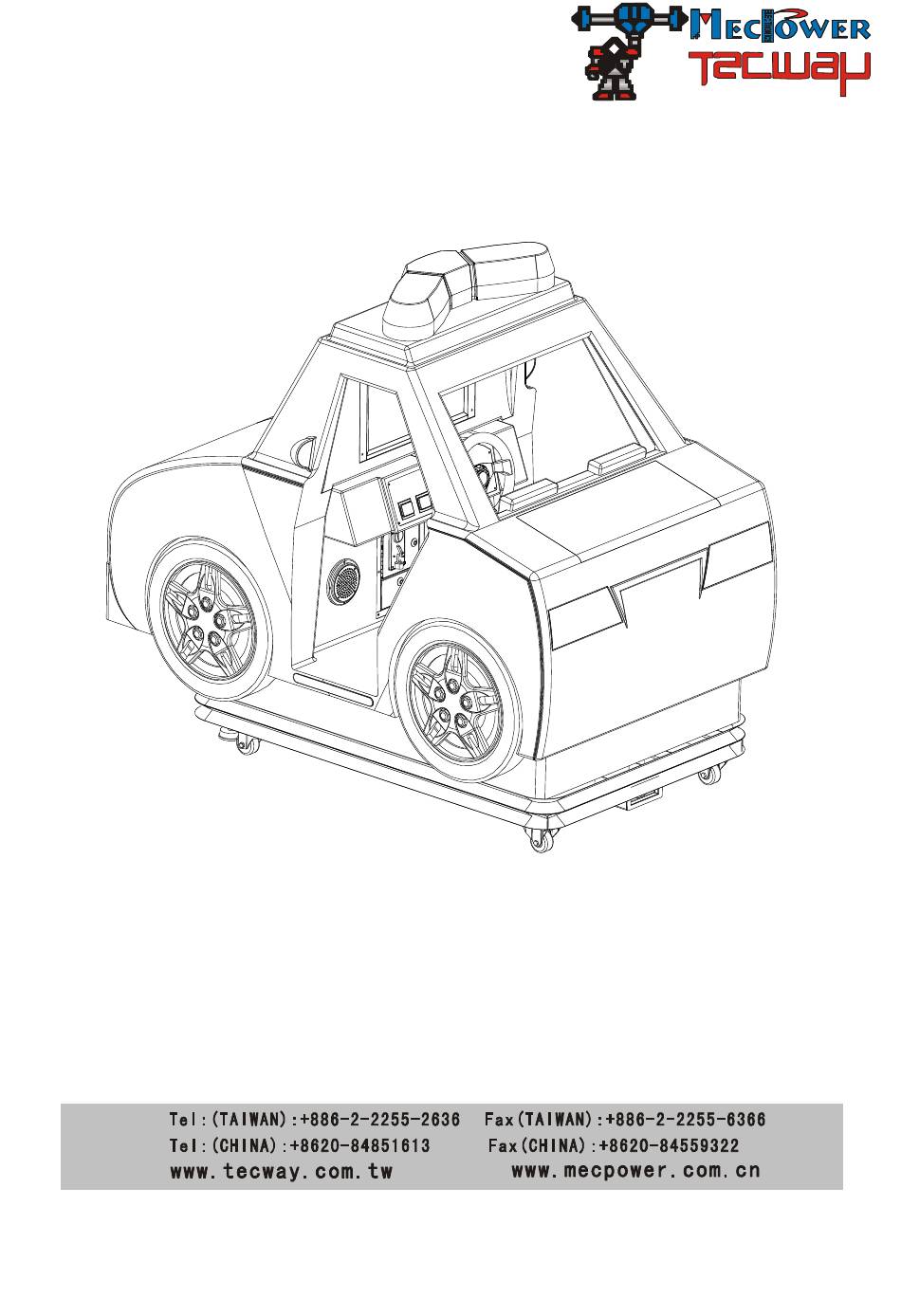

  • Page 1 Toddler Police Operation Manual...

  • Page 2: Table Of Contents

    CONTENT 1、GAME INTRODUCTION ................2-3 2、GAME INSTRUCTION ..................3 3、TECHNICAL PARAMETER ................ 4-5 4、GAME SETTING & OPERATION ..............6 & ............6 GAME SETTING BUTTON INSTRUCTION ..................7-8 SETTING METHOD ..................8 SETTING INSTRUCTION 5、ADJUSTMENT ....................8-9 ....................9 COIN ACCEPTOR ......................

  • Page 3: 1、Game Introduction

    1. Game Introduction The unique, beautiful, streamlined appearance and interesting game content of the Toddler Police make it very popular with young players in the playground. Toddler Police is another masterpiece developed by our company aiming at the content research of children's favorite games, combined with the new popular elements of games.

  • Page 4: 2、Game Instruction

    precision is adjustable, and the token is stable and reliable； Rotating components are stable and reliable； Game playing, stimulation and operability are very entertaining； The operating income ratio can be adjusted according to the actual situation. 2. Game Instruction After the start of the game, the police car is controlled to catch Game Instruction：...

  • Page 5: 3、Technical Parameter

    3. Technical Parameter Voltage：AC220V/110V（50/60HZ） Max. / Min. Current：0.5A/1.1A （Note: For actual voltage and current, please refer to the machine nameplate.） Max Power：70W Standby power：270W Use token size range：φ21mm ~ φ30mm Thickness range of tokens used：1.2mm ~ 2.5mm Coin box capacity：φ25mm*1.5mm about 2050 pieces Environment：...
  • Page 6 Spare Part： Drawing Item Spec./Model 5A （ Small ） Fuse 2pcs 1285 ＃ 2pcs 1396 ＃ 2pcs Power cord Manual...

  • Page 7: 4、Game Setting & Operation

    4. Game Test & Setting Operation Game test & button setting Open the coin door and find the setting board Coin door Setting board SELECT Select Test TEST ENTER Confirm Setting board Free SERVE ERASE Coin door TEST: TEST button ：Enter/Exit test menu SERVE: FREE play button：Free Play SELECT: Select button：...

  • Page 8: Setting Method

    4.2 Setting Method Setting operation method: Press the "TEST" key on the settings panel to enter/exit the game content setting interface; Press the "SELECT" key on the settings panel to select the items that need to be changed; Press the "ENTER" on the settings panel to change the item content.
  • Page 9 the screen are Chinese subtitles. 5）Presentation screen sound effect selection: This setting determines whether to play standby music when the machine is standby. If set to "sound effect", the machine will play standby music in standby state. 6） Restore factory settings: This setting determines that all game parameters are restored to factory settings.
  • Page 10 Volume Adjustment 1： Open the repair door of the children's police car, find the volume potentiometer on the sound board, and twist the volume potentiometer to adjust the volume of the machine. Turning potentiodynamic device clockwise makes the output volume of the machine larger, and turning potentiodynamic device counterclockwise makes the output volume of the machine smaller.

  • Page 11: Coin Acceptor

    6. Trouble Shooting Trouble Shooting： Fault Failure Trouble Shooting No sample coin Put the sample coin in coin go through Do not insert coin High sensitivity Adjust the sensitivity of coin acceptor coin acceptor damage Replace the coin acceptor. Control wire not connect Connect the control wire Warning light damage Replace the warning light...
  • Page 12 7. Part Schematic Diagram & Part List Wooden cabinet diagram & Part List Item/No. Item/No. Fiberglass body Micro switch Speaker net(4"） Square button Speaker cover Pedal accelerator Speaker light Wheel suction Speaker(4"8Ω30W) Running belt(40cm) Spot light(whiteφ32) Luminescent organic chip Spot light(yellowφ32) Luminescent Organic Sheet Fixed Wood Board Width lamp cover Reflector...

  • Page 13: Warning Light Assy. & Part List

    7.2 Warning light assy. & Part List Item/No. Alarm lamp suction Alarm lamp Alarm lamp installation board Monitor Assy. Diagram & Part List Item/No. Monitor fixed frame Monitor glass Monitor 19" Monitor fixed code...
  • Page 14 Steering wheel assy. Diagram & Part List 08 09 05 06 Item/No. Item/No. Steering wheel Shim Sliding Ring Installation Code Steering Wheel Decorative Organic Slices Small sliding ring Steering wheel axle mounting base Steering wheel axle Friction floor Bearing 61802 friction plate Bearing 6202 Friction switch...
  • Page 15 Coin box assy. Diagram & Part List Item/No. Setting board Meter Single coin gate Analogical coin acceptor Lock 1285 Lock 1396 Coin box Coin box hardware rack Main board assy. Diagram & Part List Item/No. Item/No. Power supply 12V12.5A5V3A 1 Electrical Installation Board MOS drive board Android main board...
  • Page 16 Under frame assy. Diagram & Part List Item/No. Item/No. Movable castors 2.5" Hexagon nut M16 Fixed foot M16 Self-aligning ball bearing 2202 Motor sprocket 10A 5 分 Dust cover Chain 10A 5 分 First under frame TR bearing UCP204 Joint bearing PHS20 Fine nut 1-4 Self-aligning ball bearing 2304 Left and Right Bearing base...
  • Page 17 8. Schematic Diagram Filter " LED Monitor +12V Power input Bla9 15 P joint wheel running light wheel running light wheel running light wheel running light O1-19 Bla1-9 Bla8 220V Power supply 220V speaker running light speaker running light left indicator light right indicator light Solid Bla7...
