Summary of Contents for MecPower Tecway GALAX TRAVEL

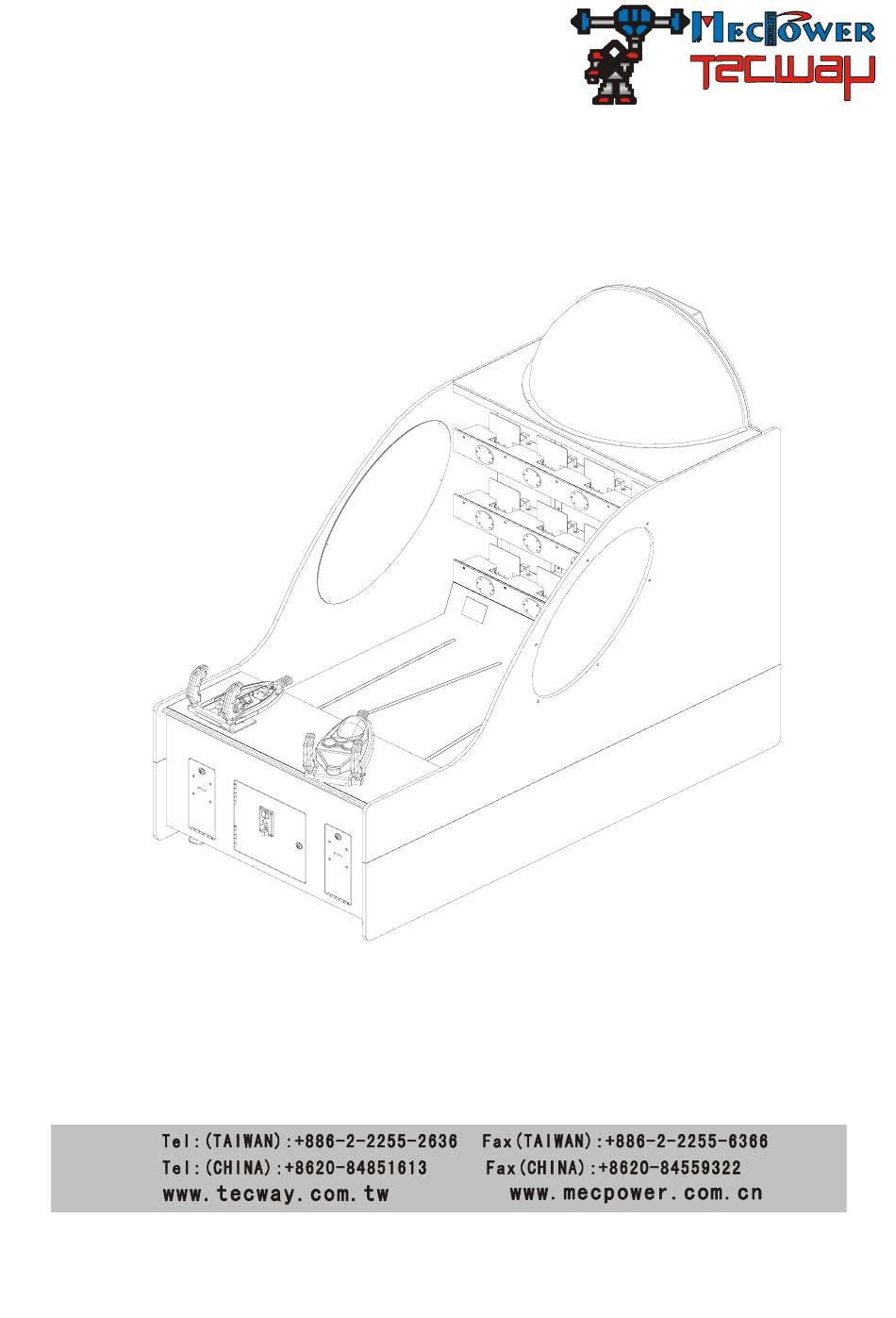

- Page 1 MANUAL FOR GALAX TRAVEL...
- Page 2 ATTENTIONS Please read the manual first before operating this machine. Please pay attention to the items marked in “note”. Safety Attentions Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. Please switch off the power before checking and maintenance.
- Page 3 Notes of Maintenance Be sure to check and maintance the game regularly. Switch off the power before replacing the parts of the game. The parts for replacement should be the same model as the old one. Please check the connection and voltage output after replacing the power supply. The voltage range of the PCB should be 12.1V-12.4V.
- Page 4 PLAYING TIPS There are four levels for the game. Player can choose single player mode or 2P mode. Single player mode: 1. Insert coin, press the button on the handle and wait around several seconds to start the game. 2. Level 1: move the gun to aim the target, and then press button to shoot the target. Shoot down the 12 targets within the game time (can be adjusted, default setting is 40 seconds.) in order to score the 12 points (1 target = 1 point) to pass Level 1 and the game will automatically enter into Level 2.
- Page 5 4. Level 3: move the gun to aim the target, and then press button to shoot the target. Shoot down 4 random targets within the game time (can be adjusted, default setting is 5 seconds.) to pass Level 3 and the game will automatically enter into Level 4. 5.
-
Page 6: Technical Parameters
TECHNICAL PARAMETERS Voltage: AC 220V/110V（50/60HZ） Max. current: 0.5A/0.9A (Note: The proper voltage and current used accords to the nameplate at the back door of the game.) Max. power: 120W Power (standby mode): 70W Coin size: φ21mm φ31mm(diameter) 1.2mm 2.5mm(thickness) Capacity of coin box: about 5000 pcs with coin size φ25mm*1.5mm Location required: indoor use;... -
Page 7: Installation
Accessories shipped with the game: DRAWING NAME SPEC./MODEL fuse 5A (small) 1285＃ 1396＃ power cord manual INSTALLATION Choose a proper location for the game and keep a certain space for game operation, as below drawing shown: 0.5 m 0.5 m 1.03 m 2.03 m Note: Please install the game on the flat floor. - Page 8 Check the connection: Check if the inner structure of the game is loose caused by transportation or the terminals drop. Check if the game is grounded. Check if the resistance of the GNDs is more than 100 megohm. Connect the power cord. 市电插盒...
- Page 9 b) Hold the plug to pull it out from the socket. c) Do not touch the plug with wet hands. d) Make sure the voltage and fuse used are proper. ！ warning Before inputing the power, please check the resistance between input port and GND. Make sure the connection is proper.
- Page 10 Check before operation 1. Confirm the power cord is properly plugged and without any damages. 2. Confirm the game is properly fixed. 3. Confirm the cabinet of game is without damages and burrs. 4. Confirm the surface of game is clean and with proper marks. Daily operation: Please properly refer to the instructions above to check the game before operation.
-
Page 11: Game Setting
GAME SETTING Keys for setting: 主机板 Main board Main board 主机板 后台设置 Display for 显示板 setting ENTER ENTER: enter into the menu DW: to next item / decrease the value of setting UP: to previous item / increase the value of setting ESC: exit the menu / back to previous menu... - Page 12 Instructions: Switch on the game, below information will be shown on the display of the main board: GALAXY TRAVEL 5.14 When in main interface as above shown: Press <ENTER> to enter into main menu. There are three menus under main menu: SERVICE menu, SET UP menu and TEST menu.
- Page 13 (1) CREDIT When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or <DOWN> to CREDIT: There are 4 settings can be selected for CREDIT: 1.1 setting #1: 01COIN = 1 Crd (Default setting) When it is in setting #1, press <ENTER>, press <UP>...
- Page 14 This setting is only for Single Player mode and is invalid for 2P mode. The setting is 1 coin per game, the value of setting can not be changed. (2) TICKET When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or <DOWN>...
- Page 15 Setting #2: 4-line short pulse (suitable for iron door) Setting #3: No ticket dispenser (if this setting is selected, the game will not dispense ticket even the ticket dispenser is installed.) Setting #4: 3-line pulse 2.2 Ticket Min/ Max This setting can decide the maximum and minimum value for ticket dispensed. When it is in TICKET menu, press <ENTER>, press <UP>...
- Page 16 2.3 EXIT FACTOR:（setting of # of points for # of ticket） When it is in TICKET menu, press <ENTER>, press <UP> or <DOWN> to choose 2.3 and press <ENTER> to show the current setting. Below is the default setting: There are 6 settings: POINTS *2 （1 point for 2 tickets）...
- Page 17 Press again <ENTER> to set the game time of Level 1: Setting menu of game time of level 1: The value of game time can be changed from 20S to 90S by pressing <UP> and <DOWN>. Setting method for game time of Level 2, Level 3, Level 4 is same as above. Game time for Level 2: default setting is 40S and can be changed from 20S to 90S.
- Page 18 This is for confirming if set the game to default setting. If yes, press <ENTER>. If not, press <ESC> to exit. After enter into the menu, press <UP> and <DOWN> at the same time to confirm default setting. After several seconds: After several seconds, it will return to main menu automatically: (5) SOUND DEMO When in the SETUP menu, press <ENTER>...
- Page 19 This setting is for playing the music or not when the game is in attraction mode. Yes is for playing the music in attraction mode, Nao is for not playing the music. (6) TICKET BONUS When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or <DOWN>...
- Page 20 There are 4 selections: 7.1 – Portuguese 7.2 – English 7.3 – Spanish 7.4 – Chinese 3. TEST When the game is in TEST mode: All the lights of the game will light up. The middle display board will show the number of targets when shooting the targets. The left or right score display board will show the correspondingly number of left or right gun shoots.
- Page 21 ADJUSTMENT Adjust the coin mech: GRAY COUNTER(+/-) DC+12V WHITE COIN SIGNAL BLACK GROUND GRAY COUNTER(-/+) N.O. accurate normal N.C. 100ms SLOW 50ms MEDIUM 25ms FAST Descriptions: A. remove the plastic coin from the coin sample chute and put a proper coin in it. B.
- Page 22 Adjust the volume: Main board Volume potentiometer 主机板 Main board Instructions 1: Open the coin door to find the volume potentiometer on the main board. Twist the potentiometer to adjust the volume. Counterclockwisely to increase the volume, clockwisely to decrease the volume. Instruction 2: Switch on the game, below information will be shown on the display of the main board: When in main interface as above shown, press <UP>...
- Page 23 CHECK AND MAINTAIN ！warning Please check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. Daily check ITEMS DESCRIPTIONS...
-
Page 24: Troubleshooting
TROUBLESHOOTING If you have any problem in installing or using the machine, we recommend that you first check the following table for possible cause of the problem and solution before asking for technical support: PROBLEM CAUSES SOLUTIOINS no sample coin insert sample coin sensitivity for coin was adjusted too Can't insert coin... - Page 25 PARTS DRAWINGS AND PARTS LIST Cabinet: 31 32 14 15 09 10 PARTS PARTS meter filter meter bracket 3-digit display board lock #1396 light board (70cm) coin box 2-digit display board ticket box bracket for target leveler M16 metal frame for motor wheel 2.5"...
- Page 26 Coin door: PARTS coin door hinge 4" coin selector lock #1285 Ticket door: PARTS lock #1285 ticket door ticket dispenser hinge 4" Power Supply: PARTS power supply 12V 8.3A holder power supply 5V 5A...
- Page 27 PCB: PARTS chassis display(DC12V) light control board(12V) flashing light control board(5V) Target: PARTS reaction metal washer for PCB bearing (626) motor shaft target right bearing base coupler motor bracket motor (12V 80r) motor chassis left bearing base Bull’s eye: sensor board PARTS acrylic receiver 1...
- Page 28 Gun: PARTS cover bronze sleeve limit shaft handle vibation motor 12V upper limit piece gun base chassis 15 14 bearing (6205) limit metal limit piece lower limit piece gun head nylon sleeve infrared head emitter board motor cover light strip limit sleeve center shaft Flying saucer:...
- Page 29 Service door: PARTS PARTS backboard motor drive board aluminum chute belt holder B holder w/ wheel belt holder A hinge sliding block sensor (KI1248-AALF) limit sleeve fixed board w/ wheel reaction metal supporting for flying shaft w/ wheel saucer washer belt for saucer sensor holder spring(1.5*13*50)
