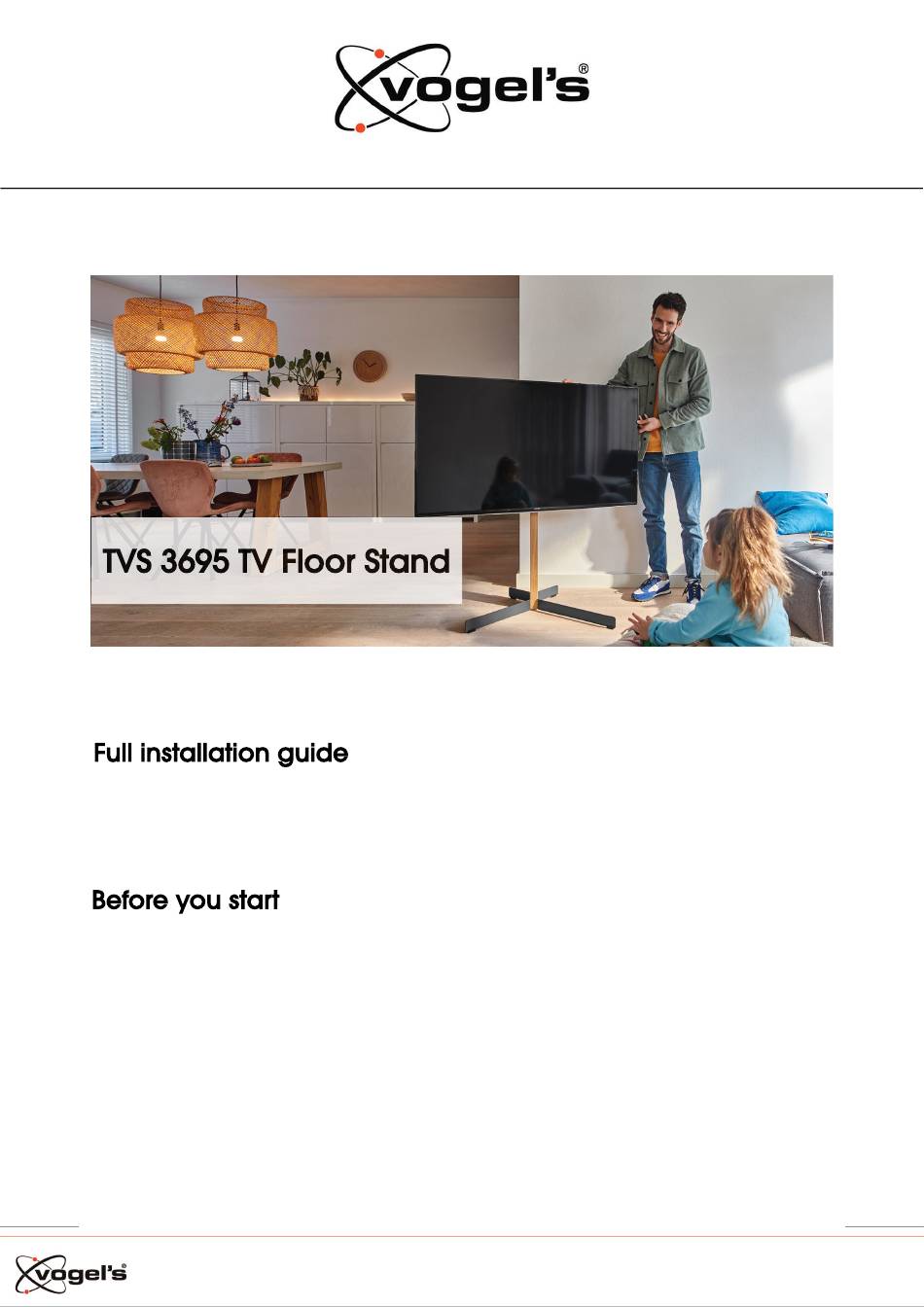

TVS 3695 TV Floor Stand
Full installation guide
Everything you need to get your TV safely on the floor stand, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new floor stand.
TVS 3695 English
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for vogel's TVS 3695
Summary of Contents for vogel's TVS 3695
- Page 1 TVS 3695 TV Floor Stand Full installation guide Everything you need to get your TV safely on the floor stand, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new floor stand.
- Page 2 Always store the product in a dry and safe place with a temperature between -10°C to +50°C. Handle and transport the product with care. Repack the product when transporting or not using it for a longer period of time. Lifting your TV is a two-person job. Don’t be bold! TVS 3695 English...
-
Page 3: What's In The Box
M. Bolts for attaching feet to stand (see contents below) N. Thumb nuts O. Allen key P. Cover plate Q. Cable clips R. Wooden stand S. Foot (left) T. Foot (right; with pre-attached bolts) U. Steel bracket TVS 3695 English... - Page 4 2x M6*10mm thumb nuts Allen key You don't need all fasteners to mount your TV. Store the rest for later or other use! Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver M4 (4mm) Allen key TVS 3695 English...
- Page 5 4x Washers Ⓖ 4x Protective TV patches Ⓛ 4x Spacers (optional; depending on your type of TV, use either the 5mm or 10mm spacers) Ⓕ 2x Interface bars Ⓑ 2x Interface strips Ⓒ 1x Allen key Ⓞ TVS 3695 English...
- Page 6 Ⓒ. Screw the interface strips Ⓒ onto the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ are at the same height and do not stick out. Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly. TVS 3695 English...
- Page 7 5. Attach the interface bars Ⓑ to the strips by tightening the pre-attached bolts Ⓒ with the allen key Ⓞ. 6. Screw the thumb nut Ⓝ into the upper bar. Make sure you don’t screw it in completely, yet. TVS 3695 English...
- Page 8 Ⓡ. The back of the wooden stand Ⓡ includes a hidden notch for cable management. 2. Use the allen key Ⓞ to attach the left foot Ⓢ (without pre-attached bolts) to the wooden stand Ⓡ by screwing the two M8*20mm bolts Ⓜ into the pre-attached screws of the right foot Ⓣ. TVS 3695 English...
- Page 9 3. Slide the steel bracket Ⓤ over the top of the wooden stand Ⓡ. Use the knob (see illustration) to fasten the steel bracket Ⓤ to the top of the wooden stand Ⓡ. 4. Apply the click-on stainless-steel cover plate Ⓟ on top of the steel bracket Ⓤ. TVS 3695 English...
- Page 10 Ⓑ slide over the two clutches on the steel bracket Ⓤ. Also make sure the thumb nut Ⓝ slides into V-cut part of the steel bracket Ⓤ. 2. When the TV is mounted, secure the interface bars Ⓑ to the steel bracket Ⓤ by fastening the thumb nuts Ⓝ. TVS 3695 English...
- Page 11 Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com! Job done now! Enjoy watching your TV! TVS 3695 English...
- Page 12 Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices. Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. TVS 3695 English...
-
Page 13: Simple Troubleshooting
– it can be service kit, and we’ll send everything you need. hard to keep up sometimes. So, Click here to contact Vogel's Consumer Care. it might be the case that the correct bolt size is not included… you’re just too advanced! ‘I have a lot of leftover... - Page 14 Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. Vogel's offers a complete assembly kit with all mounting materials included in the box. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer.
- Page 15 If the product is used for different equipment than is mentioned on or in the packing. Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands Vogel’s Products BV 2021 © All rights reserved. TVS 3695 English...
