Installation Procedure > Installing the Open I/F PCB

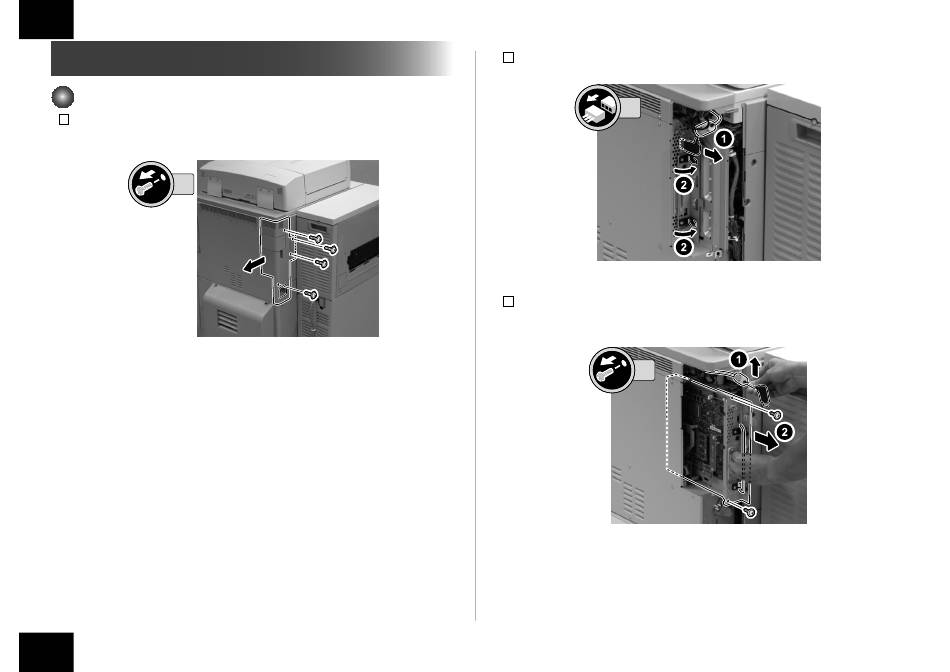

Installation Procedure
Installing the Open I/F PCB
1) Remove the Box Left Cover.
• 4 Screws
4x
Installation Procedure > Installing the Open I/F PCB
2) Disconnect the Reader Communication Cable and release the 2 Lock Levers.
3) Hold the grip to remove the Main Controller PCB 2.
• 2 Screws
F-1-6
1x
2x
F-1-8
5
F-1-7
5
