Canon imagePRESS Server G100 Installation Procedure page 9

Installation Procedure > Installing the PS Unit

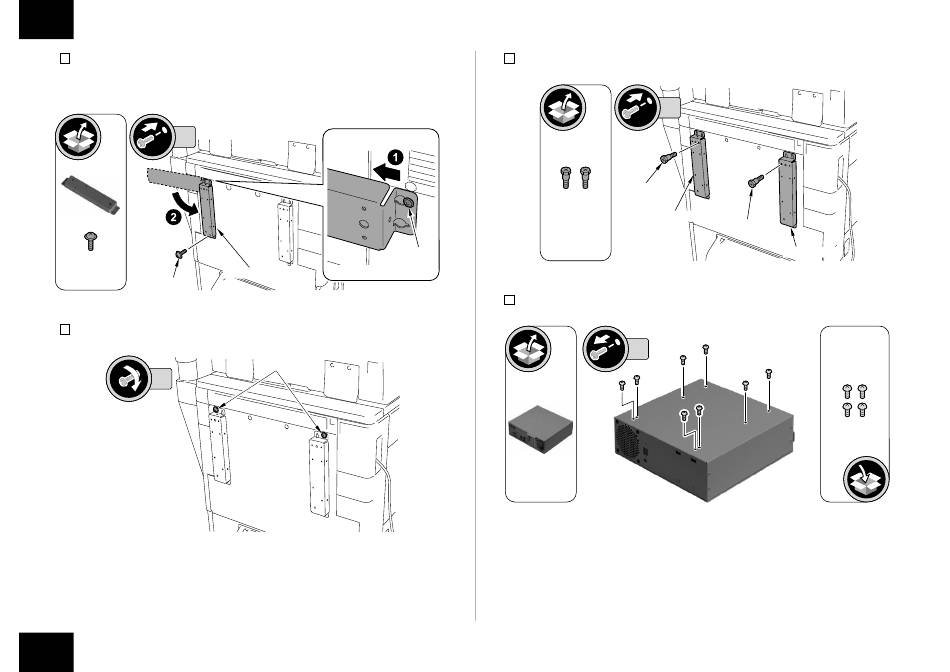

3) Hook the Support Plate to the screw (left side) loosened in step 1, and install it in the
direction of the arrow.
• 1 Screw (TP; M3 x 6)
1x
TP
M3x6 Support Plate
Screw
4) Tighten the 2 screws loosened in step 1.
2x
Installation Procedure > Installing the PS Unit
Screw
Screw
F-1-20
5) Install the 2 Stepped Screws (M4) to the Support Plate.
2x
Stepped Screw
Stepped Screw
M4 Support Plate
6) Remove the 8 screws of the PS Unit. (the removed screw will be used in step 7)
8x
9
Stepped Screw
Support Plate
F-1-21
F-1-22
9
