Installation Procedure > Installing the PS Unit

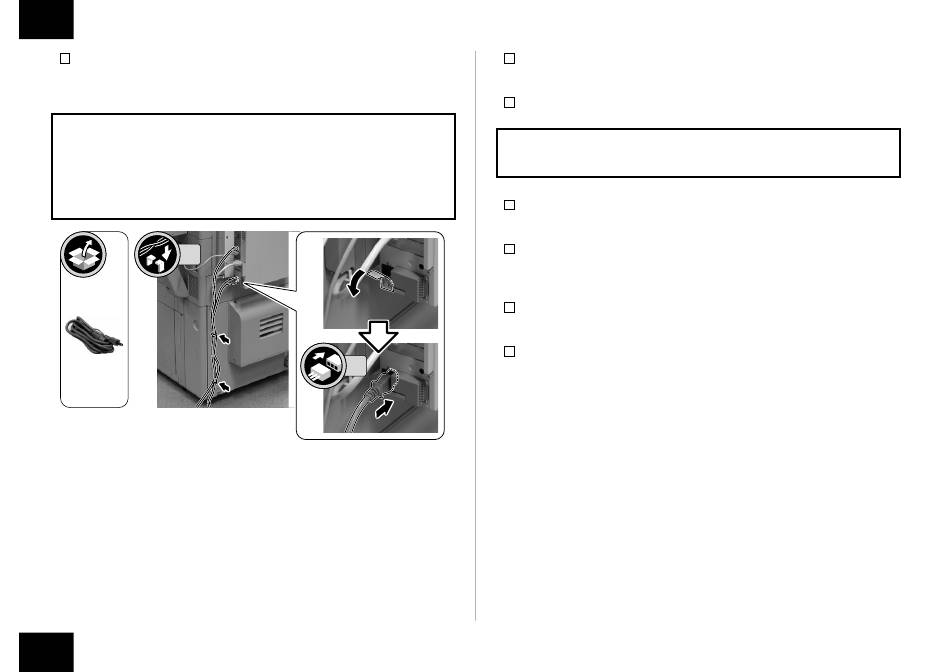

15) Remove the label, and connect the Power Cord.
16) Secure the Power Cord and the Shield Ethernet Cable in place.
• 2 Wire Saddles
CAUTION:
• Use the correct power code to mach the location/area of installation. Make sure not
to leave unused power code at the site.
• Be sure to use the network cable with Category 5e or higher. In addition, a sealed
type (STP cable) is recommended. When using the non-sealed type (UTP cable),
it may influence the surrounding electronic equipments via network cable.
2x
Installation Procedure > Installing the PS Unit
17)
18)
CAUTION:
Be sure to use an outlet of a system different from that of the host machine.
19)
20)
turn OFF the main power switch of the host machine.
21)
22)
1x
• Service Mode (level 1) > COPIER > OPTION > INT-FACE > CNT-TYPE
F-1-30
Connect the power plug to the outlet of the host machine.
Connect the power plug to the outlet of the PS Unit.
Turn ON the main power switch of the host machine.
"Turn ON the main power of the host machine again." is displayed on the touch panel,
Turn ON the main power switch again.
Check that the value of CNT-TYPE is "454".
