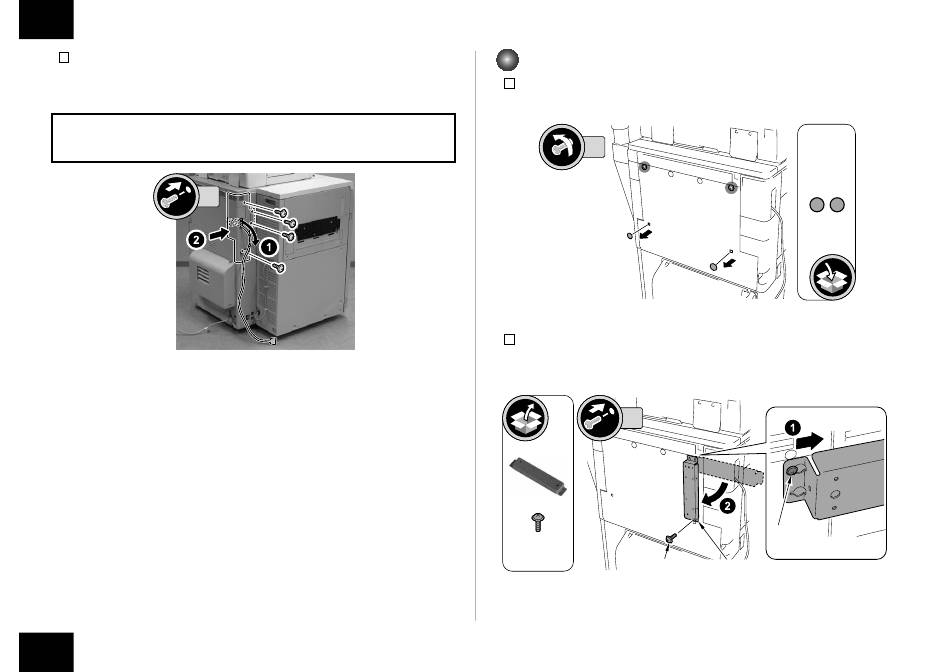

Canon imagePRESS Server G100 Installation Procedure page 8

Installation Procedure > Installing the PS Unit
13) Put the Interface Cable through the hole of the Box Left Cover to install the Box Left
Cover.
• 4 Screws
CAUTION:
When installing the Box Left Cover, be careful not to trap cables.
4x
Installation Procedure > Installing the PS Unit
1) Remove the 2 Face Seals of the Rear Upper Cover and loosen the 2 Screws.
(the removed Face Seals will not be used)
2) Hook the Support Plate to the screw (right side) loosened in step 1, and install it in the
F-1-17
direction of the arrow..
• 1 Screw (TP; M3 x 6)
Installing the PS Unit
2x
1x
TP
M3x6
Screw Support Plate
8
F-1-18
Screw
F-1-19
8
