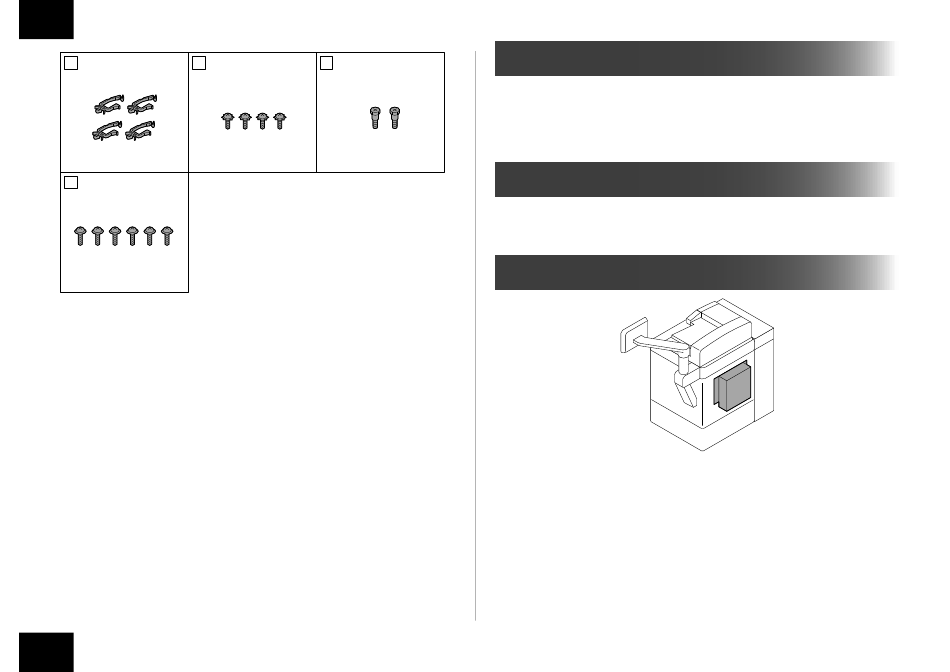

Installation Outline Drawing

[13] Wire Saddle X 4 [14] Screw with
Toothed Washer
(Binding; M4x8) X 4
[16] Screw (TP; M3x6) X 6
Use 2 of them
< CD/Guides >
• Media Pack
• QUICK SETUP POSTER
Installation Outline Drawing

Turning OFF the power of the host machine

[15] Stepped Screw
(M4) X 2
Check that the main power switch is OFF.
1) Turn OFF the main power switch of the host machine.
2) Be sure that display in the Control Panel and the lamp of the main power supply are turned
off, then disconnect the power plug.
Check when Connecting the Power Plug to an Outlet
When connecting the power plug of this equipment to an outlet, be sure to use an outlet of a
system different from that of the host machine.
Installation Outline Drawing
F-1-4
4
F-1-5
4
