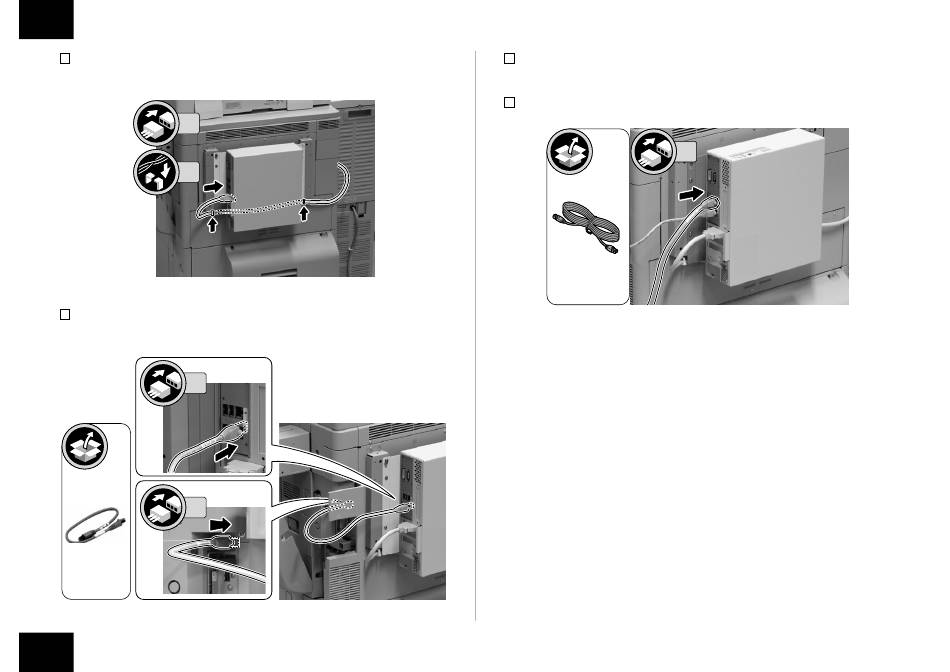

Installation Procedure > Installing the PS Unit
11)
Connect the Interface Cable to the PS Unit.
• 2 Wire Saddles
1x
2x
12)
Open the HDD Cover, connect one end of the Cross Ethernet Cable to the host
machine and then connect another end to the PS Unit.
1x
1x
Installation Procedure > Installing the PS Unit
13)
14)
F-1-27
F-1-28
Close the HDD Cover.
Connect the Shield Ethernet Cable to the PS Unit.
1x
11
F-1-29
11
