Eclipse Two Door Cabinet
Assembly Instructions
13
V
Z
W
J
K
K
J
J
K
K
J

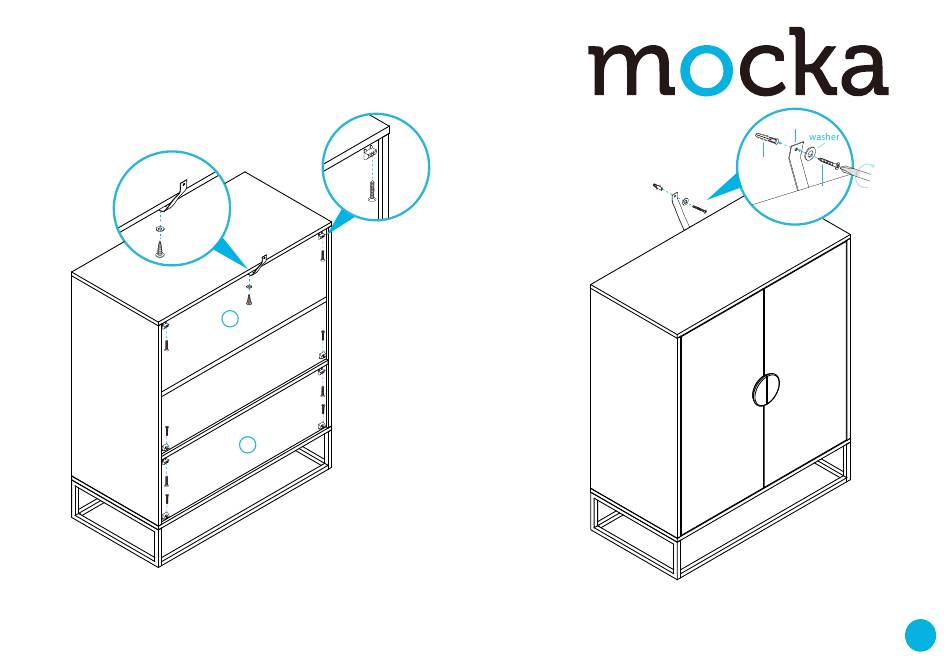

Attach 8x wedges (J) into the corners of the back of the unit and secure
with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z)
and 1x screw (W). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
J
K
J
V
K
Z
W
5
K
J
J
K
K
J
5
14
X
Z
Y
Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and
1x wall screw (Y). Ensure unit is balanced and steady before
use.
strap
wall
anchor
screw
8
