Mocka Eclipse Assembly Instructions Manual page 7

Eclipse Two Door Cabinet
Assembly Instructions
11
3
11

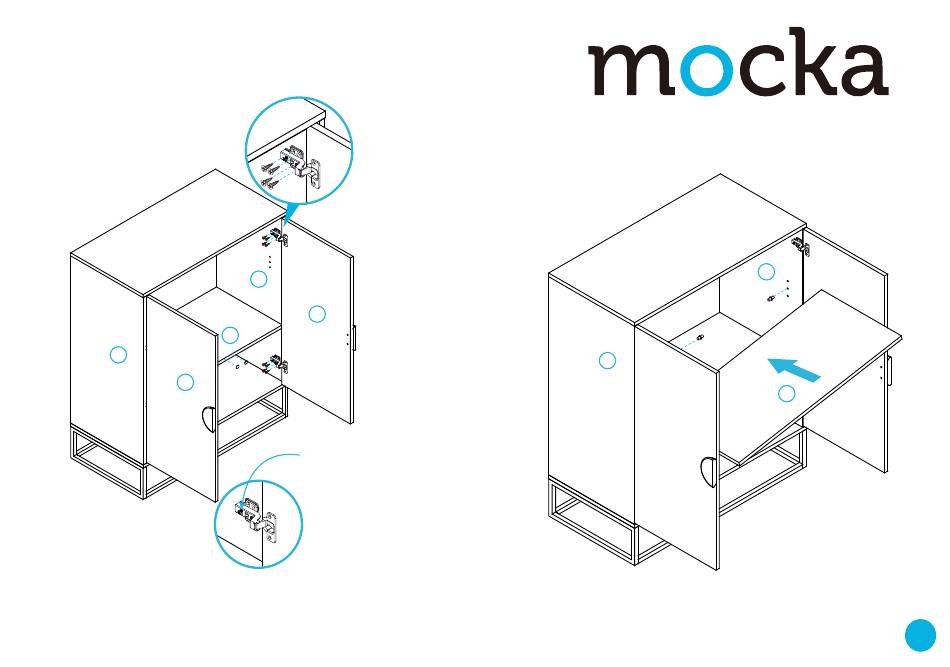

Attach hinges on panels [11] to panels [3] and [4] and secure
with 16x screws (F). Tighten with a screwdriver. Attach 2x buffer
plates (P) to panel [6] as shown. Ensure the doors open and
close easily.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
F
F
4
11
6
F
P
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
12
Door x2
O
3
Insert 4x shelf plugs (O) into the unit at the desired height for the shelves
and rest the shelf panel [12] onto them. Ensure the shelves are balanced
and stable.
4
O
12
7
