Fancom 743

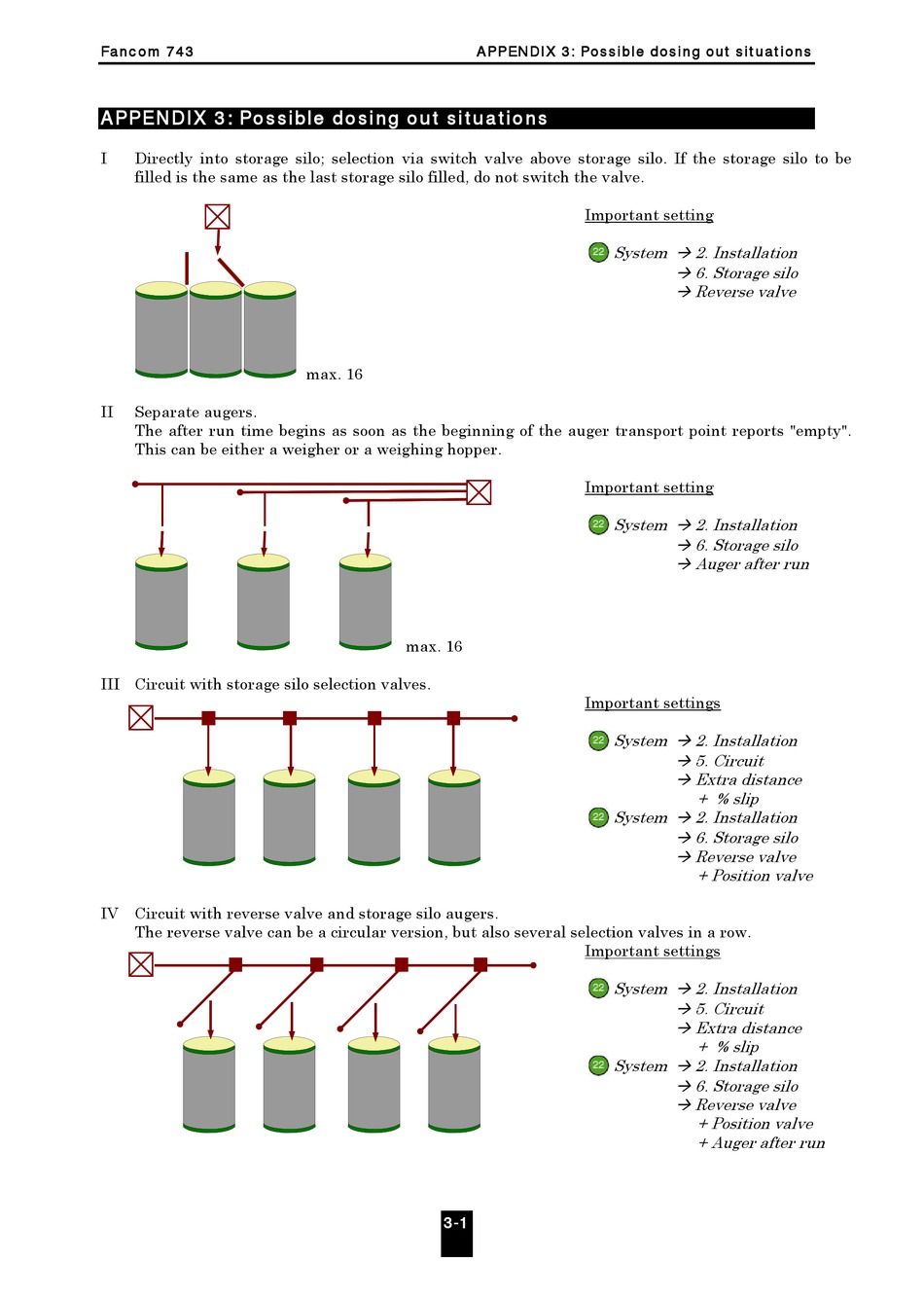

APPENDIX 3: Possible dosing out situations

I Directly into storage silo; selection via switch valve above storage silo. If the storage silo to be
filled is the same as the last storage silo filled, do not switch the valve.
II Separate augers.
The after run time begins as soon as the beginning of the auger transport point reports "empty".
This can be either a weigher or a weighing hopper.
III Circuit with storage silo selection valves.
IV Circuit with reverse valve and storage silo augers.
The reverse valve can be a circular version, but also several selection valves in a row.
max. 16
max. 16
3-1
APPENDIX 3: Possible dosing out situations
Important setting
System  2. Installation
Important setting
System  2. Installation
Important settings
System  2. Installation
System  2. Installation
Important settings
System  2. Installation
System  2. Installation
 6. Storage silo
 Reverse valve
 6. Storage silo
 Auger after run
 5. Circuit
 Extra distance
+ % slip
 6. Storage silo
 Reverse valve
+ Position valve
 5. Circuit
 Extra distance
+ % slip
 6. Storage silo
 Reverse valve
+ Position valve
+ Auger after run
