5.3.5 Circuit

>>Circuit_1
4×
Relay output
Status
Extra distance
% slip
Relay output
Enter the address (in front of the point) and the relay number (behind the
point) to which the circuit inlet valve control has been connected.
Status
The current status of the circuit inlet.
Extra distance
The distance (minutes and seconds) between two feed columns*. Select this
distance so that the two feed columns cannot mix.
% slip
As the pressure of feed in the weigher decreases the feed column will be
spread more thinly over the auger. This means that the column will become
longer resulting in an increased transport time to the storage silo.
Enter the expected extra transport time here as a percentage.
A feed column consists of one or more successive portions for the same storage silo.
∗
slip
for storage silo 2
Feed columns

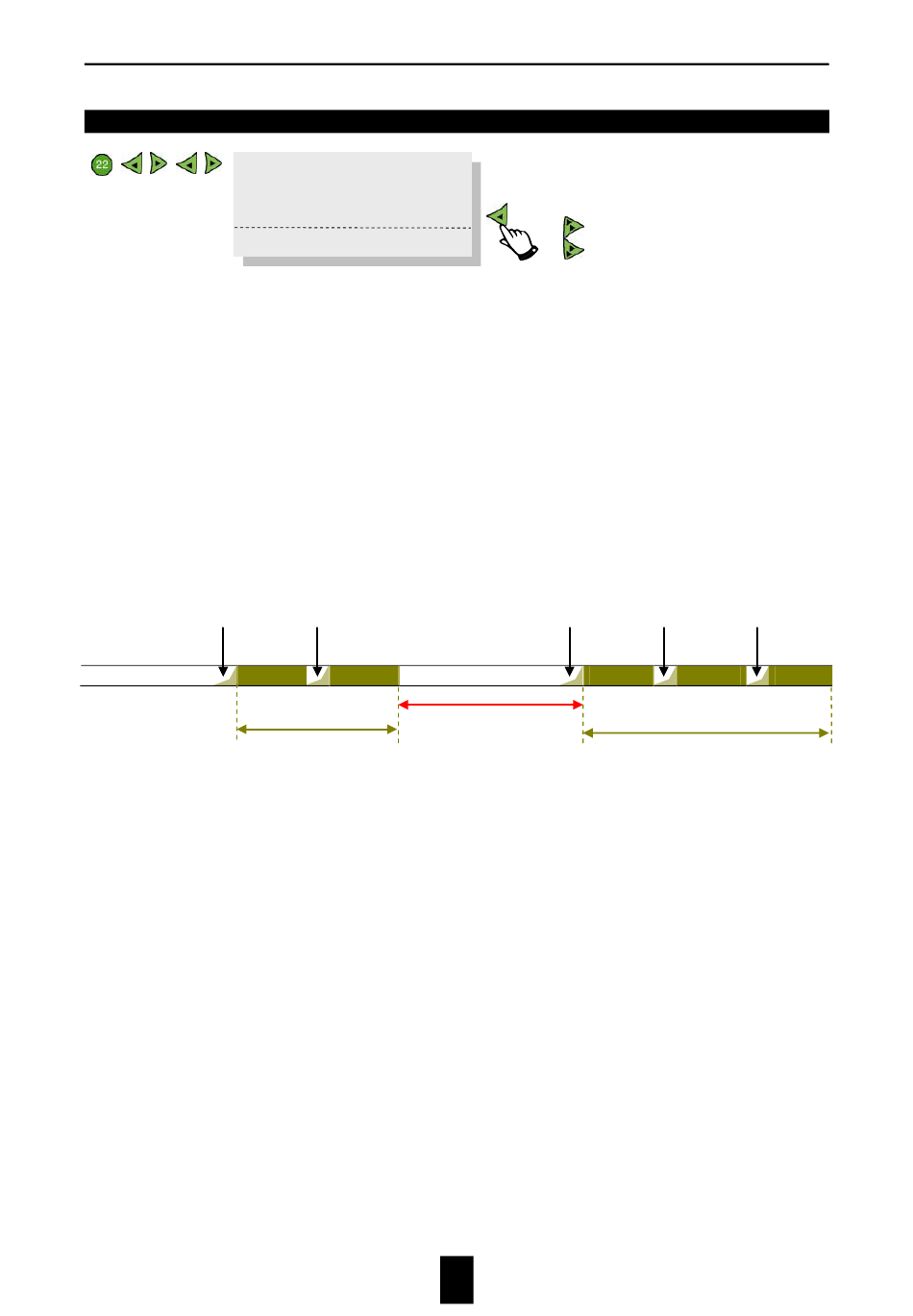

Fig. 1: illustrated
0. 0
OFF
0:00
0
slip
Feed column
INSTALLER: 5. System settings
next circuit (max. 2 circuits)
previous circuit
slip
Extra distance
12
slip slip
Feed column
for storage silo 1
