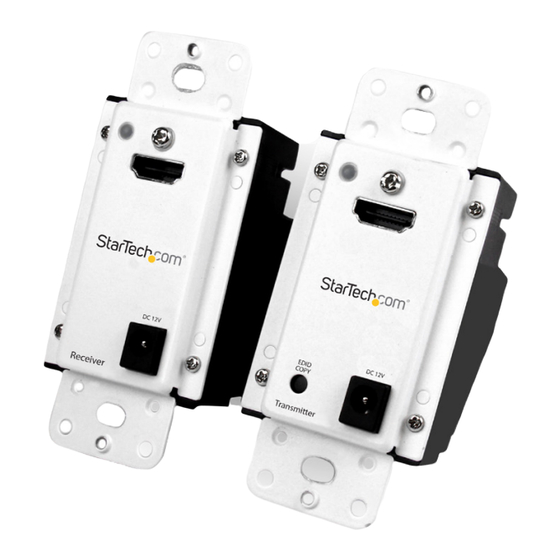

Wall Plate HDMI® over Cat 5e/6
Extender - 165ft (50m)
ST121HDWP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/14/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121HDWP
Summary of Contents for StarTech.com ST121HDWP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/14/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View – Transmitter/Receiver Unit ..................... 1 Rear View – Transmitter/Receiver Unit ....................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Preparing Your Site ................2 Hardware Installation ................3 EDID Configuration ................4 Automatic EDID Configuration ...................... -
Page 4: Product Diagram
Product Diagram Front View – Transmitter/Receiver Unit Transmitter Unit Receiver Unit Status (Power) LED HDMI out Port HDMI in Port Power Adapter Port Power Adapter Port EDID Copy Rear View – Transmitter/Receiver Unit Transmitter Unit Receiver Unit Terminal Terminal Block Power Block Power Link Out 1 (RJ-45 Link Out 1 (RJ-45... -
Page 5: Introduction
Introduction Packaging Contents • 1 x Wall-mounted HDMI Extender • 1 x Wall-mounted HDMI Receiver • 1 x Universal Power Adapter (NA/UK/EU) • 1 x Instruction Manual System Requirements • HDMI-enabled video source device (i.e. computer, Blu-ray player) • HDMI-enabled display device (i.e. television, projector) •... -
Page 6: Hardware Installation
Hardware Installation 1. Install the RJ45 terminated Cat5e/6 Ethernet cables to the transmitter and receiver units. a) Connect two RJ45 terminated Cat5e/6 Ethernet cables (not included) to the transmitter unit - one cable for the Link Out 1 RJ45 connector and another one for the Link Out 2 RJ45 connector. -
Page 7: Edid Configuration
Manual EDID Configuration (EDID Copy / EDID Ghost) If for any reason your configuration does not support EDID, for example there is an adapter or a video switch used in your setup, the ST121HDWP can Copy your EDID settings directly from your EDID compatible display. -
Page 8: Restore Edid To Factory Default Settings
2. Press the EDID Copy button on the Receiver unit, until the LED flashes RED (about 6 seconds). 3. The LED flashes Blue indicating the EDID settings have been restored to factory default. LED Indicator The transmitter and receiver units on the ST121HDWP are equipped with LED indicators to communicate. Transmitter LED Transmitter Status LED Indication... -
Page 9: Specifications
Specifications Local Unit Connectors 1x HDMI (19 pin) Female / 2x RJ-45 Female Remote Unit Connectors 1x HDMI (19 pin) Female / 2x RJ-45 Female Maximum Data Transfer Rate HDMI - 3.4Gbps Max Distance 50 m / 165 ft Maximum Digital Resolutions 1080p @ 60Hz, 48-bit Wide Screen Supported Audio Specifications... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
