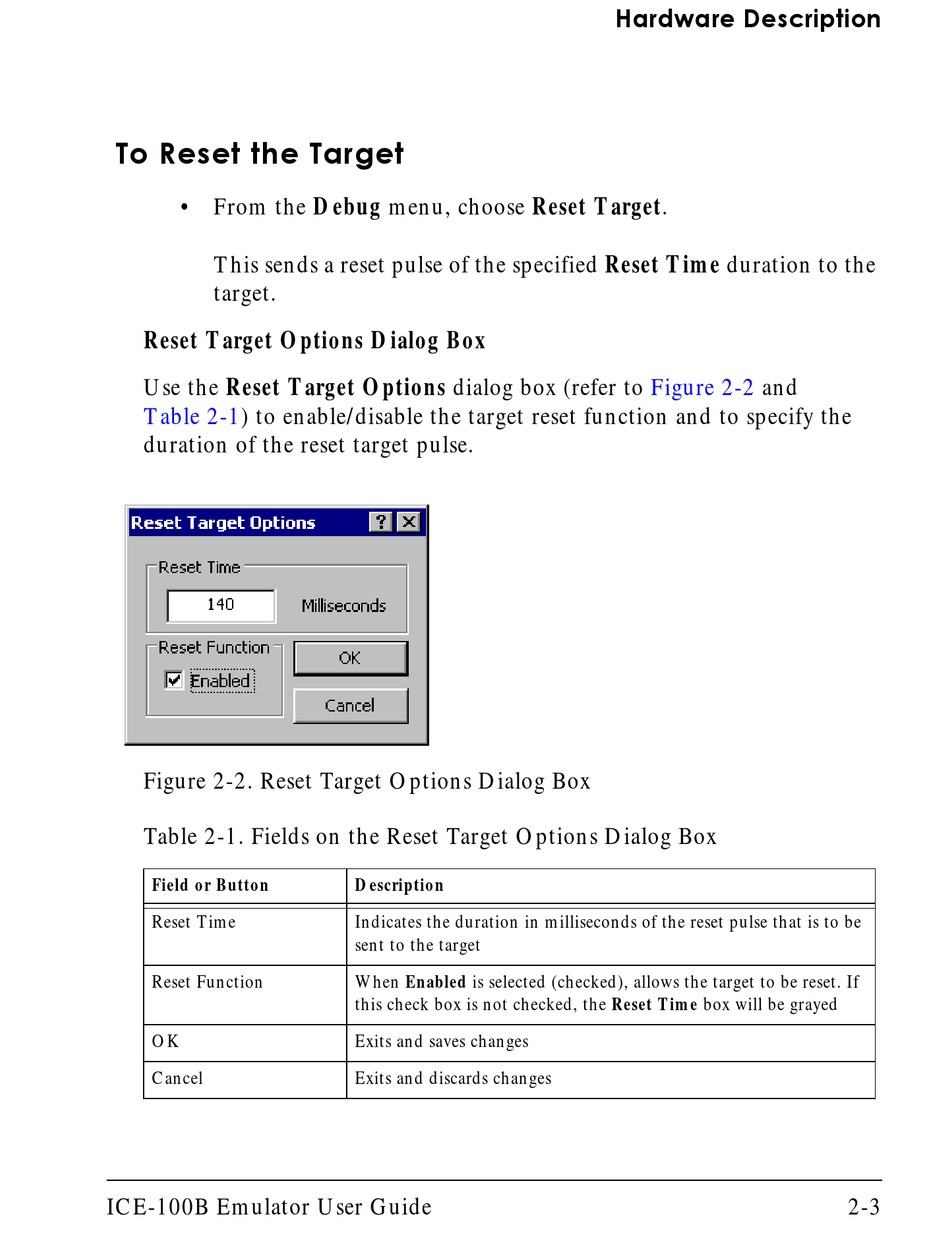

To Reset the Target

• From the Debug menu, choose Reset Target.

This sends a reset pulse of the specified Reset Time duration to the
target.
Reset Target Options Dialog Box
Use the Reset Target Options dialog box (refer to
Table 2-1) to enable/disable the target reset function and to specify the
duration of the reset target pulse.
Figure 2-2. Reset Target Options Dialog Box
Table 2-1. Fields on the Reset Target Options Dialog Box
Field or Button
Reset Time
Reset Function
OK
Cancel
ICE-100B Emulator User Guide
Description
Indicates the duration in milliseconds of the reset pulse that is to be
sent to the target
When Enabled is selected (checked), allows the target to be reset. If
this check box is not checked, the Reset Time box will be grayed
Exits and saves changes
Exits and discards changes
Hardware Description
Figure 2-2 and
2-3 
