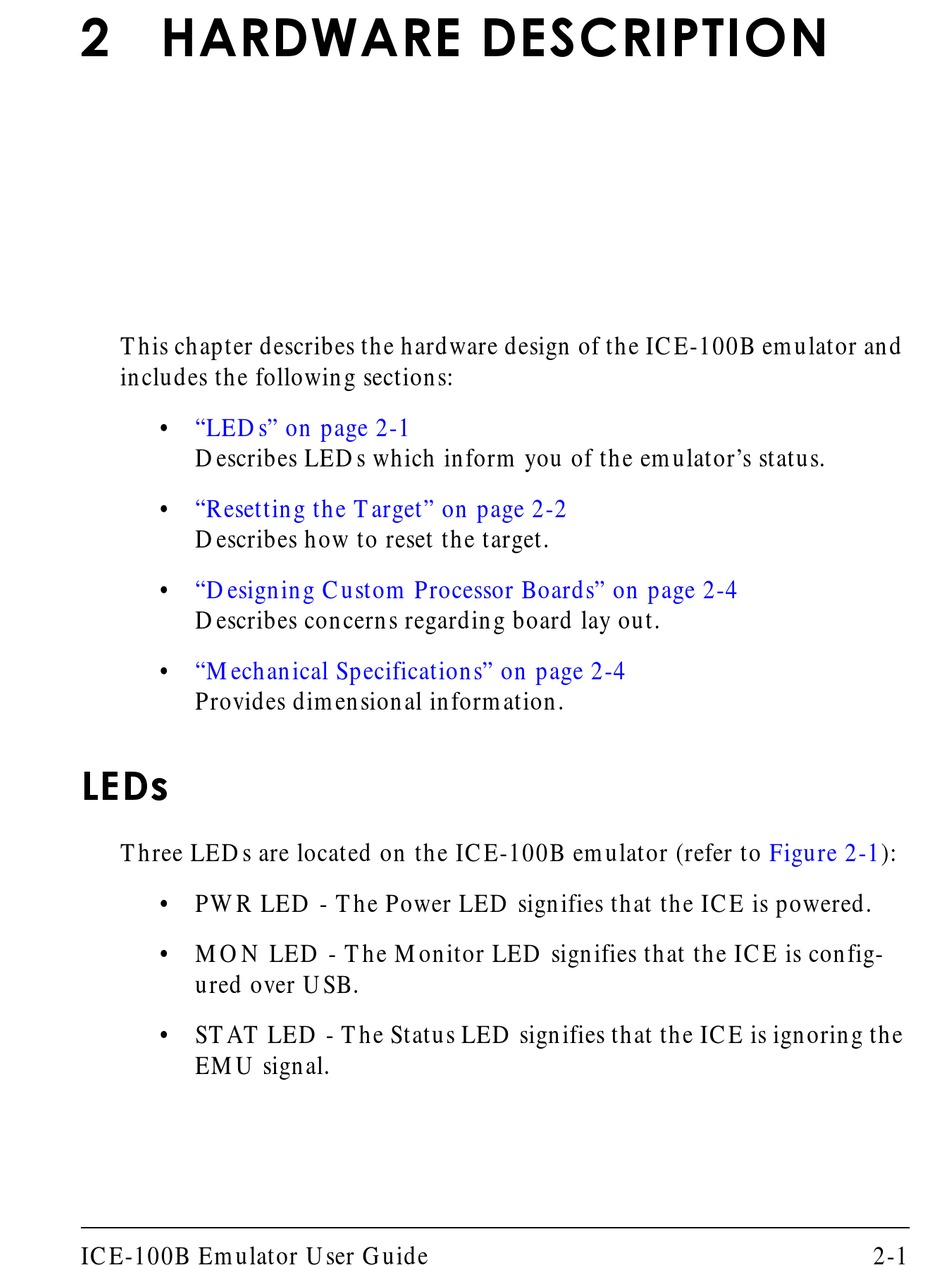

2 HARDWARE DESCRIPTION
This chapter describes the hardware design of the ICE-100B emulator and
includes the following sections:
•
"LEDs" on page
Describes LEDs which inform you of the emulator's status.
•
"Resetting the Target" on page
Describes how to reset the target.
•
"Designing Custom Processor Boards" on page
Describes concerns regarding board lay out.
•
"Mechanical Specifications" on page 2-4
Provides dimensional information.
LEDs
Three LEDs are located on the ICE-100B emulator (refer to
• PWR LED - The Power LED signifies that the ICE is powered.
• MON LED - The Monitor LED signifies that the ICE is config-
ured over USB.
• STAT LED - The Status LED signifies that the ICE is ignoring the
EMU signal.
ICE-100B Emulator User Guide
2-1
2-2
2-4
Figure
2-1):
2-1
