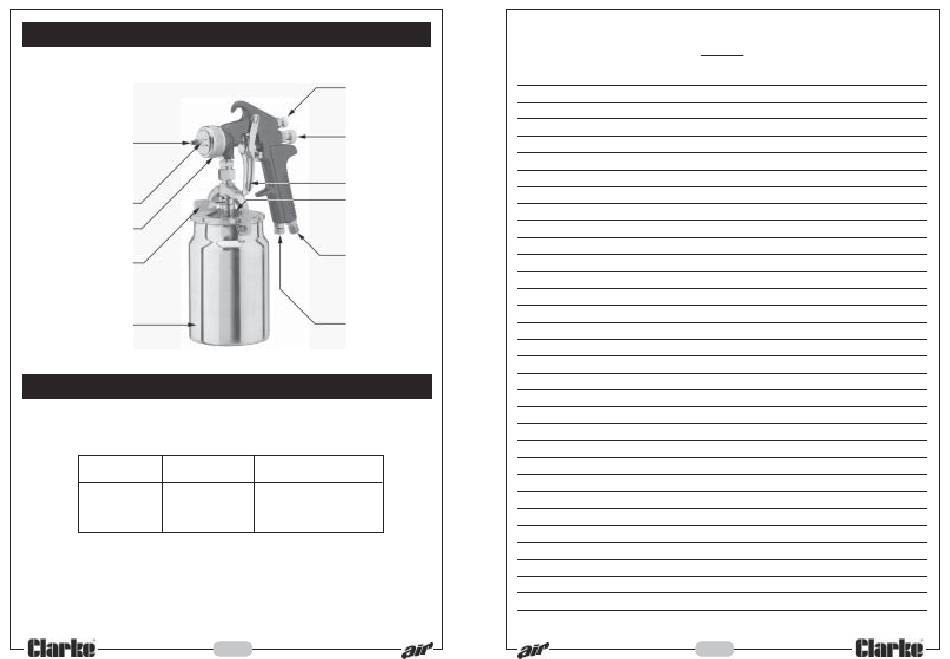

GENERAL ARRANGEMENT
Wings
Spray Nozzle
Knurled Locking
Ring
Paint Cup
Locking Lever
Paint Cup
AIR SUPPLY
Super Pro spray guns are available with two nozzle sizes, 1.4mm, and 1.8mm. The larger
the nozzle, the more compressed air is needed. Make sure your spray gun is matched to
the capacity of your compressor.
Model Nozzle size
Super Pro-14 1.4 mm
Super Pro-18 1.8 mm
For best results, the air supply to the spray gun must be clean and dry, with no oil or water
contamination. Follow the air compressor manufacturer’s guidelines on installation and
operation to ensure that your air supply is as clean as possible. The compressed air supply
line to the spray gun must be fitted with an oil and water extractor and a suitable
pressure regulator.
Connect the air supply to the spray gun using a suitable 1/4” BSP fitting.
Fan Control
Fluid Control
Trigger
Paint Cup Vent
Air Supply
Air Flow Control
Compressor required
2 hp and above
2 hp and above
