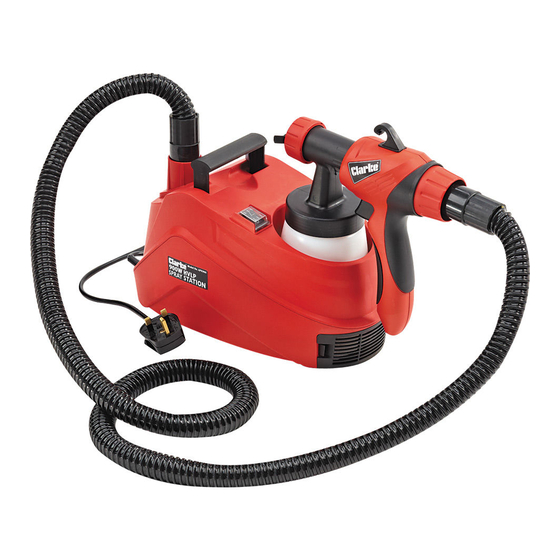

- Page 1 HVLP Electric Spray Station Model No: APK900 PART NO: 2310060 OPERATING & MAINTENANCE INSTRUCTIONS GC11/11...
-
Page 2: Introduction
TECHNICAL SPECIFICATION Please note that details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: Table Of Contents
CONTENTS INTRODUCTION .................. 2 GUARANTEE ..................2 SPECIFICATION ................... 2 GENERAL SAFETY PRECAUTIONS ............4 ELECTRICAL CONNECTIONS .............. 7 OVERVIEW ..................8 OPERATING INSTRUCTIONS ..............9 GENERAL PREPARATION ..............9 PAINT PREPARATION ................9 START-UP ....................10 ADJUSTMENTS ..................11 SPRAYING TECHNIQUE ............... -
Page 4: General Safety Precautions
GENERAL SAFETY PRECAUTIONS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power operated tools in explosive atmospheres such as in the presence of flammable liquids, gasses or dust. Power operated tools can create sparks which may ignite dust or fumes. - Page 5 5. Dress properly. Wear protective hair covering to contain long hair. For best footing, wear rubber soled footwear. Keep floor clear of oil, scrap wood, etc. 6. Concentrate on the job in hand, no matter how trivial it may seem. Be aware that accidents are caused by carelessness due to familiarity.
- Page 6 ADDITIONAL SAFETY PRECAUTIONS FOR PAINT SPRAYING 1. Never spray in the direction of persons or animals. Never allow the paint to come into contact with the skin. In the case of injury, seek expert medical advice immediately. 2. Always wear a suitable approved breathing mask when spraying, to protect against inhalation of paint spray or fumes.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 8: Overview
OVERVIEW The High Volume/Low Pressure (HVLP) spray gun reduces the spray mist associated with compressed air spraying and therefore both reduces paint loss and masking requirements. The gun may be used with various spray mediums, including varnishes, wood preservatives, masonry paints, enamel paints, and oil and water based paints. -
Page 9: Operating Instructions
OPERATION GENERAL PREPARATION Do not use textured wall paints or coatings as they are likely to block the nozzle. To obtain the best results, it is important that you prepare the surface to be sprayed and thin the paint to the correct viscosity before you operate your spray gun. -
Page 10: Start-Up
START-UP 1. Unscrew the container from the spray gun and align the suction Suction tube to suit the angle of spraying. Tube • When spraying horizontal surfaces or pointing the gun downwards, turn the suction tube forward (A). If spraying objects at high level, turn the suction tube back towards you Fig 1... -
Page 11: Adjustments
ADJUSTMENTS SPRAY PATTERN Adjust the spray gun by rotating the nozzle and setting the tabs on the air cap as shown. Three different spray settings can be chosen, depending on the application and target object. Flat, narrow jet (for horizontal surfaces) Tall, narrow jet (for vertical surfaces) Circular jet (for corners, edges and hard to reach areas) Fig 3... -
Page 12: Spraying Technique
SPRAYING TECHNIQUE The quality of the finished work depends on the smoothness and cleanliness of the surface to be sprayed. Therefore the surface should be carefully prepared and kept free from dust. Carefully mask all areas not to be painted and cover all surrounding areas. - Page 13 To obtain the best results, keep your spray gun level and parallel to the surface at all times. Keep the nozzle 25 - 30 cm from the surface and spray evenly from side to side or up and down. Do not spray at an angle as this will lead to paint runs on the surface.
-
Page 14: Cleaning & Maintenance
CLEANING AND MAINTENANCE CLEANING Continuous satisfactory operation depends upon proper care and regular cleaning. It is essential that the spray gun is cleaned thoroughly after every use. Failure to clean it will almost certainly result in blockages and it may not operate correctly when you next come to use it. -
Page 15: Maiintenance
A worn nozzle may eventually develop a larger hole and scratches on the surface, which will cause a poor spray pattern. Replacements are available from your dealer or the Clarke International Parts Department. STORAGE For long term storage, always store in a well ventilated area and keep the product dry and dust free. -
Page 16: Fault Finding
FAULT FINDING . y l t i s . s r l z z l z z l i f . t i l l i f y l r u l i t i s . y l Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Component Parts
COMPONENT PARTS - BASE ASSEMBLY t s i t s i t l i t l i n i l n i l Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 18 COMPONENTS PARTS - SPRAY GUN t s i t s i n i l Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
