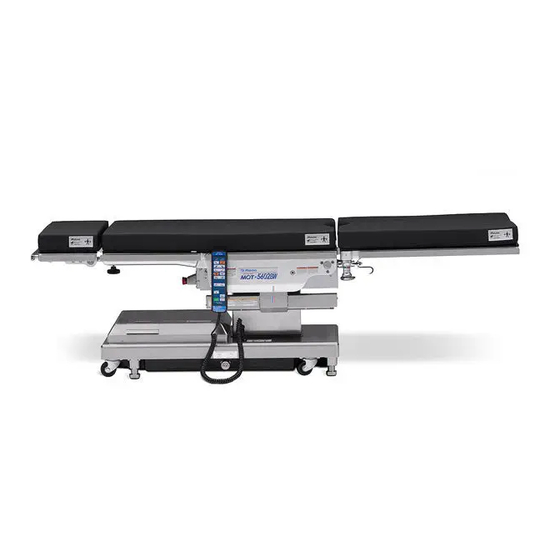

Mizuho MOT-5602BW Operator's Manual
  1. Manuals
  2. Brands
  3. Mizuho Manuals
  4. Medical Equipment
  5. MOT-5602BW
  6. Operator's manual

Mizuho MOT-5602BW Operator's Manual

Operating table
Hide thumbs Also See for MOT-5602BW:
Table of Contents

Advertisement

Quick Links

Download this manual

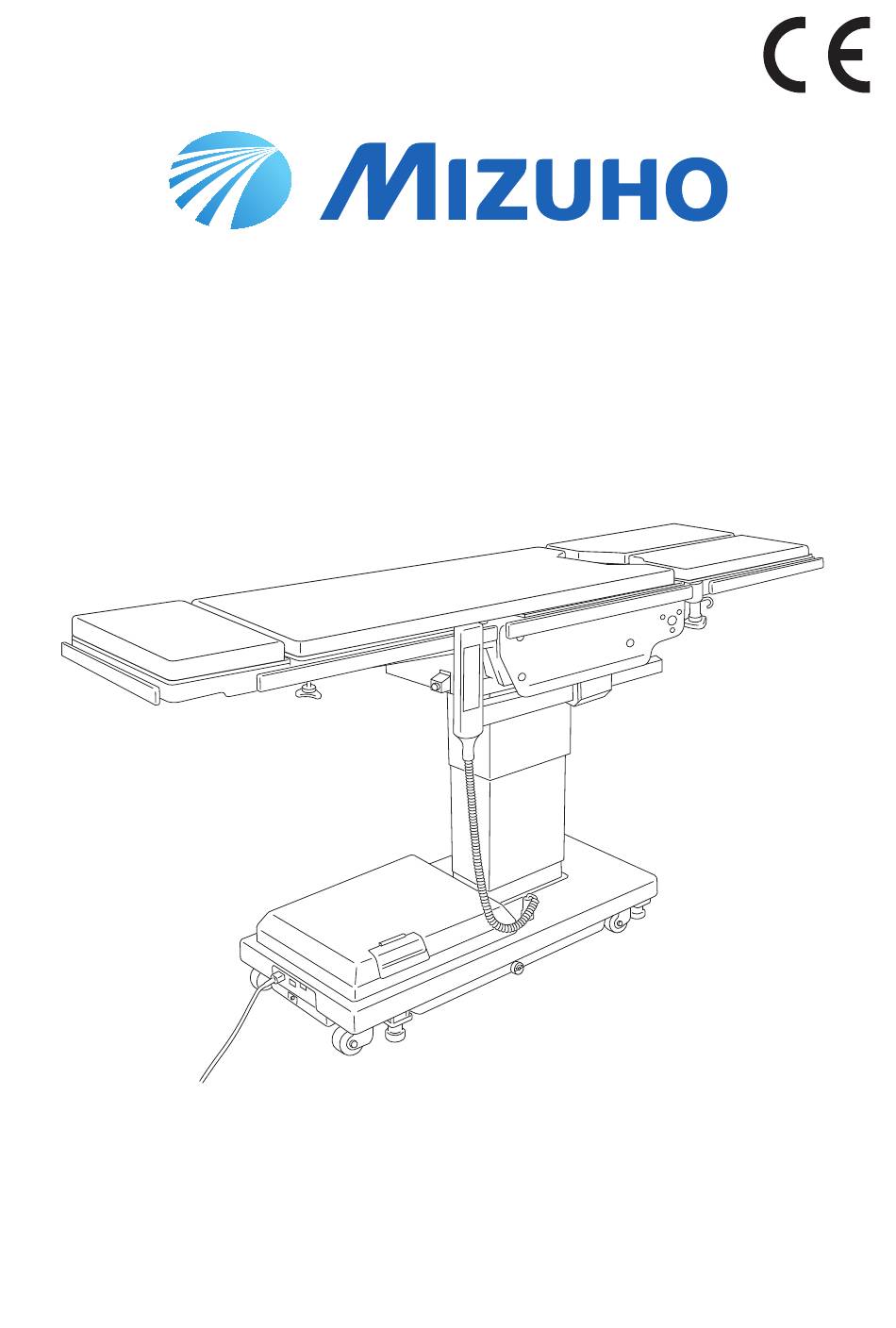

Operating Table MOT-5602BW
Operator's Manual
This operating table is designed for medical operations. Using this operating table for any
other purpose other than this intended use may cause serious injury.
The operator and the person in charge of the maintenance of this operating table must read
this operator's manual thoroughly and understand the contents before operating, inspecting,
adjusting and maintaining it.
Keep this manual for reference in a place where is readily accessible.
MES-CK18-450-10EN Ver.4 2021-09-29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOT-5602BW and is the answer not in the manual?

Questions and answers

Related Manuals for Mizuho MOT-5602BW

Summary of Contents for Mizuho MOT-5602BW

  • Page 1 Operating Table MOT-5602BW Operator's Manual This operating table is designed for medical operations. Using this operating table for any other purpose other than this intended use may cause serious injury. The operator and the person in charge of the maintenance of this operating table must read this operator's manual thoroughly and understand the contents before operating, inspecting, adjusting and maintaining it.

  • Page 2: Table Of Contents

    Table of contents Introduction ………………………………………………………… 1 This manual ……………………………………………………………………… 1 Intended use and this product ………………………………………………… 1 Accessories ……………………………………………………………………… 2 Safety precaution ………………………………………………… 3 Read thoroughly before using ………………………………………………… 3 Labeling ………………………………………………………………………… 7 Section Introduction ………………………………………………11 Main unit ………………………………………………………………………… 11 Control unit ………………………………………………………………………12 Operation ……………………………………………………………13 Installation and battery charging ………………………………………………..13...

  • Page 3: Introduction

    . Introduction 1.1 This manual This manual contains information for safely and effectively using this product. Before operating this product, read this manual thoroughly to understand how to operate and inspect the product. Failure to follow these instructions could lead to serious injury. The safety information is categorized as per the following so that the contents of warnings and cautions, and the details of warnings and cautions which are labeled on the product may be comprehended.

  • Page 4: Accessories

    1.3 Accessories „ „ Standard components and accessories Mattresses (for head, back and seat, and legs) Control unit Main unit Power cord Operator’s manual...

  • Page 5: Safety Precaution

    . Safety precaution 2.1 Read thoroughly before using Never perform the following when you use the product. Otherwise, damage to the operating table, electrical shock, and/or fire may occur. Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority in which the user and/or patient is established. (1) Head plate and leg plate Do not step or sit on the head plate or the leg plate(s).
  • Page 6 (2) Control unit • Do not forcibly pull the control unit cord. • Do not subject the control unit to strong shocks. The control unit may get WARNING damaged. (3) Upper area of the cover Do not put any object on the cover. When the table moves downward, or into the CAUTION Trendelenburg or the lateral tilt position, the slide...
  • Page 7 • Make sure to inspect and maintain the operating table before and after use. The operating table may require replacement of the parts due to significant wear, deterioration, and/or breakage depending on the length of service and frequency of use. • For preventive maintenance and inspections, contact your distributor or Mizuho directly. ● Antistatic measure • Do not use the operating table on floors and/or with accessories that do not...
  • Page 8 4. As with step 3, disinfect the surfaces of the tables and side rails. 5. Wipe off the operating table with a clean dry cloth 15 minutes after disinfecting it. • Make sure to use Mizuho authorized disinfectants. The disinfectants are as shown below.

  • Page 9: Labeling

    2.2 Labeling The operating table is labeled at the locations shown as below. Before use, make sure to understand the contents of the labels. „ „ Warning and Caution labels (3)* (4)* *: Applied on both sides.    (1) C655650 (2) C655608 (3) C653624...
  • Page 10 „ „ Other labels (1/2) (10)* (11)* (19) (16) (12)* (13) (14) (15) (17) (18) *: Applied on both sides.    (10) C600516 (11) C655646 (12) C600020    (13) C655648 (14) C653515 (15) C653516   ...
  • Page 11 „ „ Other labels (2/2) (20) (20) (20) (20) (20) (21) (22) (23) (27) (24) (25) (26)     (20) C653620 (21) C646067 (ASIA) (22) C655692 (ASIA) (23) C655691 (ASIA)    C646070 (EU) C655690 (EU) C655689 (EU) ...
  • Page 12 „ „ Symbol mark for labeling Symbol Description Label no. Indicates a possibility of injury or even death if operates the (1) (2) (3) (4) (5) (6) table without following the warning. (7) (8) General prohibition sign General mandatory action sign Emergency stop Refer to the operator's manual (6) (9) (13) (18)

  • Page 13: Section Introduction

    . Section Introduction 3.1 Main unit Emergency stop switch Control unit Mattresses Leg plate (*1) Seat plate Back plate Head plate (*1) Leg plate flexing lever Leg plate fixing handle Side frame Side rail Slide cylinder Head plate Column flexing lever Head plate fixing handle Base Auxiliary switch...

  • Page 14: Control Unit

    3.2 Control unit MOT-5602BW Power lamp Pilot lamp Battery lamp PILOT POWER BATT. REV. TREND. TREND. Reverse Trendelenburg: Trendelenburg: Head down Head up TILT LEFT TILT RIGHT Lateral tilt: Left down Lateral tilt: Right down BACK UP BACK DOWN Back plate bending: Down...

  • Page 15: Operation

    • When moving this product, carry it out with two or more persons. Equipotential terminal Equipotential wire „ „ Installing the operating table Move the operating table to a flat area. Check the battery lamp. If the battery lamp (orange) on the control unit flashes, battery charging is required. MOT-5602BW PILOT POWER BATT. Battery lamp REV. TREND. TREND. (Orange・flash) TILT LEFT TILT RIGHT BACK UP BACK DOWN...
  • Page 16 „ „ Installation space This product requires the installation space shown as below. 2.5m (98.43 in) or more 2.5m (98.43 in) 2.5m (98.43in) or more or more 2.5m (98.43in) or more...
  • Page 17 Medical grade outlet • The operating table battery life-span is about 2 years. Once it reaches its life-span, request your distributor or Mizuho for a battery replacement. • The life-span for the battery varies greatly depending on operating conditions. When turn on the power switch, battery charging starts.
  • Page 18 „ „ Attaching the control unit Align the connector with the guide and insert it into the receptacle properly. Insert the connector „ „ Detaching the control unit Turn the connector ring in the direction of the arrow until it stops.
  • Page 19 „ „ Using the self-diagnostic function This product is equipped with an embedded self-diagnostic function capable of checking the communication status between the main unit and the control unit. Connect the power connector of the product and the medical grade outlet with the power cord. Press of the control unit.

  • Page 20: Turning On/Off The Power

    Power switch (Green・light up) Press of the control unit. ON/OFF The power lamp (green) of the control unit lights up and the power is turned on. MOT-5602BW PILOT POWER BATT. REV. TREND. TREND. Power lamp...
  • Page 21 ON/OFF switch on the base before The power lamp (green) of the control unit goes out. pressing of the control ON/OFF unit, the battery power will be MOT-5602BW turned on. PILOT POWER BATT. REV. TREND. TREND. Power lamp TILT LEFT TILT RIGHT (Green・go out)
  • Page 22 ON/OFF The power lamp (green) and battery lamp (orange) of the control unit and battery indicator light up, and the power is turned on. MOT-5602BW PILOT POWER BATT. REV. TREND. TREND. Power lamp (Green・light up)/...

  • Page 23: Operating The Emergency Stop Switch

    4.3 Operating the emergency stop switch In an emergency, you can stop operating table from moving by pressing the emergency stop switch. The emergency stop switch must be used only in an emergency. WARNING „ „ Operating in an emergency NOTE Press the emergency stop switch.

  • Page 24: Fixing And Unfixing The Operating Table

    • The operating table can be raising the tabletop will not operate until the fixing of the operating locked or unlocked once table is completed. ENERGIZE TABLE UP BRAKE UNLOCK pressed. MOT-5602BW • It takes about 12 seconds PILOT POWER BATT. REV. TREND. TREND. TILT LEFT TILT RIGHT until the operating table is...

  • Page 25: Brake Release

    4.5 Brake Release • Do not tilt the tabletop while the emergency brake release handle is in the “UNLOCK” position.The patient may fall from the operating table. WARNING • After returning the emergency brake release handle to "LOCK", press ENERGIZE BRAKE UNLOCK on the control unit to release the brake.If you operate the operating table without releasing the brakes, the operating table will operate with the brakes released,...

  • Page 26: Tilting The Tabletop Laterally

    ENERGIZE TILT LEFT achieved in the left down The tabletop tilts to the left in the view from the head side. and right down position is 20° from the level position. MOT-5602BW Left down 20° 20° PILOT POWER BATT. REV. TREND.

  • Page 27: Trendelenburg

    Hold down and press ENERGIZE REV. TREND. head up is 25° from the The tabletop moves to the head up position. level position. 25° Head up position MOT-5602BW PILOT POWER BATT. REV. TREND. TREND. 25° TILT LEFT TILT RIGHT BACK UP...
  • Page 28 Hold down and press ENERGIZE TREND. NOTE • The maximum angle of The tabletop moves to the head down position. head down is 25° from the level position. MOT-5602BW PILOT POWER BATT. 25° REV. TREND. TREND. TILT LEFT TILT RIGHT BACK UP BACK DOWN 25°...

  • Page 29: Bending The Back Plate

    ENERGIZE BACK UP achieved in the back plate up The back plate moves up. position is 90° from the level position. 90° MOT-5602BW • The maximum angle PILOT POWER BATT. REV. TREND. TREND. achieved in the back plate TILT LEFT TILT RIGHT down position is 40°...

  • Page 30: Changing The Tabletop Height

    Hold down and press ENERGIZE TABLE UP the floor to the tabletop The tabletop moves up. upper surface is 1000 mm (39.37 in). Move up MOT-5602BW • The minimum height from PILOT POWER BATT. REV. TREND. TREND. the floor to the tabletop TILT LEFT TILT RIGHT upper surface is 520 mm...

  • Page 31: Sliding The Tabletop

    The tabletop slides in the foot direction. from the center position 310 mm and the buzzer will sound. (12.2 in) MOT-5602BW When moving up the back Foot direction PILOT POWER BATT. plate higher than the level REV.

  • Page 32: Flexing Or Reflexing The Tabletop

    The back plate bends downward and the seat plate turns to the sound. If the tabletop center reverse Trendelenburg head up position. point is slid to the head direction beyond the center MOT-5602BW Flexing position, the back plate PILOT POWER BATT.
  • Page 33 CAUTION and get damaged. Hold down and press ENERGIZE REFLEX The back plate bends upward and the seat plate turns to the Trendelenburg head down position. MOT-5602BW Reflexing PILOT POWER BATT. REV. TREND. TREND. TILT LEFT TILT RIGHT BACK UP...

  • Page 34: Returning To Level

    NOTE Elevation, sliding, and Hold down and press ENERGIZE LEVEL braking do not function. The tabletop from the Trendelenburg, lateral tilting, back plate bending and flexing will return to the level position. MOT-5602BW PILOT POWER BATT. TREND. REV. TREND. TILT LEFT TILT RIGHT BACK UP BACK DOWN...

  • Page 35: Adjusting The Head Plate

    4.13 Adjusting the head plate The head plate can be bent in 15° increments, to 4 different positions upward (maximum 60°) and to 6 different positions downward (maximum 90°). The head plate can also be detached. „ „ Bending the head plate • Make sure to tighten the head plate fixing handles securely.
  • Page 36 „ „ Attaching the head plate • Make sure to tighten the head plate fixing handles securely. If the head plate moves with the handles WARNING in a loosened state, the patient may get injured. • The head plate weighs 7 kg (15.4 lbs). Pay special attention when handling it. It may drop and cause damage or injury.

  • Page 37: Adjusting The Leg Plate

    4.14 Adjusting the leg plate The leg plates can be bent, stretched outward, and detachable. „ „ Bending the leg plate The right and left leg plates can be bent independently in 15° increments, to 6 different positions downward (maximum 90°). Make sure to hold the tip of the leg plate when bending.
  • Page 38 „ „ Outstretching the leg plate The leg plates are stretchable outward up to 90°. • Keep your fingers from in between the rails while outstretching the leg plate. Otherwise you may get WARNING injured. • Make sure to tighten the leg plate fixing handles securely. If the leg plates move with the handle in a loosened state, the patient may get injured. 90°...
  • Page 39 „ „ Detaching the leg plate The leg plate weighs 5 kg (11.0 lbs) (each). Pay special attention when handling it. It may drop WARNING and cause damage or injury. Hold the ends of the leg plate at the foot side. Turn the leg plate fixing handle to loosen it.
  • Page 40 „ „ Attaching the leg plate • Make sure to tighten the leg plate fixing handles securely. If the leg plates move with the handle in a WARNING loosened state, the patient may get injured. • The leg plate weighs 5kg (11.0 lbs) (each). Pay special attention when handling it. It may drop and cause damage or injury.

  • Page 41: Maintenance And Inspection

    Make sure to inspect the items below before and after use. If there are any abnormalities, request your distributor or Mizuho for repairs. Otherwise it may cause WARNING problems during surgery. Inspect the items below. If there is any problem, request your distributor or Mizuho for repair. (4) (5) (1) Mattresses „...
  • Page 42 (3) Table plates „ Before use • Check all the table plates for any damage. „ After use • Check all the table plates for any damage or dirt. (4) Control unit „ Before use • Press the switches on the control unit to see if all functions are working properly. (5) Power ON/OFF switch „...

  • Page 43: Periodic Replacement Parts

    5.2 Periodic replacement parts Mizuho specifies that the following parts need to be periodically replaced for safety use. The replacement time is a rough standard. Earlier replacement may be required depending on the usage condition and/or usage frequency. Request your distributor or Mizuho for replacements. Control unit Battery Caster Brake rubber Power cord...

  • Page 44: Specification

    . Specification 6.1 Specification table Product name Operating Table MOT-5602BW Highest 1000 mm (39.37 in) Elevation range Lowest 520 mm (20.47 in) Head up 25° Trendelenburg angle Head down 25° Left down 20° Lateral tilt angle Right down 20° 90° Back plate...
  • Page 45 Note 6: Total of the patient and accessories Note 7: IEC 60601-1, Medical electrical equipment - Part1: General requirements for safety Note 8: Company standard (in case that appropriate maintenance and inspection is done) Note 9: Based on Mizuho's own validation data...

  • Page 46: External View

    6.2 External view 240mm 350mm 570mm 727mm (9.45in) (13.78in) (22.44in) (28.62in) 60° 1,950m (76.77in) 90° 90° 973mm (38.31in) 500mm (19.69in) 1,000mm (39.37in) 520mm (20.47in) 483mm (19.02in)

  • Page 47: Troubleshooting

    . Troubleshooting „ „ Functions of the auxiliary switch • The auxiliary switch should be used only in an emergency. CAUTION • Always watch movement of the operating table when you operate the auxiliary switch. The auxiliary switch has no operational restrictions and may come in contact with other parts or the floor.

  • Page 48: Before Contacting For Repairs

    Slide the center of the tabletop in cannot be operated. beyond the center position. the head direction beyond the center position. ( Page 29) à If the situation does not improve even if the above countermeasures are implemented, request repairs from your distributor or Mizuho.
  • Page 49 „ Warranty MIZUHO Corporation will repair defective parts of this product without charge for one year from the date of delivery/installment except for cases of damage caused by a third party’s repair, act of nature, improper use or intentional damage. All other warranty terms and conditions are subject to regulations of MIZUHO...

  • Page 50: App.-1 Electromagnetic Compatibility

    Normal operation may not be possible due to electromagnetic interference. Guidelines and manufacturer declaration – electromagnetic emissions The MOT-5602BW is intended for use in the electromagnetic environment specified below. The customer or user of the MOT-5602BW must ensure that it is operated in suchlike environments. Electromagnetic Compliance Electromagnetic environment – guideline...
  • Page 51 Guidelines and manufacturer declaration – electromagnetic interference immunity The MOT-5602BW is intended for use in the electromagnetic environment specified below. The customer or user of the MOT-5602BW must ensure that it is operated in suchlike environments. Interference Electromagnetic IEC 60601 test level Compliance level immunity tests environment – guidelines Electrostatic discharge ±...
  • Page 52 AM / FM radio broadcasts and TV broadcasts cannot be accurately and theoretically predicted. In order to confirm the electromagnetic environment caused by the fixed RF transmitter, it is desirable to consider an electromagnetic field survey. If the measured field strength exceeds the compliance level as specified above at the location where the MOT-5602BW is used, the MOT-5602BW should be observed to verify correct functionality. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the MOT-5602BW.

  • Page 53: App.-2 Glossary

    App.-2 Glossary Base The light-blue portion of the figure below. Flex The back plate is bent upward or downward, the seat plate moves to the head-up or the head-down position, and the entire tabletop moves to the "Center up" or "Center down." Lateral tilt Tabletop of the operating table moves to the left-down or the right-down position in the view from the head side.
  • Page 54 Revision Record 2017-10-04 Version 1 New release 2019-05 Version 2 Revision 2021-09-17 Version 3 Revision 2021-09-29 Version 4 Revision...
  • Page 56 Sales Agent Emergo Europe B.V. MIZUHO Corporation Prinsessegracht 20, 2514 AP The Hague, The Netherlands 3-30-13 Hongo, Bunkyo-ku Tokyo 113-0033, Japan https://www.mizuho.co.jp...
