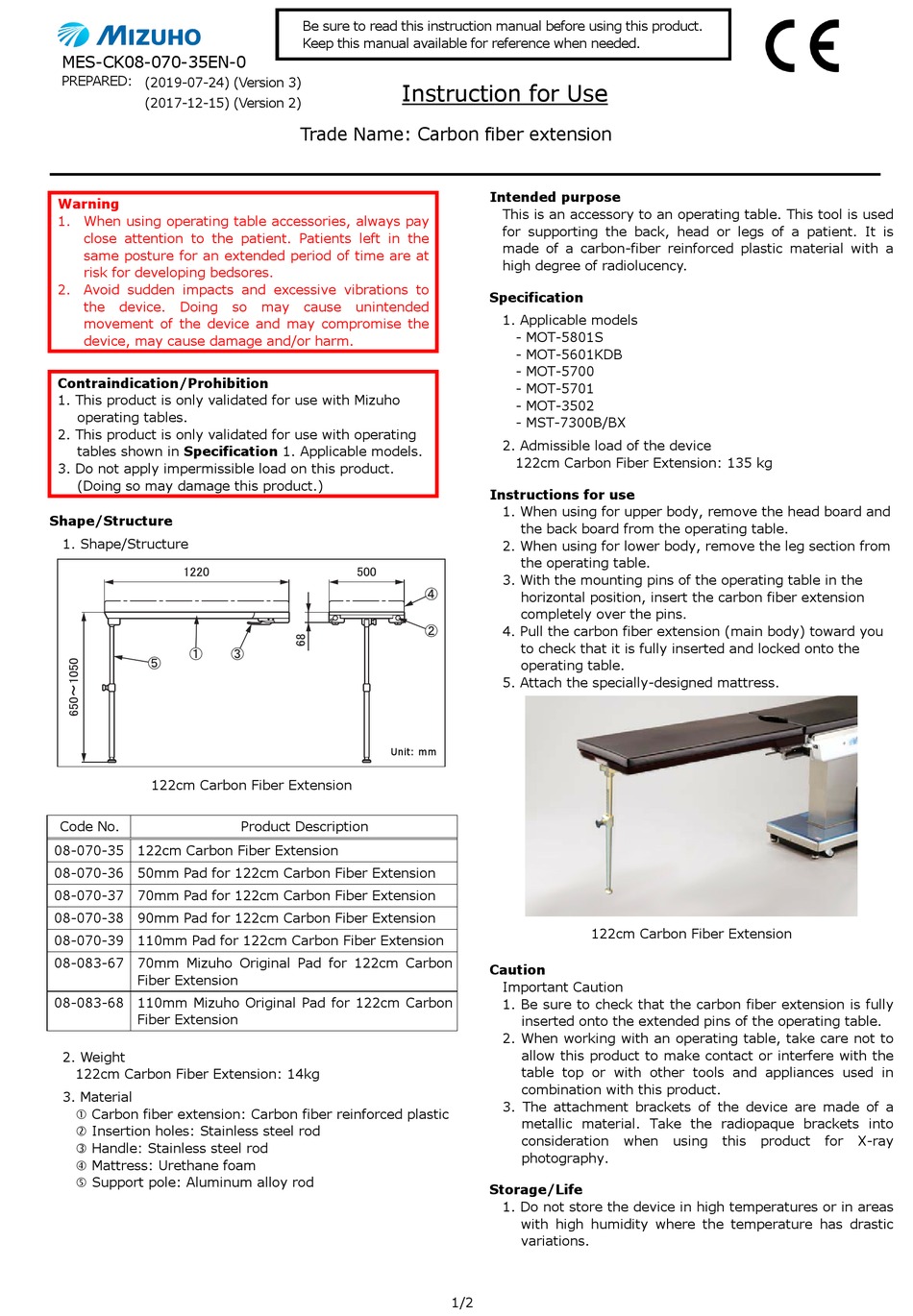

Mizuho MOT-5801S Instructions For Use

MES-CK08-070-35EN-0
PREPARED: (2019-07-24) (Version 3)
(2017-12-15) (Version 2)

Warning

1. When using operating table accessories, always pay
close attention to the patient. Patients left in the
same posture for an extended period of time are at
risk for developing bedsores.
2. Avoid sudden impacts and excessive vibrations to
the device. Doing
movement of the device and may compromise the
device, may cause damage and/or harm.

Contraindication/Prohibition

1. This product is only validated for use with Mizuho
operating tables.
2. This product is only validated for use with operating
tables shown in Specification 1. Applicable models.
3. Do not apply impermissible load on this product.
(Doing so may damage this product.)

Shape/Structure

1. Shape/Structure
122cm Carbon Fiber Extension
Code No.
08-070-35 122cm Carbon Fiber Extension
08-070-36 50mm Pad for 122cm Carbon Fiber Extension
08-070-37 70mm Pad for 122cm Carbon Fiber Extension
08-070-38 90mm Pad for 122cm Carbon Fiber Extension
08-070-39 110mm Pad for 122cm Carbon Fiber Extension
08-083-67 70mm Mizuho Original Pad for 122cm Carbon
Fiber Extension
08-083-68 110mm Mizuho Original Pad for 122cm Carbon
Fiber Extension
2. Weight
122cm Carbon Fiber Extension: 14kg
3. Material
 Carbon fiber extension: Carbon fiber reinforced plastic
 Insertion holes: Stainless steel rod
 Handle: Stainless steel rod
 Mattress: Urethane foam
 Support pole: Aluminum alloy rod
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use
Trade Name: Carbon fiber extension
so may cause unintended
Unit: mm
Product Description

Intended purpose

This is an accessory to an operating table. This tool is used
for supporting the back, head or legs of a patient. It is
made of a carbon-fiber reinforced plastic material with a
high degree of radiolucency.

Specification

1. Applicable models
- MOT-5801S
- MOT-5601KDB
- MOT-5700
- MOT-5701
- MOT-3502
- MST-7300B/BX
2. Admissible load of the device
122cm Carbon Fiber Extension: 135 kg
Instructions for use
1. When using for upper body, remove the head board and
the back board from the operating table.
2. When using for lower body, remove the leg section from
the operating table.
3. With the mounting pins of the operating table in the
horizontal position, insert the carbon fiber extension
completely over the pins.
4. Pull the carbon fiber extension (main body) toward you
to check that it is fully inserted and locked onto the
operating table.
5. Attach the specially-designed mattress.
122cm Carbon Fiber Extension
Caution
Important Caution
1. Be sure to check that the carbon fiber extension is fully
inserted onto the extended pins of the operating table.
2. When working with an operating table, take care not to
allow this product to make contact or interfere with the
table top or with other tools and appliances used in
combination with this product.
3. The attachment brackets of the device are made of a
metallic material. Take the radiopaque brackets into
consideration
photography.

Storage/Life

1. Do not store the device in high temperatures or in areas
with high humidity where the temperature has drastic
variations.
1/2
when using this product for X-ray
