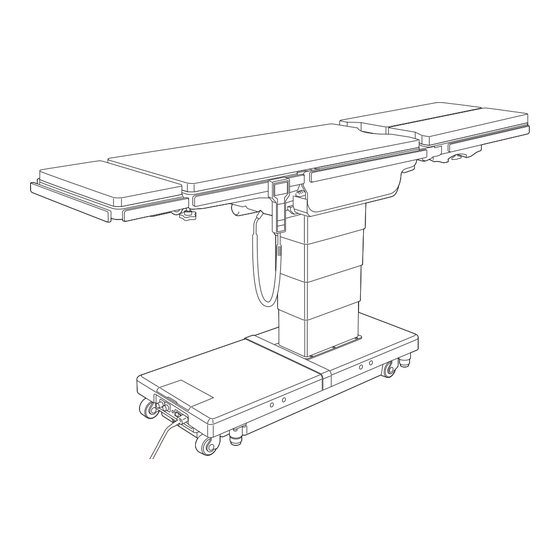

Operating Table MOT-VS700
Operator's Manual
This operating table is designed for medical operations. Using this operating table for any
other purpose other than this intended use may cause serious injury.
The operator and the person in charge of the maintenance of this operating table must read
this operator's manual thoroughly and understand the contents before operating, inspecting,
adjusting and maintaining it.
Keep this manual for reference in a place where is readily accessible.
MES-CK18-700-20EN Ver.5 2023-07-14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOT-VS700 and is the answer not in the manual?

Questions and answers

Related Manuals for Mizuho MOT-VS700

Summary of Contents for Mizuho MOT-VS700

  • Page 1 Operating Table MOT-VS700 Operator’s Manual This operating table is designed for medical operations. Using this operating table for any other purpose other than this intended use may cause serious injury. The operator and the person in charge of the maintenance of this operating table must read this operator's manual thoroughly and understand the contents before operating, inspecting, adjusting and maintaining it.

  • Page 2: Table Of Contents

    Table of contents Introduction ………………………………………………………… 1 This manual ……………………………………………………………………… 1 Intended use and this product ………………………………………………… 1 Operation of this product ……………………………………………………… 2 Accessories ……………………………………………………………………… 2 Safety precaution ………………………………………………… 4 Read thoroughly before using ………………………………………………… 4 Labeling …………………………………………………………………………10 Section Introduction ………………………………………………14 Main unit …………………………………………………………………………14 Hand controller …………………………………………………………………15 Touch screen ……………………………………………………………………17...
  • Page 3 Maintenance and inspection ……………………………………67 Inspection before and after use ………………………………………………67 Periodic replacement parts ……………………………………………………69 Version information of the software ……………………………………………69 LAN connetor ……………………………………………………………………70 Specification ………………………………………………………71 6.1 Specification table ………………………………………………………………71 External view ……………………………………………………………………73 Troubleshooting ……………………………………………………74 Before contacting for repairs ……………………………………77 App.-1 Electromagnetic Compatibility …………………………………80 App.-2 Glossary ……………………………………………………………83...

  • Page 5: Introduction

    . Introduction 1.1 This manual This manual contains information for safely and effectively using this product. Before operating this product, read this manual thoroughly to understand how to operate and inspect the product. Failure to follow these instructions could lead to serious injury. The safety information is categorized as per the following so that the contents of warnings and cautions, and the details of warnings and cautions which are labeled on the product may be comprehended.

  • Page 6: Operation Of This Product

    1.3 Operation of this product The description of the operations written in this manual focuses mainly on those to be done by the hand controller. For some operations operable only by the touch screen, however, those by the touch screen are described.
  • Page 7 „ Optional parts Hand controller charging adapter Foot switch Single Leg Section・Flame-Retardant Double Leg Section・Flame-Retardant and Waterproof Pads (SUSANO Pad) and Waterproof Pads (SUSANO Pad) for Single Leg Section for Double Leg Section Type A Type A for Single Leg Section for Double Leg Section Flame-Retardant and Waterproof Pads (SUSANO Pad) for Back Section...

  • Page 8: Safety Precaution

    . Safety precaution 2.1 Read thoroughly before using In using this product, carefully read the following warnings and cautions, and make sure to observe them. Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority in which the user and/or patient is established.
  • Page 9 (2) Hand controller • Do not forcibly pull the hand controller cord. • Do not subject the hand controller to strong shocks. The hand controller may get damaged. CAUTION • While the reverse mode or the memory mode is set, press as necessary to put it back to the normal mode.
  • Page 10 (6) Installation of the operating table • Do not install the operating table on an uneven floor. WARNING • Do not place a pad under the base for raising the operating Uneven floor table. The operating table may tip over resulting in injury. (7) Battery •...
  • Page 11 „ Patient's position during surgical operation Position the patient's body 10 mm (0.39 in) or more away from the metal side rail. The side rail may produce high temperatures due to the usage of electric scalpels, etc., WARNING which may result in a burn injury. Positioning the patient Follow the steps below to position the patient.
  • Page 12 • Make sure to inspect and maintain the operating table before and after use. The operating table may require replacement of the parts due to significant wear, deterioration, and/or breakage depending on the usage period and frequency of use. • For preventive maintenance and inspections, contact your distributor or Mizuho directly. ● Antistatic measure •...
  • Page 13 4. As with step 3, disinfect the surfaces of the tables and side rails. 5. Wipe off the operating table with a clean dry cloth within 15 minutes after disinfecting it. • Make sure to use Mizuho authorized disinfectants. The disinfectants are as shown below. a) Sodium hypochlorite 0.1% (halogen containing compound) b) Hypo Alcohol (iodine color removing agent) c) Chlorhexidine (chlorhexidine gluconate 0.5%)

  • Page 14: Labeling

    2.2 Labeling The operating table is labeled at the locations shown as below. Before use, make sure to understand the contents of the labels. „ Warning and Caution labels (10) (11) (1)* (2)* Single Leg Section *: Applied on both sides. Fig.
  • Page 15 „ Other labels (1/2) (12) (24) (23) (12) (13)* (22) (14) (18) (19) (20) (21) (25) *: Applied on both sides. Fig. shows MOT-VS700UKI with Double Leg Section (optional) (12) (16) (15) (17) (12) (14) C657310□ (13) C640018 (MOT-VS700UI) C640021 (MOT-VS700UKI) (12) C655001□...
  • Page 16 „ Other labels (2/2) (27) (26) (26) (26) (26) (26) (31) (32) MOT-VS700UI （Fig. with Double Leg Section) (28) (29) (27) (26) (26) (26) (26) (26) (33) (26) MOT-VS700UKI （Fig. with Single Leg Section) (27) (28) (30) (37) (34) Double Leg Section (36) Single Leg Section (35)
  • Page 17 „ Symbol mark for labeling Symbol Description Label no. Indicates a possibility of injury or even death if operates the (1) (2) (4) (5) (6) (7) table without following the warning (8) (9) (10) (11) General prohibition sign (4) (5) General mandatory action sign (4) (5) Emergency stop...

  • Page 18: Section Introduction

    . Section Introduction 3.1 Main unit Table pads Leg section (*1・ 2) Back section attaching/ Seat section detaching lever Kidney bridge (*3) Back section (*2) Head section (*2) Leg section outstretching handle Leg section attaching/ Head section detaching lever flexing lever Head section Side rail fixing handle...

  • Page 19: Hand Controller

    3.2 Hand controller Battery level Bluetooth connection Brake status Status number Menu Display for touch screen Warning for tipping over failure Battery power status Kidney bridge up Current position Hand controller charge PILOT lamp request lamp Menu switch: Enter switch: Set position Display table position Memory switch: Level/Center lamp...
  • Page 20 „ Menu switch is pressed on the hand controller, the screen display will change as the following. When you performing the kidney bridge or the beach chair operation, select the applicable screen with the menu switch. Usual screen Kidney bridge operation screen Current position Reverse orientation screen Beach chair operation screen...

  • Page 21: Touch Screen

    3.3 Touch screen „ TOP PAGE screen BACK-UP CONTROLS screen MEMORY FUNCTION screen Power source Position in operation WIRELESS SETTING screen Memory mode being used Completion of memory position STOP AT LEVEL SETTING screen Language selection Battery indicator CAUTION/WARNING screen „...
  • Page 22 „ MEMORY FUNCTION screen TOP PAGE screen Settings of the position „ STOP AT LEVEL SETTING screen TOP PAGE screen Leg section up/down Trendelenburg Lateral tilt Table up/down Back section up/down Sliding Pause ON/OFF „ WIRELESS SETTING screen TOP PAGE screen IR code Bluetooth address Connect switch...
  • Page 23 „ CAUTION/WARNING screen TOP PAGE screen „ Error screen Go to the previous screen Go to the previous screen NOTE • To prevent damages, the operating table may stop automatically during the operation of the table and a caution/warning screen as shown above appears on the touch screen. For specific recovery procedures after the operating table stopped, refer to Page 75. •...
  • Page 24 • The special error screen as per the above may be displayed. • There might be the touch panel connection error or the internal memory error. • If the operating table is turned off and turned on again, the special error screen is still displayed, contact your distributor or Mizuho for repairs. • The special error screen does not support multiple languages.

  • Page 25: Foot Switch (Optional)

    3.4 Foot switch (optional) Reverse Trendelenburg: Lateral tilt: Table up Head up Right down Table down Trendelenburg: Lateral tilt: Head down Left down...

  • Page 26: Operation

    . Operation 4.1 Installation of the operating table „ Installation space This product requires the installation space shown as below. 2.5 m (98.43 in) or more 2.5 m (98.43 in) 2.5 m (98.43 in) or more or more 2.5 m (98.43 in) or more •...

  • Page 27: Attaching/Detaching The Hand Controller

    4.2 Attaching/Detaching the hand controller „ Attaching the hand controller Align the connector with the guide and insert it into the receptacle properly. Insert the connector „ Detaching the hand controller Turn the connector ring in the direction of the arrow until it stops.
  • Page 28 „ Using the hand controller wirelessly NOTE • While being used wirelessly, The hand controller can be detached from the main unit and used wirelessly. the hand controller works “Infrared mode” and “Bluetooth mode” are available for wireless on the internal battery. The communication.
  • Page 29 Charging NOTE The hand controller cannot be used wirelessly when the battery level The battery of the hand is low. If the hand controller charge request lamp at the upper right of controller can be recharged the hand controller flashes, connect the hand controller with the cord only when the battery is and immediately charge the hand controller.
  • Page 30 Using with the infrared mode • The operating table does not function if the IR code displayed on the touch screen does not match with CAUTION that on the monitor screen of the hand controller. • When there are plural operating tables in one room, using the same IR code for them possibly causes cross talk resulting in malfunction.
  • Page 31 Press to match the IR code displayed on the touch NOTE screen with that on the monitor screen of the hand controller. • The default IR code is "7". • The IR code can be selected from 0 to 7. Press The IR code of the hand controller is changed.
  • Page 32 Using with the Bluetooth mode ● Bluetooth wireless operation • This function operates through the communication via Bluetooth. Do not use this CAUTION function if your facility’s rule bans wireless communication. • Do not use the wireless communications if there are concerns that the medical devices will be affected by the effects of the radio waves when they are simultaneously being used. Other medical devices might be affected by the radio wave interference, etc., by the use of the wireless communications.
  • Page 33 Press The Bluetooth setting screen appears. Press to turn "BT Mode" to "ON". NOTE For how to detach the hand Press controller connector, refer to Page 24. Press NOTE Detach the hand controller connector from the hand If no operation is done on the controller.
  • Page 34 „ Precautions on replacement of the hand controller Before using a new hand controller, be sure to default the Bluetooth address of the operating table by following the procedure below. Attach the new hand controller to the operating table and turn on the power.
  • Page 35 If "SUCCESS" appeared and the address changed, replacement has completed. If "FAILURE" appeared, connection has failed. The battery of the hand controller may be discharged. Charge the battery and retry the connection.
  • Page 36 „ <Important> Using the hand controller with other operating table (MOT-VS700) When using the current hand controller with other MOT-VS700, be sure to cancel the Bluetooth connection information (paring) by following the procedure below. Cancelling the connection information Turn "BT" to ON and tap "CLEAR", then wait for 12 seconds.

  • Page 37: Turning On/Off The Power

    • Connect the product to the power source provided with the protective grounding to prevent the risk of an electrical shock. CAUTION • Make sure to use the dedicated power cord with the "MIZUHO" logo. • Before inserting the power cord into the power connector, check that the power connector does not have any fluid in it nor is dusty.
  • Page 38 Turning off the power Turn off the power switch on the base. NOTE If the power switch on the The power switch (green) lights off, and disappears on the monitor base is turned off or the screen of the hand controller. power cord is disconnected, OFF(〇) the battery mode (Page 35) is activated. Press on the hand controller. The touch screen and monitor screen light off.
  • Page 39 „ When the battery is used NOTE When also being used Turning on the power wirelessly, turn on the power by pressing . However, When the power cord is not connected to the power if one day elapses with connector and the power switch on the base is turned off, the operating table power press on the hand controller or the start switch on the...
  • Page 40 Turning off the power Press on the hand controller when the power cord is disconnected to the power connector or the power switch on the base is turned off. The touch screen and monitor screen light off. OFF(◯)

  • Page 41: Charging The Battery

    • The operating table battery replacement time is about 5 years. Once it reaches its replacement time, request your distributor or Mizuho While charging, appears on the monitor screen of the hand controller. for a battery replacement. • The life-span for the battery disappears and changes to , the charging is completed.

  • Page 42: Operating The Emergency Stop Switch

    4.5 Operating the emergency stop switch In an emergency, you can stop the operating table from moving by pressing the emergency stop switch. The emergency stop switch must be used only in an emergency. WARNING „ Operating in an emergency Press the emergency stop switch.

  • Page 43: Fixing And Unfixing The Operating Table

    4.6 Fixing and unfixing the operating table „ Fixing the operating table To operate the operating table, activate the brake to fix the operating table. • After activating the brake, check that the operating table is fixed securely. WARNING • If the operation needs to be halted, press the emergency stop switch. Press first and then NOTE The brake is activated to fix the operating table. The brake lamp on • Operations such as raising the base turns green, and appears on the monitor screen.

  • Page 44: Trendelenburg

    4.7 Trendelenburg When you operate the Trendelenburg operation with a patient on the operating table, make sure to use the fixing accessory for the Mizuho operating table. WARNING The patient may fall from the operating table. • Do not operate until the tip of the head section Head section contacts the floor. It may get damaged. CAUTION fixing handle •...

  • Page 45: Tilting The Tabletop Laterally

    4.8 Tilting the tabletop laterally When you tilt the tabletop laterally with a patient on the operating table, make sure to use the fixing accessory for the Mizuho operating table. WARNING The patient may fall from the operating table. NOTE „ Tilting to the left • The maximum angle achieved in the left down position is 35°...

  • Page 46: Back Section Up/Down

    4.9 Back section up/down Keep your hands away from the following gaps during the operation of the table. Otherwise you may get injured. WARNING • Gap between the back section and seat section • Gap between the back section gear and rack Back section gear Back section Rack...

  • Page 47: Changing The Tabletop Height

    4.10 Changing the tabletop height Leg section Do not move down the tabletop with the leg section bent down at 90°. CAUTION The tip of the leg section may come in contact with the floor or the base and get damaged. „ Moving up the tabletop NOTE The maximum height from Press...

  • Page 48: Sliding The Tabletop

    4.11 Sliding the tabletop Keep your hands away from the gap of the frame during the operation of the table. WARNING Otherwise you may get injured. NOTE „ Sliding in the foot direction • The slide's maximum travel from the center position of Press first and then the tabletop is as follows.

  • Page 49: Leg Section Up/Down

    4.12 Leg section up/down • Do not operate the reverse Trendelenburg with the leg section down. The tip of the leg section may come in contact with the base and get damaged. CAUTION • Do not move down the tabletop with the leg section bent down. The tip of the leg section may come in contact with the base and get damaged.

  • Page 50: Flexing Or Reflexing The Tabletop

    4.13 Flexing or reflexing the tabletop Keep your hands away from the following gaps during the operation of the table. Otherwise you may get injured. WARNING • Gap between the back section and seat section • Gap between the back section gear and rack Back section gear Back section Rack...

  • Page 51: Change Height Of The Kidney Bridge (Mot-Vs700Uki Only)

    4.14 Change height of the kidney bridge (MOT-VS700UKI only) „ Moving up the kidney bridge NOTE • The highest position is Press first and then select "KIDNEY". 150 mm (5.91 in) from the surface of the tabletop. Press first and then • The lowest position is the same level of the surface of The kidney bridge moves up.

  • Page 52: Beach Chair

    4.15 Beach chair Keep your hands away from the following gap during the operation of the table. Otherwise you may get injured. WARNING • Gap between the back section and seat section Back section Seat section „ Beach chair Press first and then select "BEACH CHAIR".

  • Page 53: Operating/Registering Memory

    4.16 Operating/Registering memory By registering an arbitrary position of the operating table into the memory, the operating table can reproduce the registered position easily. „ Registering a position of the tabletop NOTE In the wireless (infrared Registering with the hand controller mode), no memory can be registered.
  • Page 54 Registering with the touch screen Put the tabletop to a position you wish to register. Tap "MEMORY SELECT" several times until the memory number in which you wish to register appears. If the memory number you wish to register appeared, tap "SET".
  • Page 55 „ Reproducing a registered position NOTE In the reverse mode, no Reproducing with the hand controller memory can be operated. Press several times until a memory in which you wish NOTE to use appears. To close the memory mode, press Memory position 1 Memory position 2 Memory position 3...
  • Page 56 Repeat step 3 until all the function switches lit off. When the tabletop is moved to the target position, the number of "MEMORY POSITION" turns blue. Reproducing with the touch screen Tap "MEMORY SELECT" several times until a memory in NOTE which you wish to use appears. Tapping "MEMORY MODE The memory guides are displayed on the function switches that are OFF"...

  • Page 57: Reverse Mode

    4.17 Reverse mode When a patient is placed in a reverse head-to-foot orientation, the reverse mode allows the operation with reference to the patient head. The weight capacity in reverse mode is 135 kg (300 lbs). If the patient whose weight exceeds 135 kg (300 lbs) is placed on the operating table, then it may tip over, and the WARNING patient may thereby get injured.
  • Page 58 Press The reverse mode turns to ON and a green frame appears. The direction of Trendelenburg, lateral tilting and sliding turns the other way around, and the values for the back section and the head section are switched with each other. The operation changes to that with the patient head placed on the leg section.

  • Page 59: Return To Level

    4.18 Return to level „ Return the tabletop to the level position NOTE Elevation, sliding, and braking Press first and then do not function. The tabletop from the Trendelenburg, lateral tilting, back section up/ down, flexing, leg section up/down, beach chair, and kidney bridge lifting position (MOT-VS700UKI only) will return to the level position.

  • Page 60: Setting The Pause Functions At The Level And Center Positions

    4.19 Setting the pause functions at the level and center positions With the default setting, the operating table pauses once at the level and center positions if the table is moved toward an opposite direction. You can set whether the operating table pauses or not at the level and center positions.

  • Page 61: Adjusting The Head Section

    4.20 Adjusting the head section The head section can be bent in 15° increments, to 4 different positions upward (maximum 60°) and to 6 different positions downward (maximum 90°). The head section can also be detached. The head section weighs 6 kg (13.2 lbs). Pay special attention when handling it. It may drop and cause damage or injury. WARNING „ Head section up/down Pull the head section flexing lever toward the head direction. The head section can be bent upward and NOTE downward.
  • Page 62 „ Attaching the head section Make sure to tighten the head section fixing handles securely. If the head section moves with the handles WARNING in a loosened state, the patient may get injured. • Make sure to insert the head section into the back section or the Single Leg Section completely. If CAUTION the operating table is used with the head section inserted incompletely, it may get damaged.

  • Page 63: Attaching/Detaching The Back Section

    4.21 Attaching/Detaching the back section The back section can be detached. The back section weighs 8 kg (17.6 lbs). Pay special attention when handling it. It may drop and cause damage or injury. WARNING „ Detaching the back section Do not detach the back section while the head section is inserted into it.
  • Page 64 „ Attaching the back section NOTE You can install the optional Make sure that the back section is inserted completely. dedicated accessories to If the operating table is used without the back section WARNING the back section insertion being completely inserted into it, the patient may get shafts.
  • Page 65 „ Attaching the back section If the back section insertion shaft’s right and left positions are misaligned, attach the back section according to the following procedures. NOTE Make sure that the back section is inserted You can install the optional completely.

  • Page 66: Adjusting The Double Leg Section (Optional)

    4.22 Adjusting the Double Leg Section (optional) The Double Leg Section can be outward stretched and detached. The Double Leg Section weighs 8.5 kg (19 lbs)(each). Pay special attention when handling it. WARNING It may drop and cause damage or injury. „...
  • Page 67 Move the leg sections manually to a desired position. First joint Center of the 42° 42° first joint Second joint 42° 42° Center of the second joint Turn the leg section outstretching handle located on the lower side of the leg section in the direction of the arrow, and fix the leg section.
  • Page 68 „ Detaching the leg section Hold the leg section firmly and pull the leg section out with pulling the leg section attaching/detaching lever. Leg section attaching/detaching lever „ Attaching the leg section After attaching the leg section, check that the leg section is inserted completely by shaking the leg section back and forth. If the operating table is used without the leg section being WARNING completely inserted into it, the patient may get injured by the leg section being moved.

  • Page 69: Attaching/Detaching The Single Leg Section (Optional)

    4.23 Attaching/Detaching the Single Leg Section (optional) The Single Leg Section can be detached. The Single Leg Section weighs 10 kg (22 lbs). Pay special attention when handling it. It may drop and cause damage or injury. WARNING „ Detaching the leg section Pull up the leg section attaching/detaching levers on both sides of the lower side of the leg section at the same time.
  • Page 70 „ Attaching the leg section NOTE You can install the optional Make sure that the leg section is inserted completely. dedicated accessories to If the operating table is used without the leg section WARNING the leg section insertion being completely inserted into it, the patient may get holes.

  • Page 71: Maintenance And Inspection

    Mizuho for repairs. Otherwise it may cause WARNING problems during surgery. Inspect the items below. If there is any problem, request your distributor or Mizuho for repair. (1) Table pads Before use • Check all the table pads for any damage.
  • Page 72 (3) Tabletops Before use • Check all the tabletops for any damage. After use • Check all the tabletops for any damage or dirt. (4) Hand controller Before use • Press the switches on the hand controller to see if all functions are working properly. (5) Oil leakage Before and after use •...

  • Page 73: Periodic Replacement Parts

    5.2 Periodic replacement parts Mizuho specifies that the following parts need to be periodically replaced for safety use. The replacement time is a rough standard. Earlier replacement may be required depending on the usage condition and/or usage frequency. Request your distributor or Mizuho for replacements. Hand controller (Rechargeable battery) PLC (internal) Battery (internal)

  • Page 74: Lan Connetor

    The operating table does not support connections with any genenal external devices or systems. Connections with devices or systems other than those allowed by Mizuho are not guaranteed to work. When you desire to connect with external devices or network, please contact your distributor or Mizuho.

  • Page 75: Specification

    . Specification 6.1 Specification table Product description MOT-VS700UI MOT-VS700UKI Highest 1000 mm (39.37 in) ± 10 mm (0.39 in) Elevation range Lowest 520 mm (20.47 in) ± 10 mm (0.39 in) Head up 30° ± 2° Trendelenburg angle Head down 40° ± 2° Left down 35°...
  • Page 76 Note 6: Rough dimension Note 7: Company standard (in case that appropriate maintenance and inspection is done) Note 8: Based on Mizuho's own validation data Note 9: IEC 60601-1, Medical electrical equipment - Part1: General requirements for basic safety and essential...

  • Page 77: External View

    6.2 External view MOT-VS700UKI Unit : mm(in) With Double Leg Section With Single Leg Section (26.89) (24.96) (18.27) (9.45) (23.03) (18.27) (9.45) (24.96) 2005 2124 (78.94) (83.62) MOT-VS700UI With Double Leg Section With Single Leg Section (26.89) (24.96) (18.27) (9.45) (23.03) (24.96) (18.27)

  • Page 78: Troubleshooting

    . Troubleshooting „ When the brake cannot be released • Do not operate the emergency brake release knob with a patient on the operating table. The operating table may tip over resulting in injury. WARNING • Do not operate the operating table via operating the touch panel when the emergency brake release knob is in the UNLOCK state.
  • Page 79 The AC power has broken down. Request repairs from your 06. Power Supply Failure distributor or Mizuho. 07. Internal Fuse Blown The fuse has blown out. Request repairs from your distributor or Mizuho. 08. Emergency Stop Switch The emergency stop switch is pressed. Before resetting the Activated emergency switch, ensure the safety of the patient and staff members.
  • Page 80 Possible causes and measures The sensor for Trendelenburg and lateral tilt has any abnormality. 25. Sensor Error (Tilt and Trend) Request repairs from your distributor or Mizuho. The sensor for the back section has any abnormality. Request repairs 27. Sensor Error (Back Section) from your distributor or Mizuho.

  • Page 81: Before Contacting For Repairs

    . Before contacting for repairs „ Checking causes and countermeasures The following problems can occur even if the operating table is not malfunctioning. Check the following points before requesting repairs. Status Possible cause Measures The table cannot be The connector of the hand controller is Insert the connector completely.
  • Page 82 Mizuho „ In case of malfunction • The operating table should only be serviced or maintained by Mizuho or the certified providers. Make sure to contact your distributor or Mizuho for maintenance or repairs. WARNING • Do not disassemble the operating table. Unauthorized disassembling may cause a fire, electrical shock or malfunction. • In order to prevent infections, make sure to clean and disinfect the operating table when requesting to have it repaired.
  • Page 83 „ Warranty MIZUHO Corporation will repair defective parts of this product without charge for one year from the date of delivery/installment except for cases of damage caused by a third party’s repair, act of nature, improper use or intentional damage. All other warranty terms and conditions are subject to regulations of MIZUHO...

  • Page 84: App.-1 Electromagnetic Compatibility

    App.-1 Electromagnetic Compatibility Install and operate according to the EMC information provided in this manual. • Do not use any accessories other than those specified by Mizuho. This can result in increased emissions and reduced immunity. WARNING • Do not use it adjacent to or stacked with other equipment. Normal operation may not be possible due to electromagnetic interference.
  • Page 85 Guidelines and manufacturer declaration – electromagnetic interference immunity The MOT-VS700UI/MOT-VS700UKI is intended for use in the electromagnetic environment specified below. The customer or user of the MOT-VS700UI/MOT-VS700UKI must ensure that it is operated in suchlike environments. Interference Electromagnetic IEC 60601 test level Compliance level immunity tests environment – guidelines Electrostatic discharge ±...
  • Page 86 Guidelines and manufacturer declaration – electromagnetic interference immunity (continuation) Conducted disturbances 150 kHz to 80 MHz 150 kHz to 80 MHz Portable and mobile RF induced by radiated RF communications equipment IEC 61000-4-6 (radio devices, incl. antennas or ISM frequencies ISM frequencies cables) should be used no closer to any part of the MOT-VS700UI/...

  • Page 87: App.-2 Glossary

    App.-2 Glossary Base The light-blue portion of the figure below. Flex/Reflex The back section is bent upward or downward, the seat section moves to the head-up or the head-down position, and the entire tabletop moves to the "Center up" or "Center down." Lateral tilt Tabletop of the operating table moves to the left-down or the right-down position in the view from the head side.
  • Page 88 Revision Record 2020-05-11 Ver.1 New release 2020-06-30 Ver.2 Revision 2020-11-05 Ver.3 Revision 2022-03-16 Ver.4 Revision 2023-07-14 Ver.5 Revision...
  • Page 90 Sales Agent EMERGO EUROPE MIZUHO Corporation Westervoortsedijk 60 6827 AT Arnhem, The Netherlands 3-30-13 Hongo, Bunkyo-ku Tokyo 113-0033, Japan https://www.mizuho.co.jp...

Table of Contents
